Fuel Temperature Sensor: Service and Repair






Fuel Temperature Sensor

Removal
1 Disconnect the battery ground cable. For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
2 Remove the engine cover. For additional information, refer to Engine Cover - 4.2L, Vehicles Without: Supercharger Engine Cover




3
WARNING: The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
CAUTION: Always plug any open connections to prevent contamination.

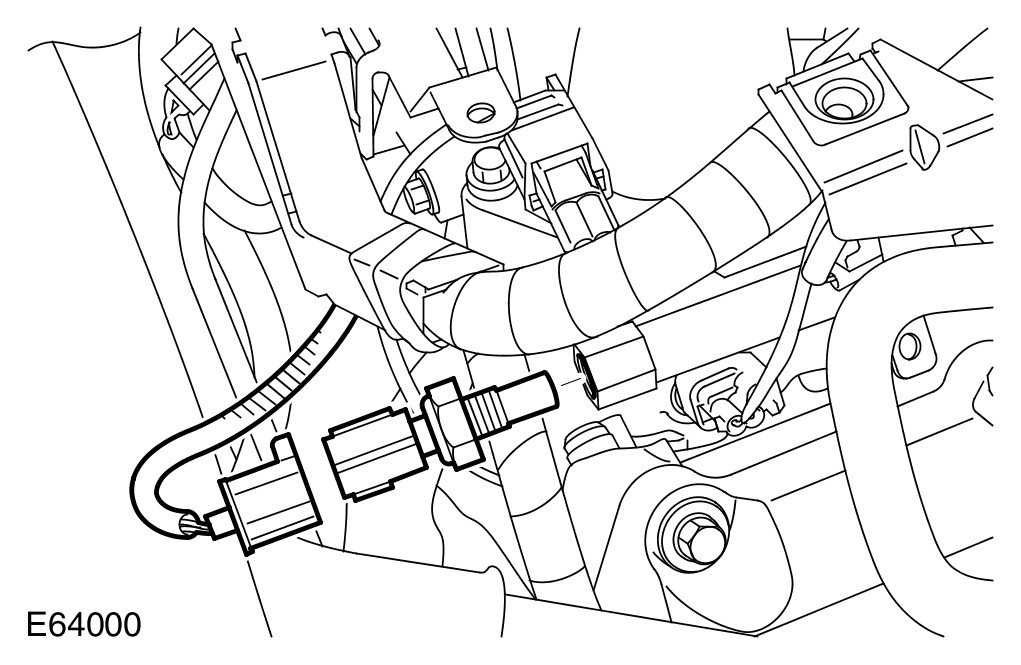

Remove the fuel temperature sensor.
- Disconnect the electrical connector.
- Position an absorbent cloth to collect fluid spillage.

Installation





1
WARNING: After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow this instruction may result in personal injury.
Install is the reverse of removal.
- Tighten to 7 Nm.
- Clean the components.
