Suspension Control ( Automatic - Electronic Level )

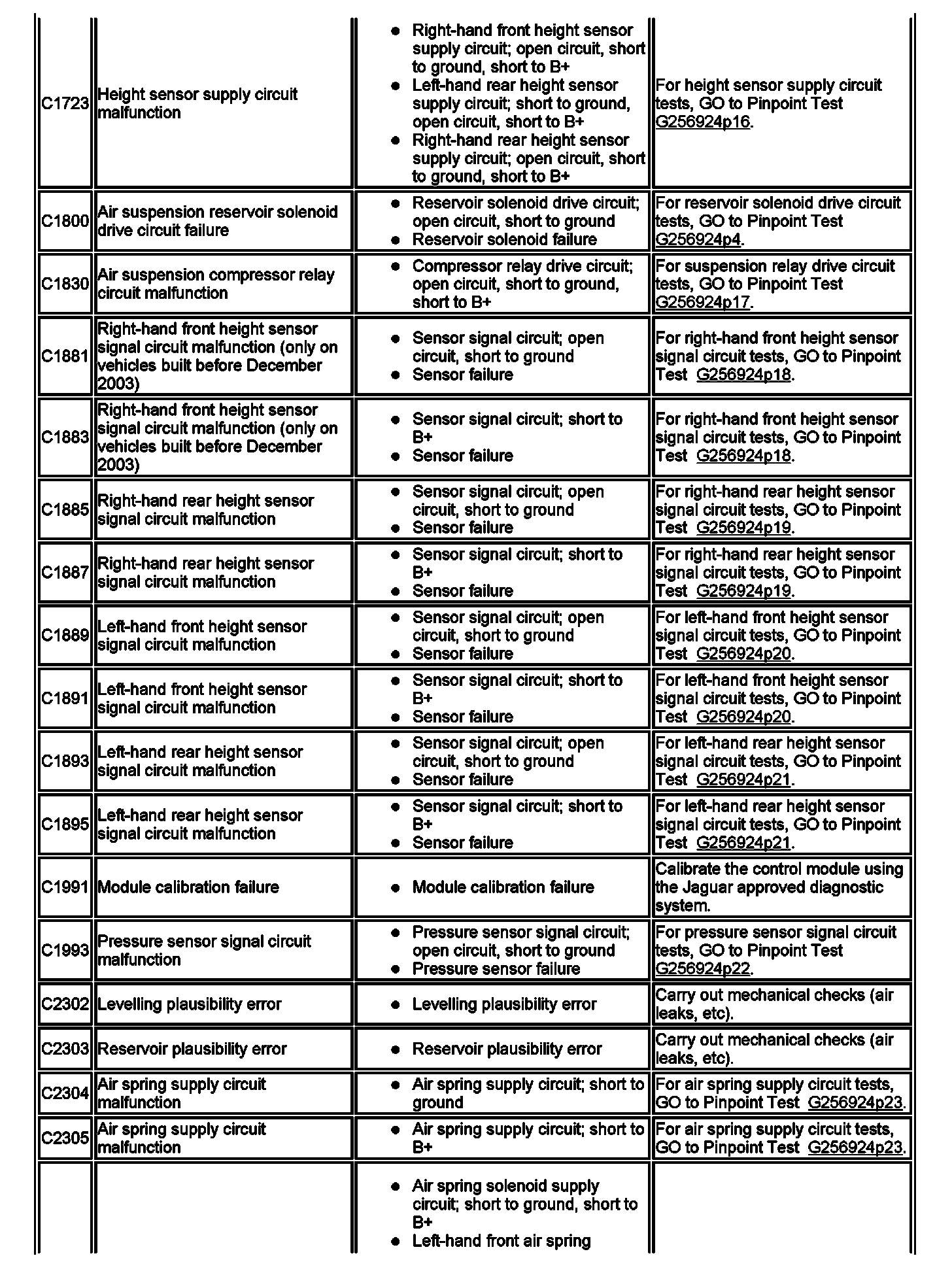

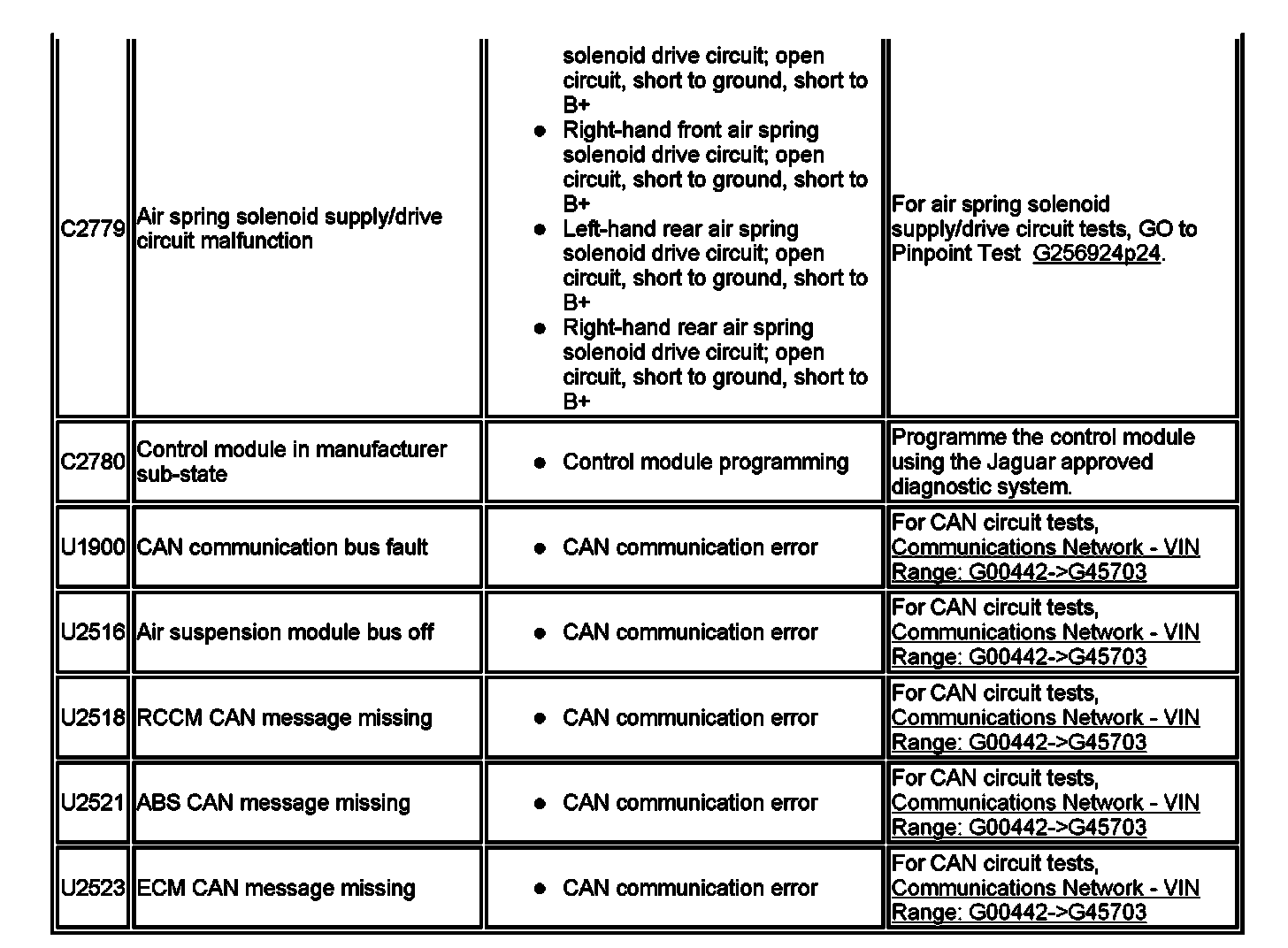

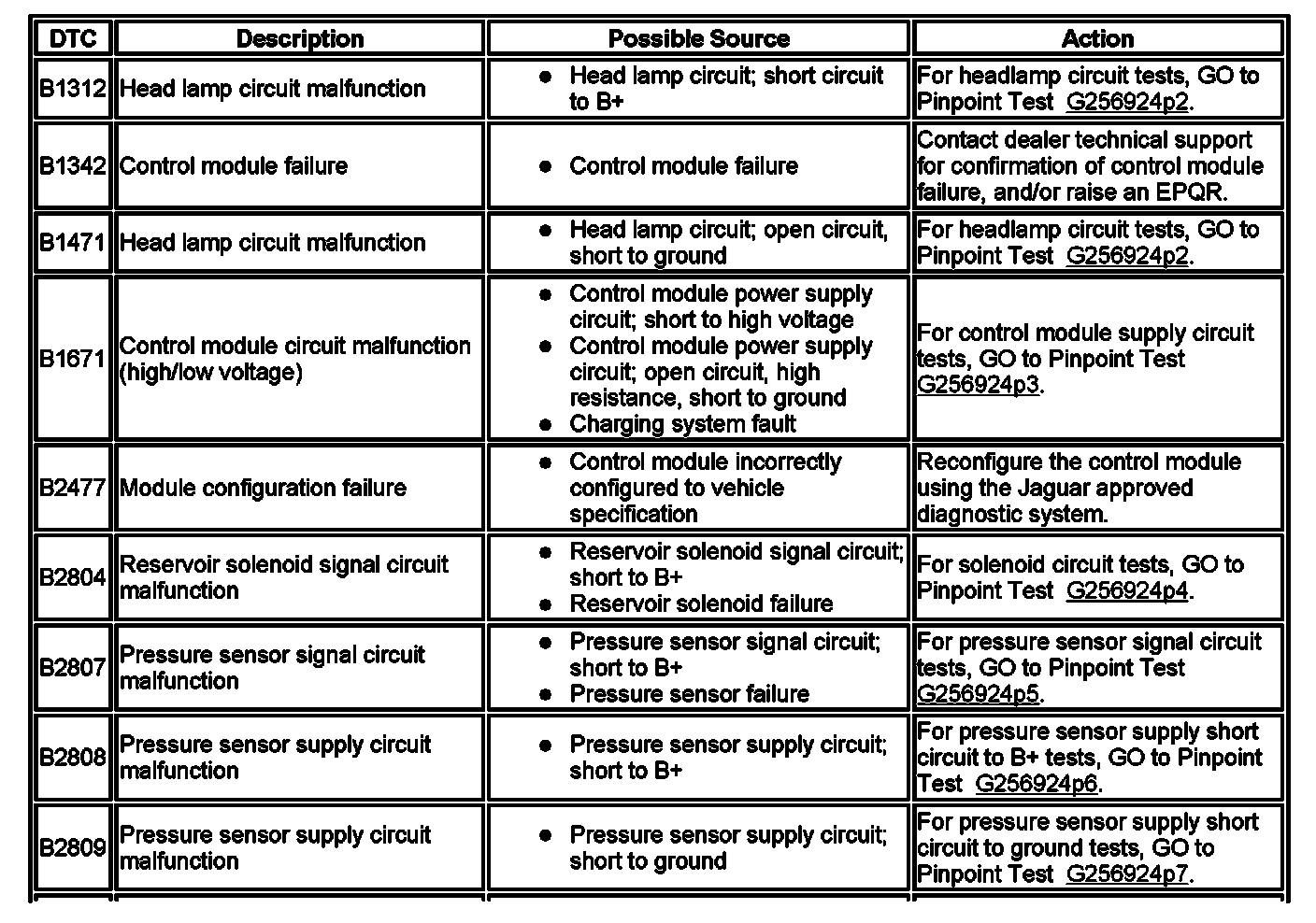

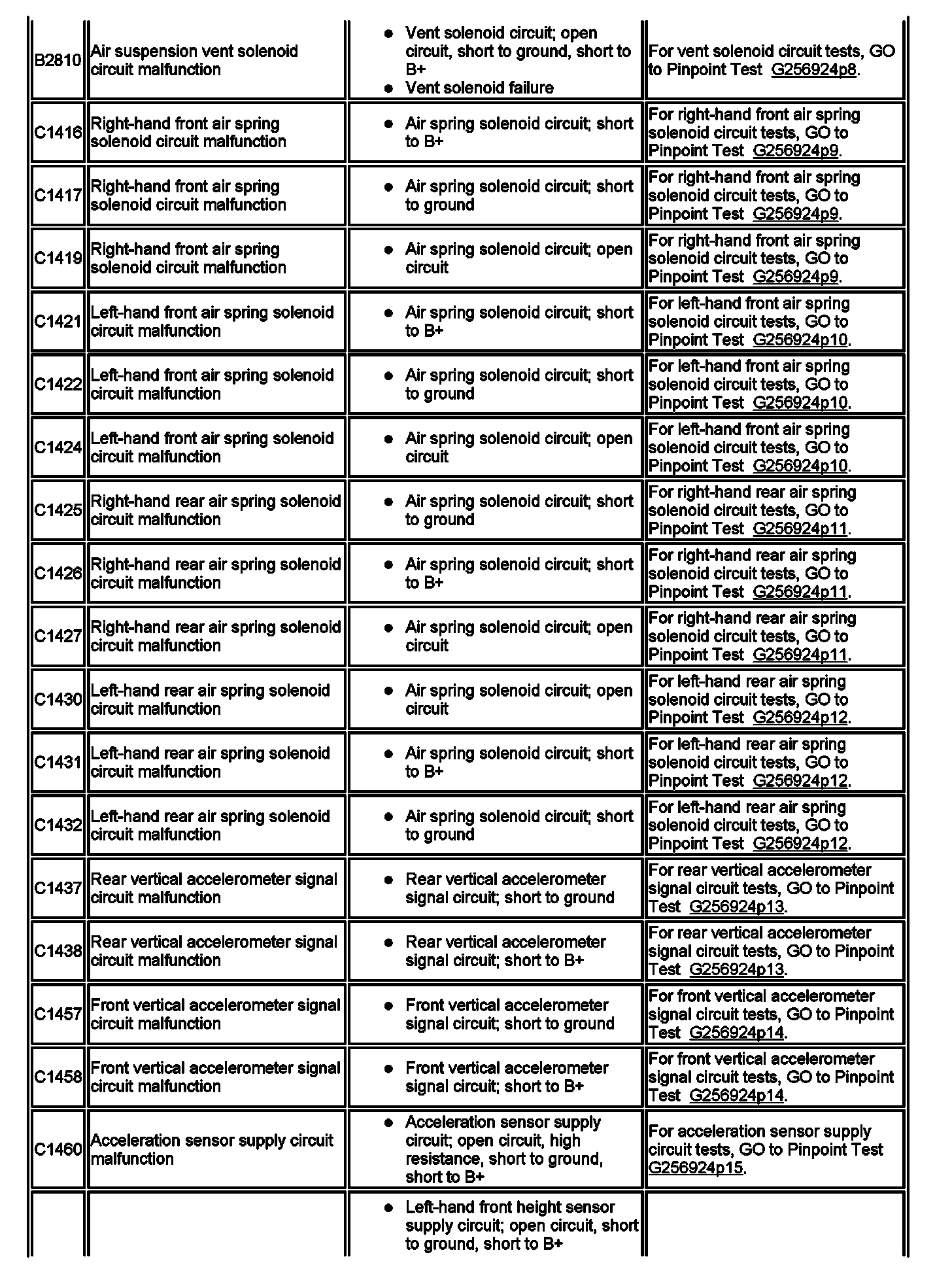

Diagnostic Trouble Code (DTC) index














CAUTION: When probing connectors to take measurements in the course of the pinpoint tests, use the adapter kit, part number 3548-1358-00.

NOTE: When performing electrical voltage or resistance tests, always use a digital multimeter (DMM) accurate to 3 decimal places, and with an up-to-date calibration certificate. When testing resistance, always take the resistance of the DMM leads into account.

NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
