Control Module Pin Identification

Engine Control Module:

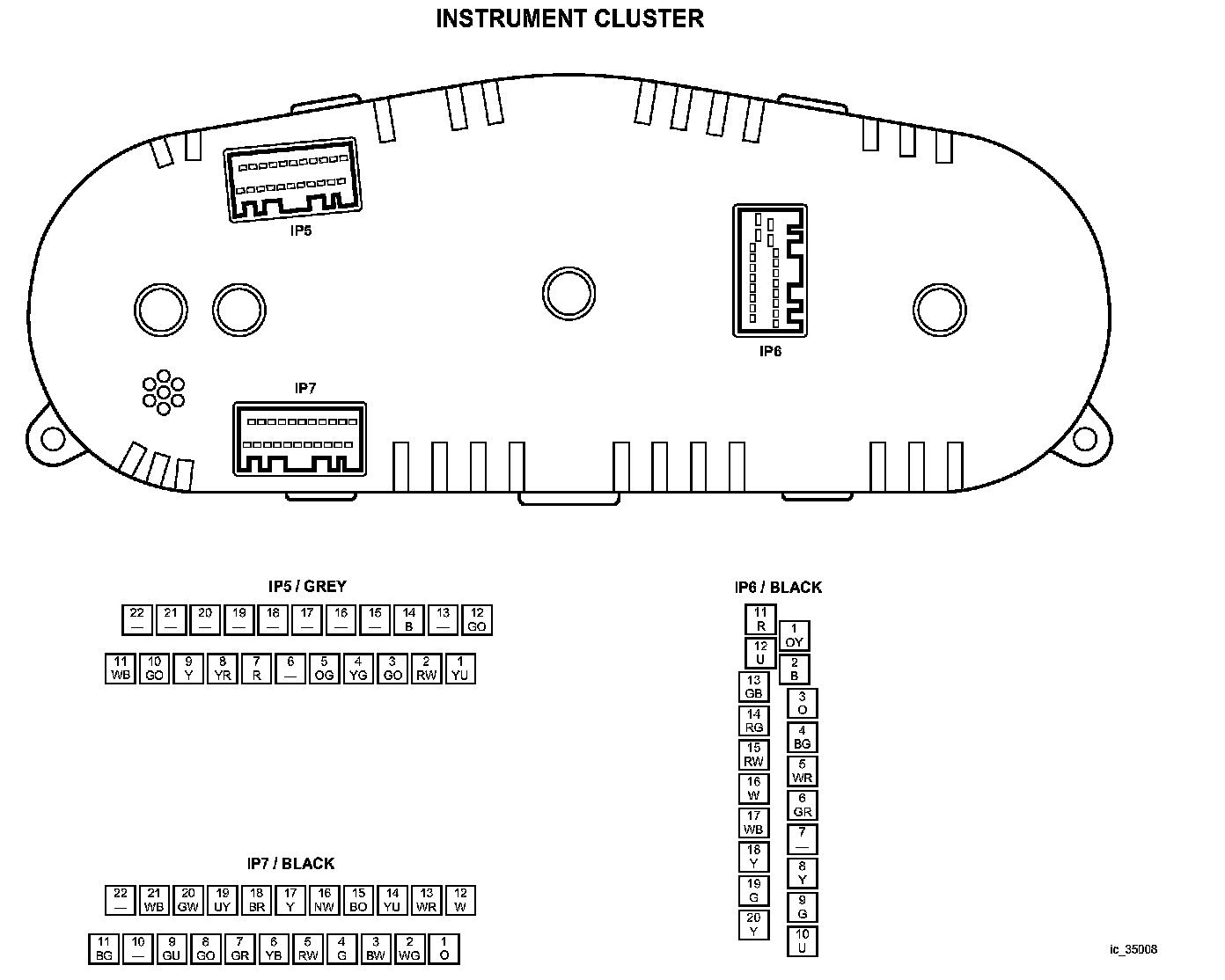

Instrument Cluster:

Front Electronic Module:

Rear Electronic Module:

Dynamic Stability Control Module:

Parking Aid Module:

Electronic Parking Brake Module:

Air Suspension Module:

TPMS Module:

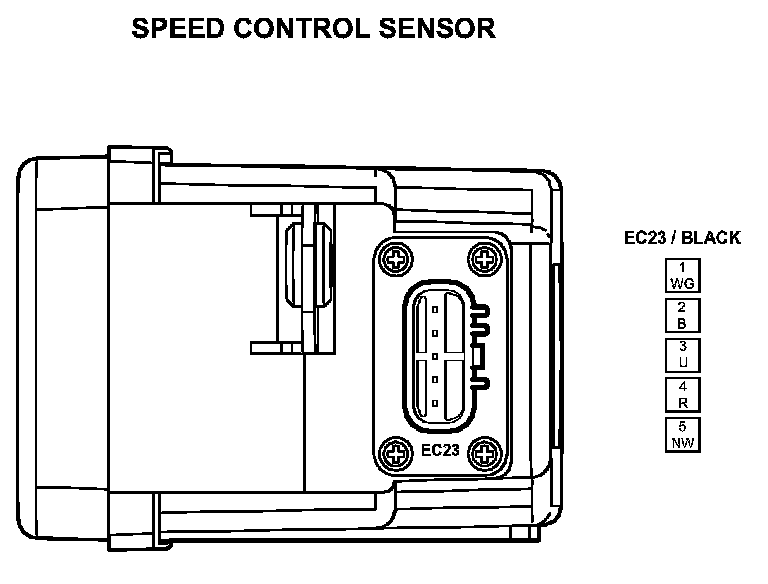

Speed Control Sensor:

Speed Control Module:

Climate Control Module:

Rear Climate Control Module:

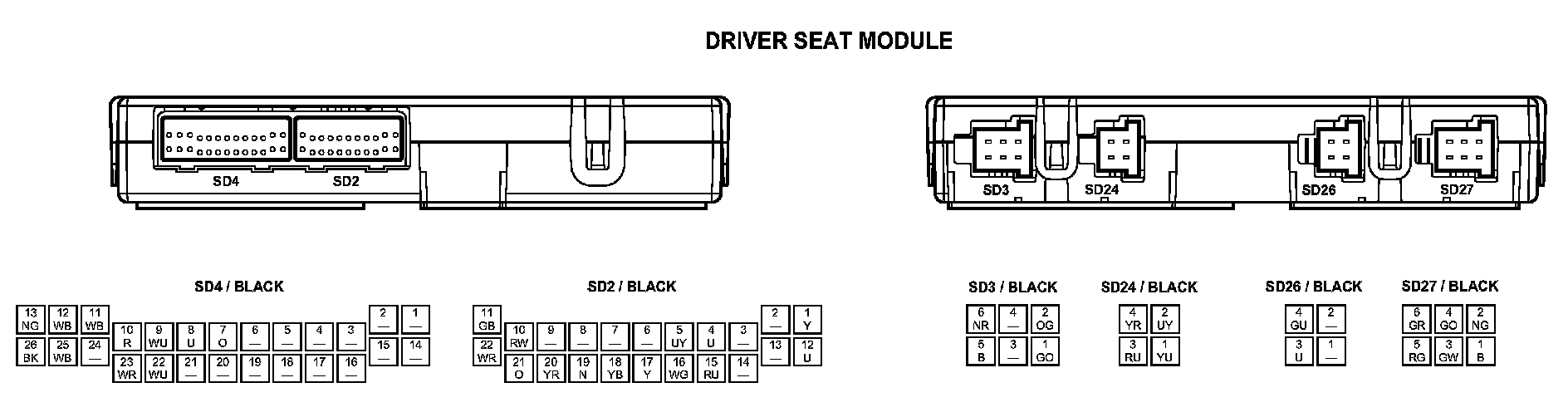

Driver Seat Module:

Driver Door Module:

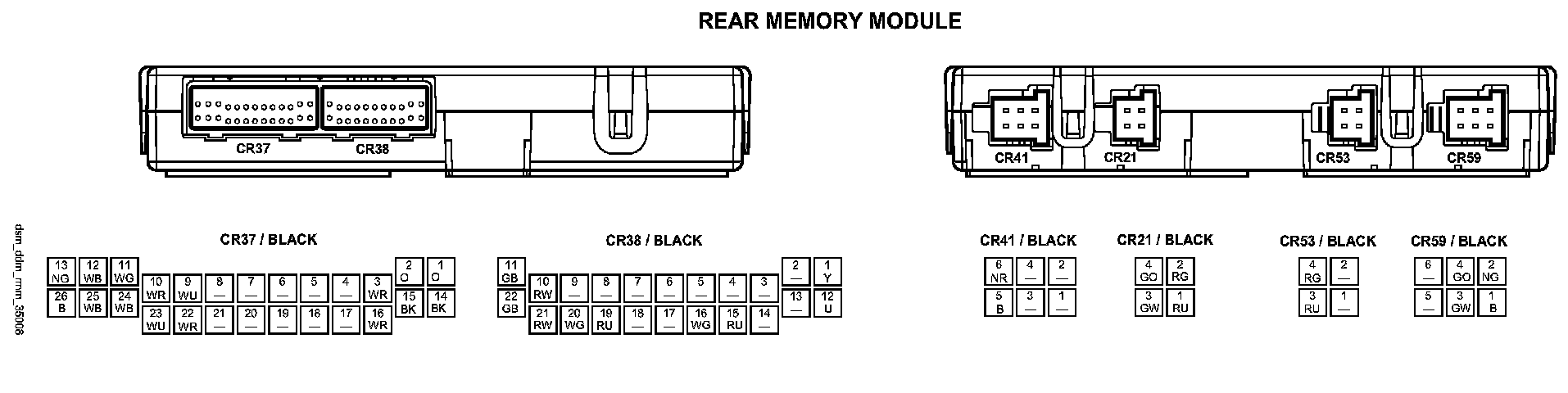

Rear Memory Module:

Climate-controlled Seat Module:

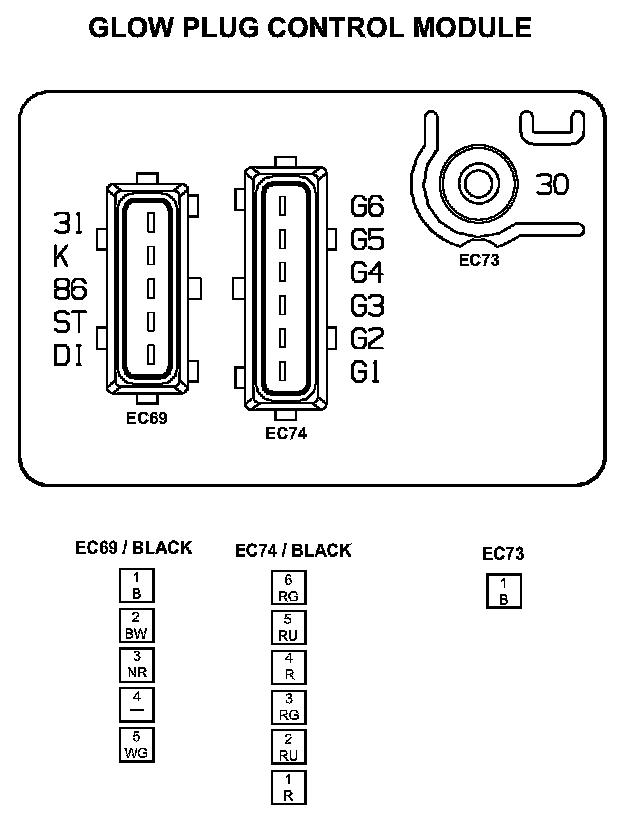

Glow Plug Control Module:

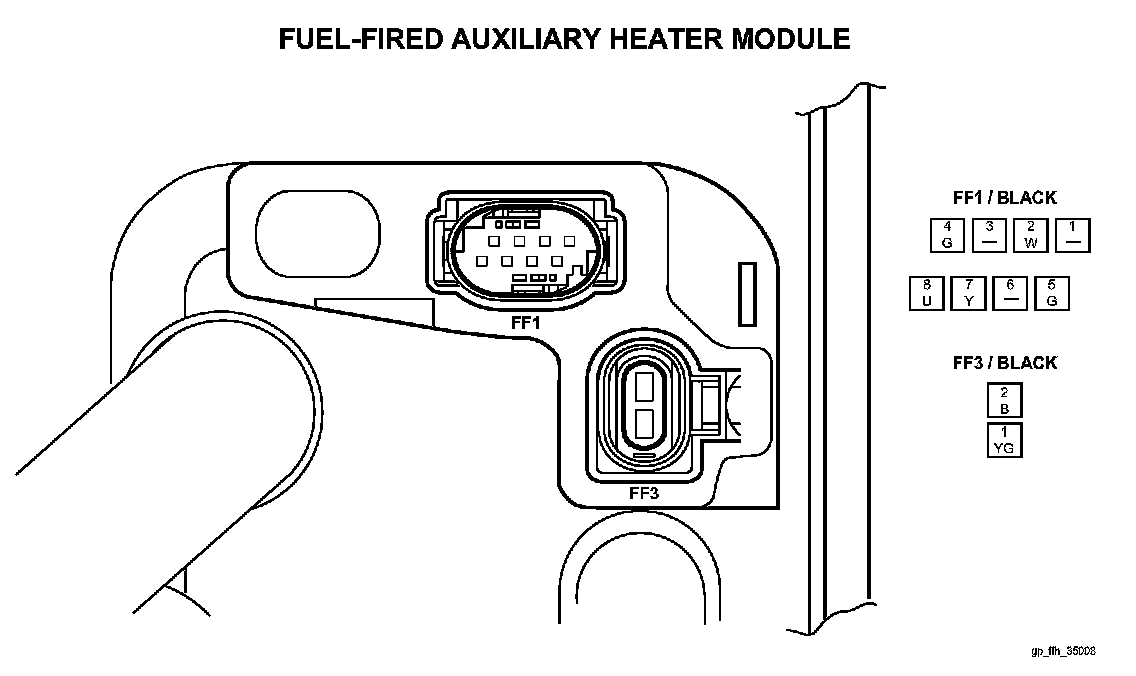

Fuel-Fired Auxiliary Heater Module:
