Procedures

Rear Door Quarter Window Blind

Removal

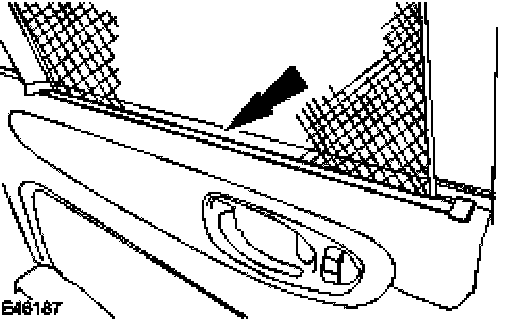

1. Remove the rear door quarter window blind lower seal.







2. Remove the rear door window blind finisher trim.







3. Remove the rear door trim panel.

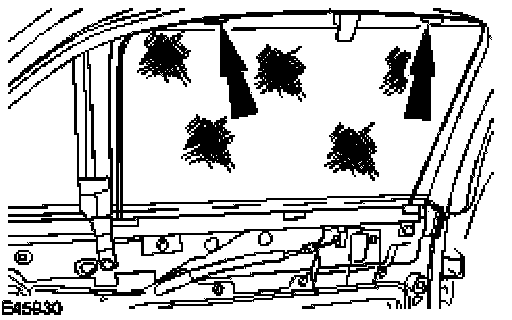

4. Open the Rear door window blind.

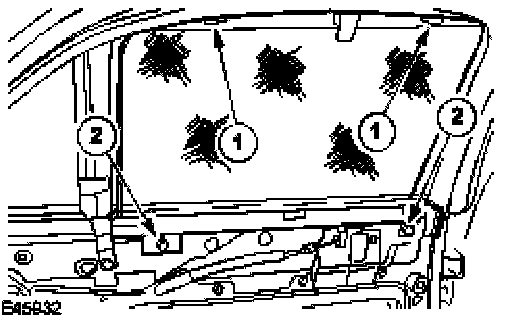

5. Remove the rear door window blind.
- Release the blind.
- Remove the retaining screws.
- Remove the rear door window blind.

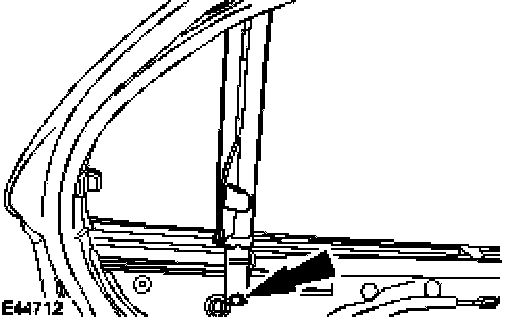

6. Remove the rear door quarter window blind retaining screw.
- The rear door quarter window blind must be detached from the rear door as shown. Failure to follow this instruction may result in damage to the component.

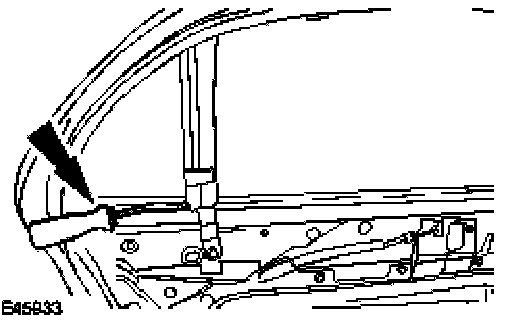

7. Detach the rear door quarter window sunblind.
- Using a suitable tool, release the lower securing clip

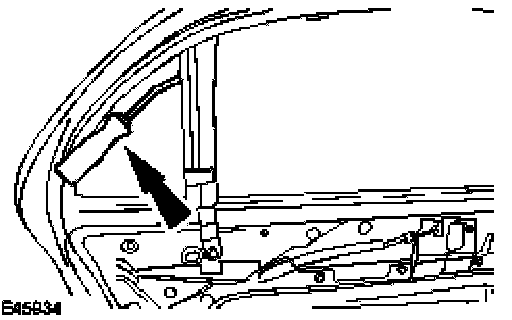

8. Remove the rear door quarter window blind.
- Using a suitable tool, release the upper securing clip.
- Remove the rear door quarter window blind.

Installation







1. Install the rear door quarter window blind.
- Install the rear door quarter window blind retaining screw.
- Tighten to 4 Nm.

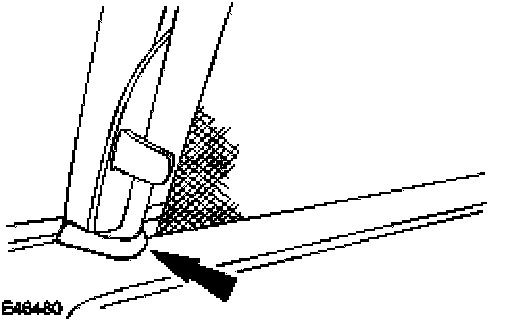

NOTE: Make sure the rear door quarter window blind is correctly attached to the front edge of the rear door divisional bar before securing the rear clips.

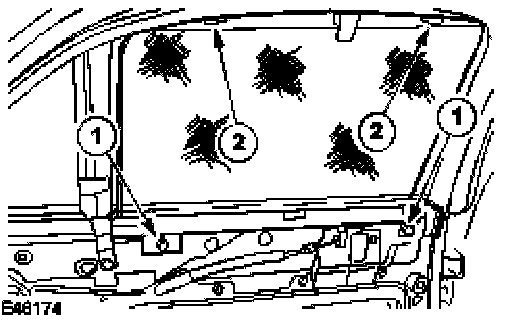

2. Install the rear door window blind.
- Install the rear door window blind retaining screws.
- Open the blind.
3. Install the rear door trim panel.







4. Install the rear door window blind finisher trim.







5. Install the rear door quarter window blind lower seal.
