Speed Control Deactivator Switch






Speed Control Deactivator Switch

Removal

NOTE:
This component also functions as the brake pedal switch.




1
CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.

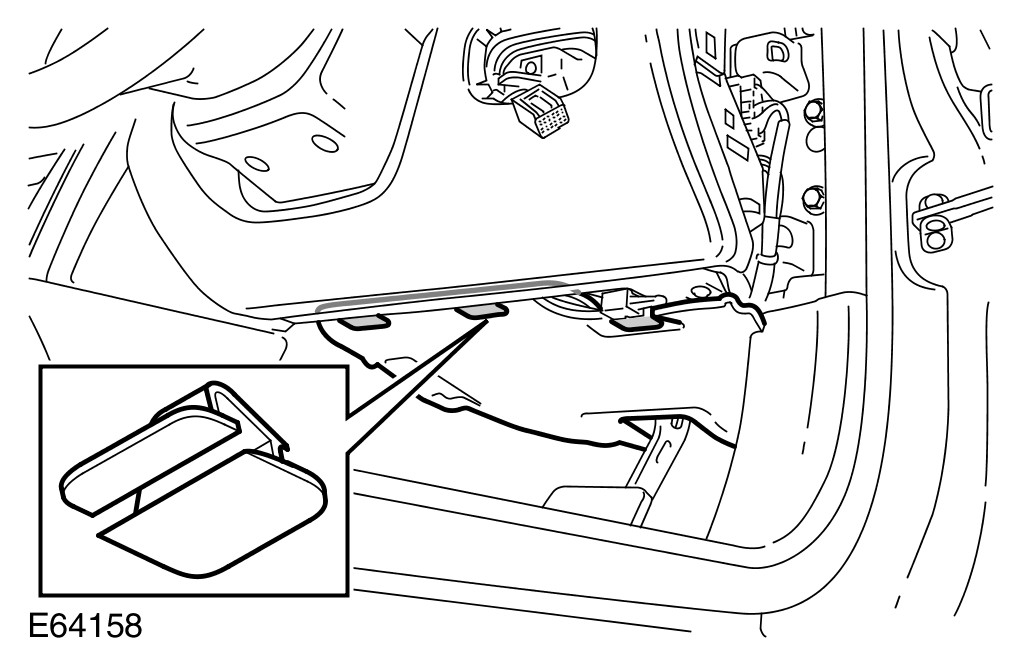

Remove the driver's side footwell trim panel.
- Carefully release the 3 clips.

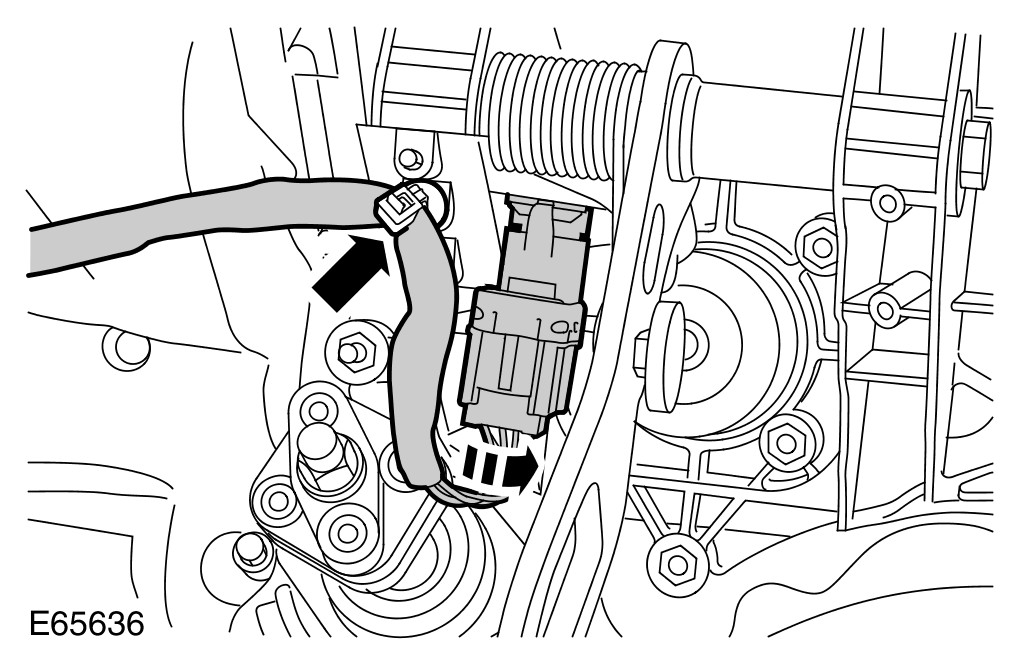

2 Release the brake switch.
- Rotate clockwise approximately 30 degrees.
- Carefully release the clip.
- Disconnect the electrical connector.

Installation

CAUTION: During installation of the brake switch, make sure the brake pedal is not depressed at any time. Depressing the pedal may cause: poor operation of the brake light switch and brake lights, diagnostic trouble codes to be logged and/or failure of the vehicle to start.
1 Install the brake switch.
- Connect the electrical connector.
- Secure the clip.
2 Install the driver's side footwell trim panel.
- Carefully align and secure the clips.
