Speed Control Sensor Adjustment

Speed Control Sensor Adjustment

Special Service Tools

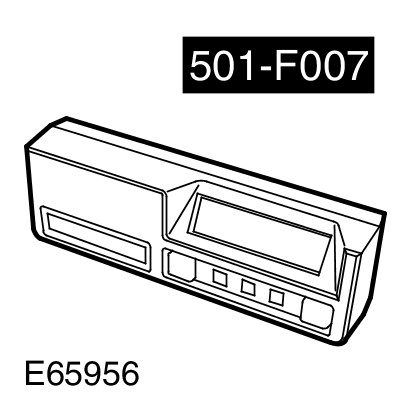

Inclinometer

501-F007
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the front bumper cover. For additional information, refer to Front Bumper Cover Service and Repair
3
CAUTION: Drive the vehicle on to a flat, level surface.
Position the vehicle on a smooth level surface and settle the suspension.

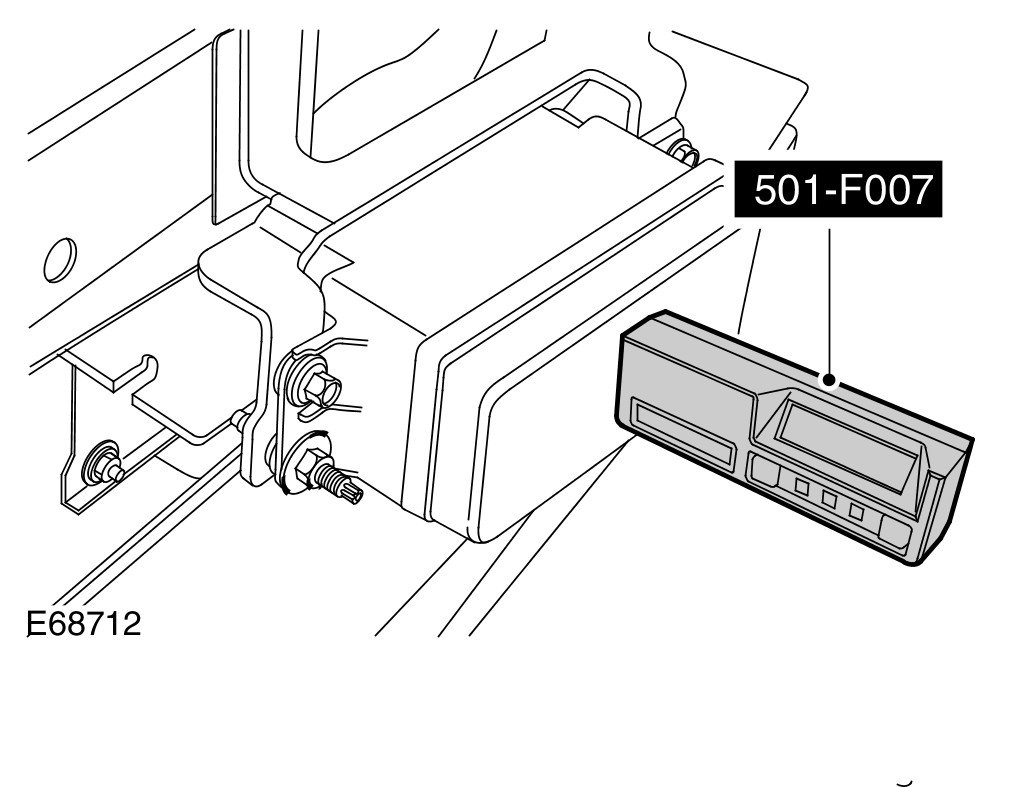

4 Using the special tool, check the speed sensor is level, (+/- 0.5 degree).




5
NOTE:
The speed sensor has no mechanical horizontal adjustment.
NOTE:
Do not release the lock nut.

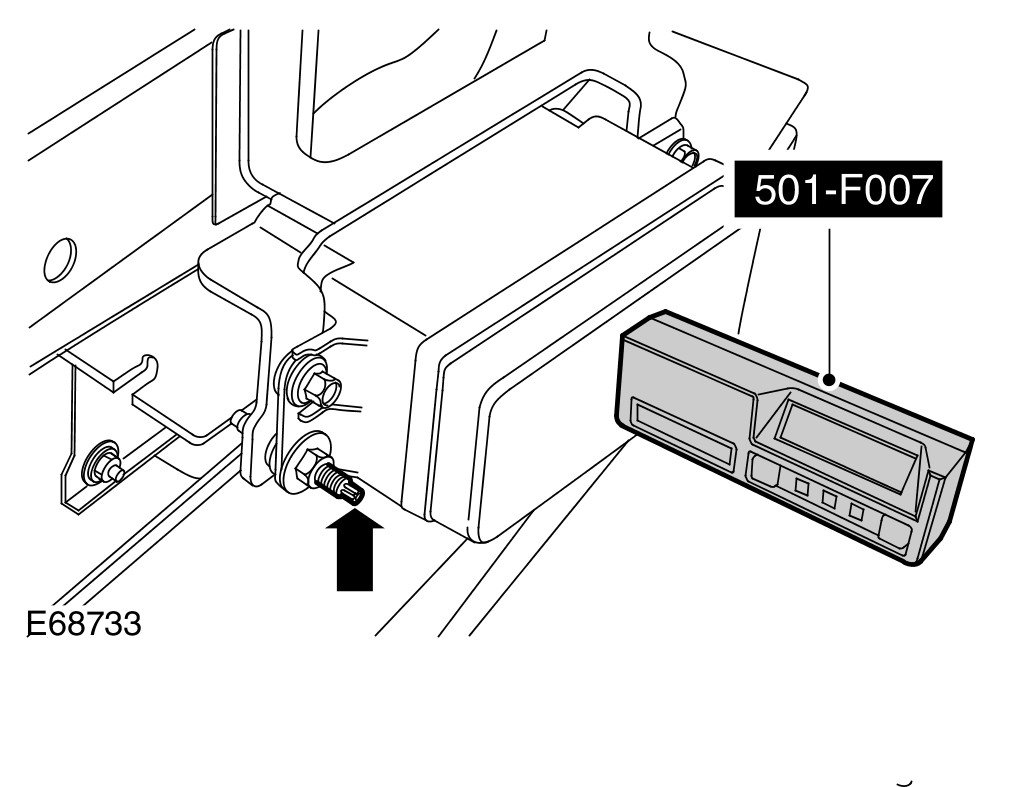

Using the special tool, set the speed control sensor.
- Rotate the vertical adjuster.
- Adjust using an internal Torx Bit.
6 Install the front bumper cover. For additional information, refer to Front Bumper Cover Service and Repair
