Condenser HVAC: Service and Repair

Condenser Core

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the supercharger radiator. For additional information, refer to Radiator Supercharger Cooling
3 Recover the A/C refrigerant.

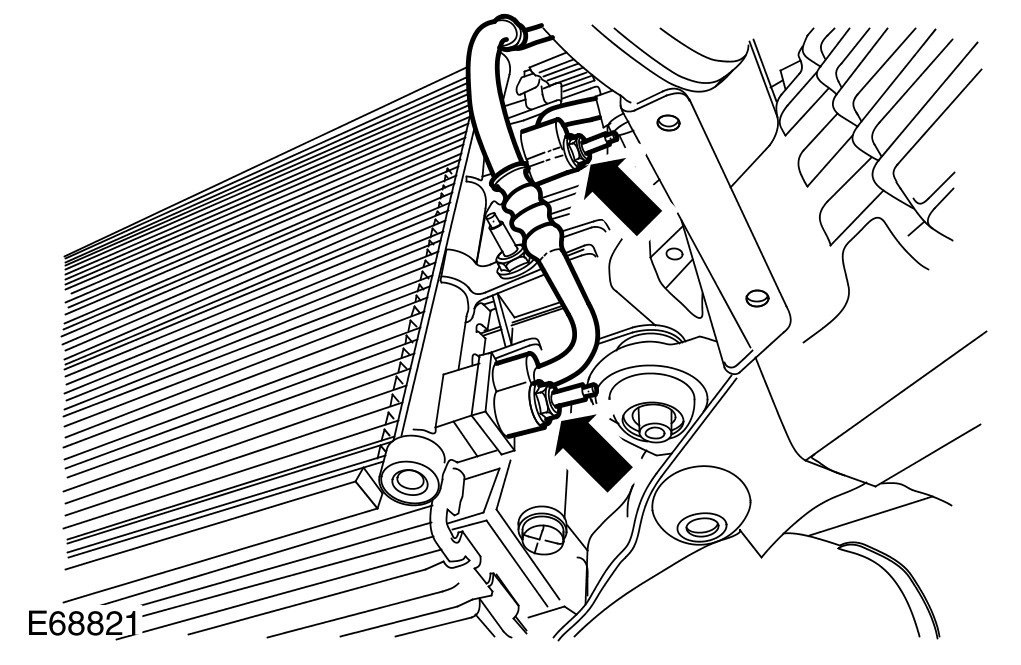

4 Disconnect the A/C pipes.
- Remove the 2 nuts.
- Discard the O-ring seals.
- Install blanking caps to the exposed ports.
5 Remove the condenser core.

Installation
1 Install the condenser core.
2 Connect the A/C pipes.
- Remove the blanking caps from the ports.
- Install a new O-ring seal.
- Tighten the nuts to 10 Nm (7 lb.ft).
3 Install the supercharger radiator. For additional information, refer to Radiator Supercharger Cooling
4 Fill the A/C system.
