Auxiliary Junction Box (AJB)





Auxiliary Junction Box

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications

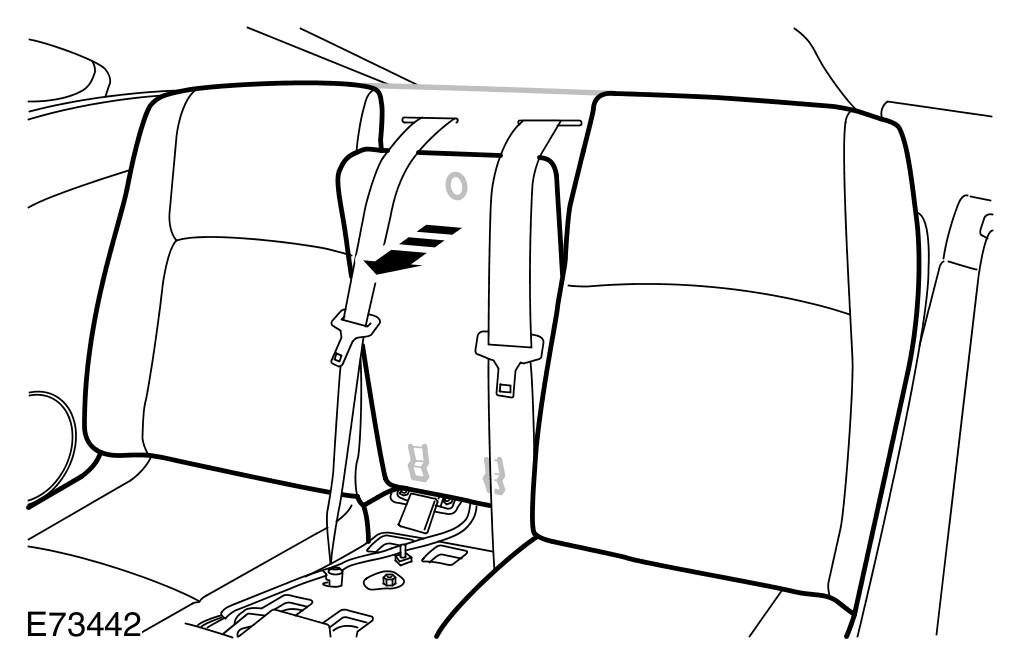

2 Release the auxiliary junction box access cover.
- Release from the clip.

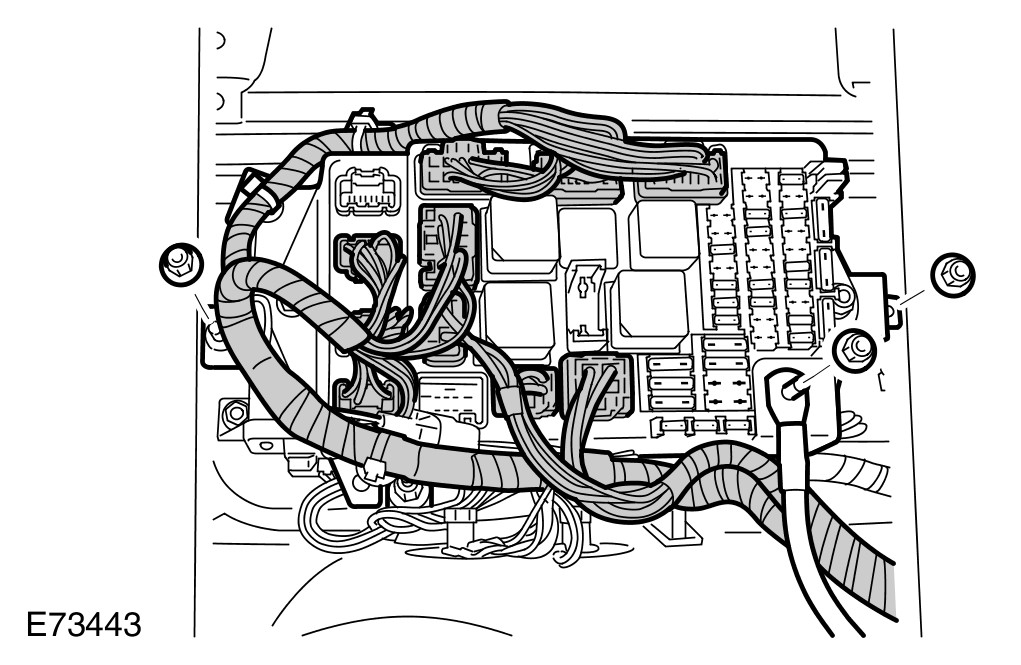

3 Release the auxiliary junction box.
- Disconnect the 10 electrical connectors.
- Disconnect the battery positive cable.




4 Remove the auxiliary junction box.
- Remove the 2 nuts.

Installation
1 Install the auxiliary junction box.
- Tighten the nuts to 10 Nm (7 lb.ft).
2 Secure the auxiliary junction box.
- Connect the electrical connectors.
- Tighten the battery positive lead nut to 10 Nm (7 lb.ft).
3 Secure the auxiliary junction box access cover.
- Secure in the clip.
4 Connect the battery ground cable and install the cover. For additional information, refer to Specifications
