Air Injection Control Valve: Service and Repair






Secondary Air Injection (AIR) Control Valve

Removal
1 Remove the cover and disconnect the battery ground cable.
2 Remove the intake air resonator. For additional information, refer to Intake Air Resonator Service and Repair

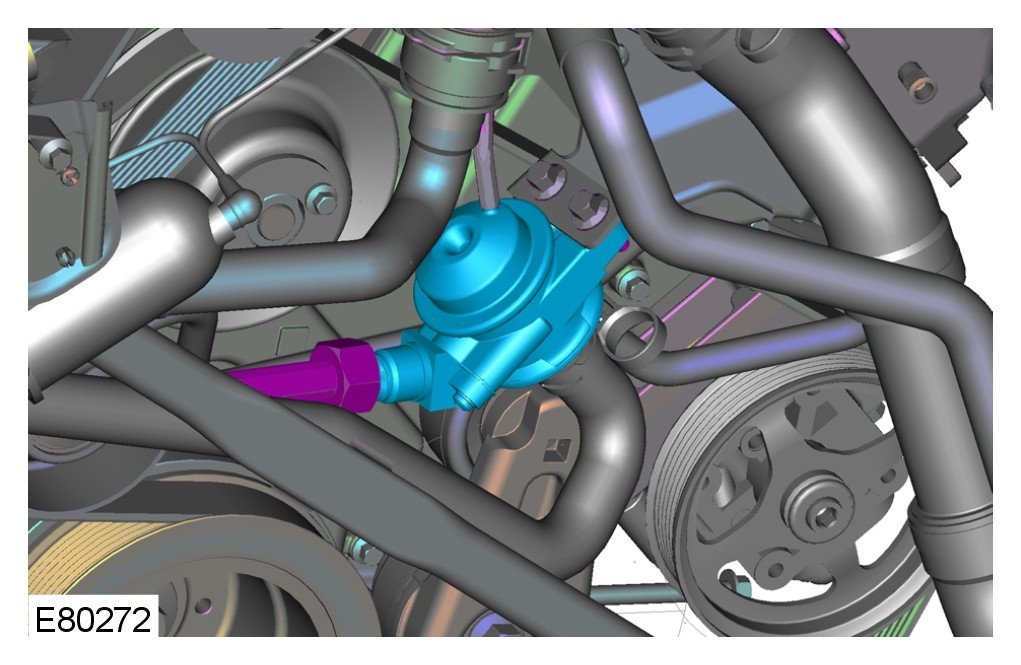

3 Release the AIR tube from the AIR control valve.

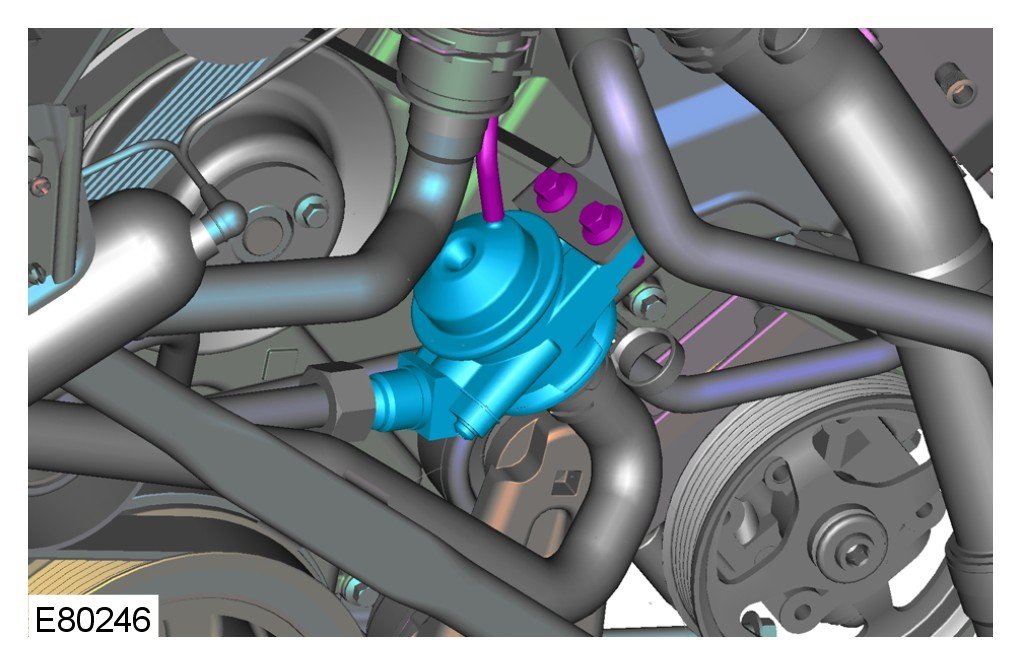

4 Release the AIR control valve.
- Disconnect the vacuum hose.
- Remove the 2 bolts.

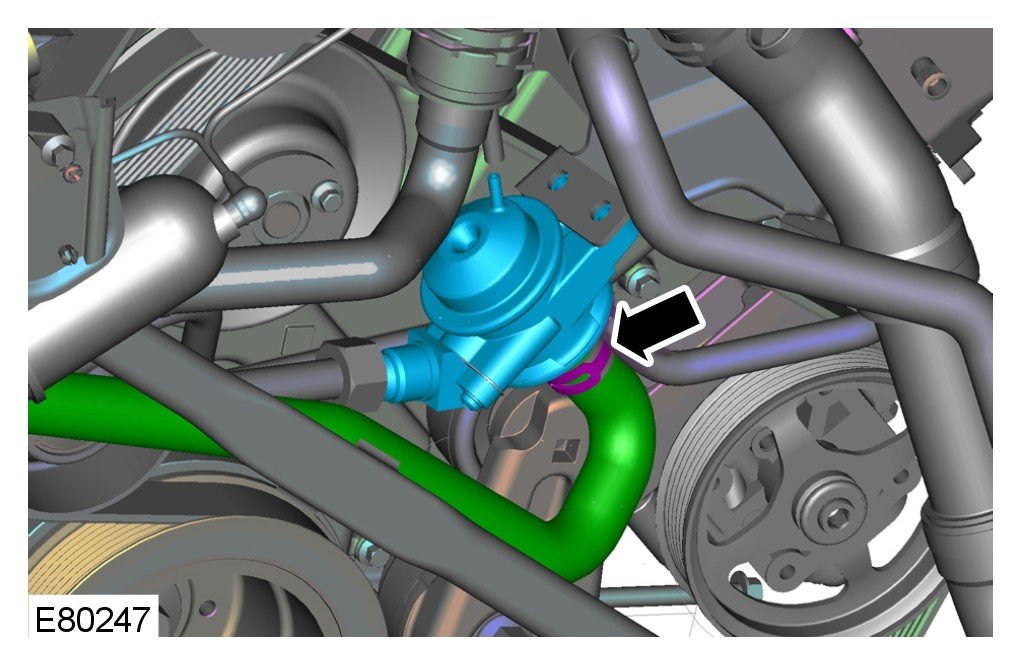

5 Remove the AIR control valve.
- Release the clip and disconnect the hose.

Installation
1 Attach the AIR control valve hose.
- Secure with the clip.
2 Secure the AIR control valve.
- Tighten the bolts to 25 Nm (18 lb.ft).
- Connect the vacuum hose.
3 Attach the AIR tube to the AIR control valve.
- Tighten the union to 35 Nm (26 lb.ft).
4 Install the intake air resonator. For additional information, refer to Intake Air Resonator Service and Repair
5 Connect the battery ground cable and install the cover.
