Air Injection Pump: Service and Repair






Secondary Air Injection (AIR) Pump

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications [1][2]Battery
2 Remove the RH headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair

3 Release the washer jet hose.
- Remove the clip.
4 Disconnect the AIR pump hose.

5 Release the AIR pump.
- Remove the 3 nuts.

6 Remove the AIR pump.
- Disconnect the electrical connector.




7
NOTE:
Do not disassemble further if the component is removed for access only.

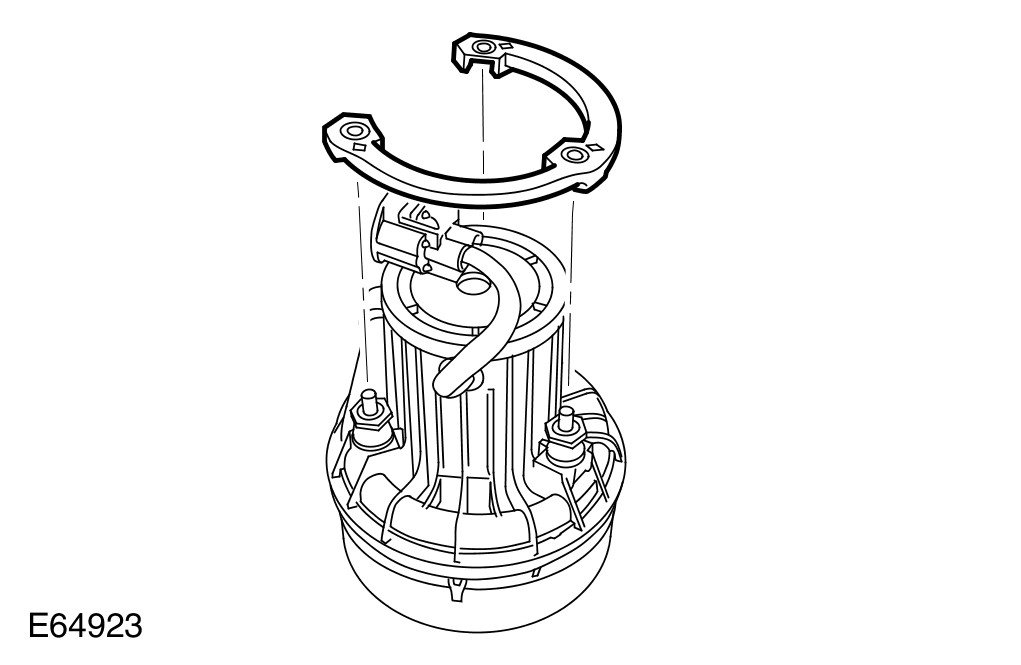

Remove the AIR pump bracket.

Installation
1 Install the AIR pump bracket.
2 Install the AIR pump.
- Connect the electrical connector.
- Tighten the nuts to 10 Nm (7 lb.ft).
- Connect the hose.
3 Attach the washer jet hose.
- Secure with the clip.
4 Install the RH headlamp assembly. For additional information, refer to Headlamp Assembly Service and Repair
5 Connect the battery ground cable and install the cover. For additional information, refer to Specifications [1][2]Battery
