Spark Plug: Service and Repair






Spark Plugs

Removal
1 Remove the ignition coil-on-plugs. For additional information, refer to Ignition Coil-On-Plug - Vehicles With: Supercharger Service and Repair
2 Remove the remaining ignition coil-on-plugs.
3
WARNING: Eye protection must be worn.
Clean the area surrounding the spark plugs.

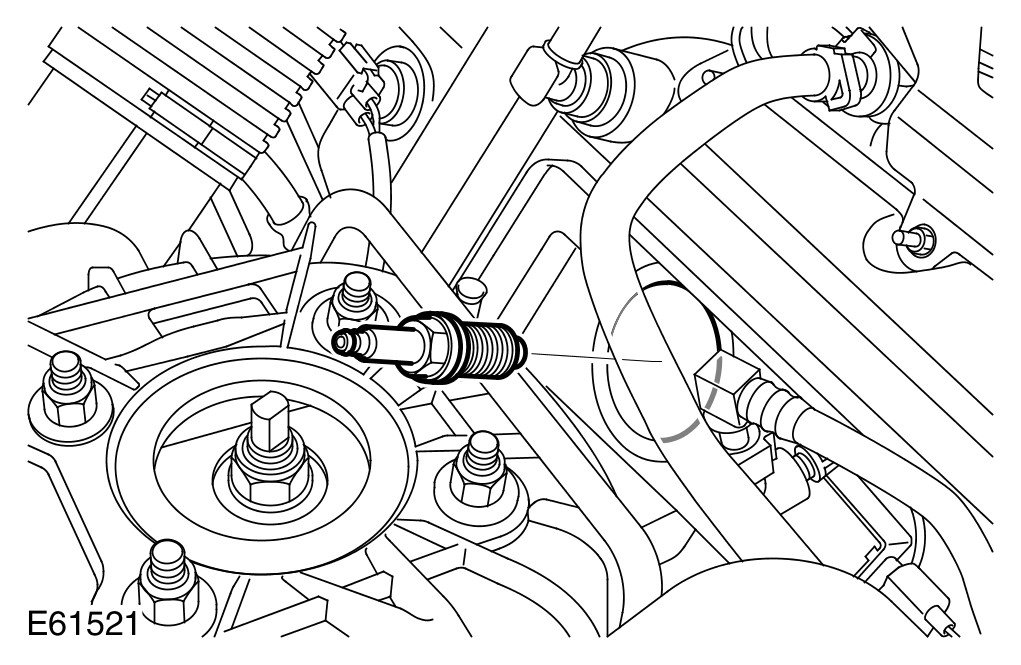

4 Remove the spark plugs.

Installation
1 Install the spark plugs.
- Tighten the spark plugs to 25 Nm (18 lb.ft).
2 Install the remaining coil-on-plugs.
3 Install the ignition coil-on-plug. For additional information, refer to Ignition Coil-On-Plug - Vehicles With: Supercharger Service and Repair
