Power Window Switch: Service and Repair
Window Control SwitchRemoval 1

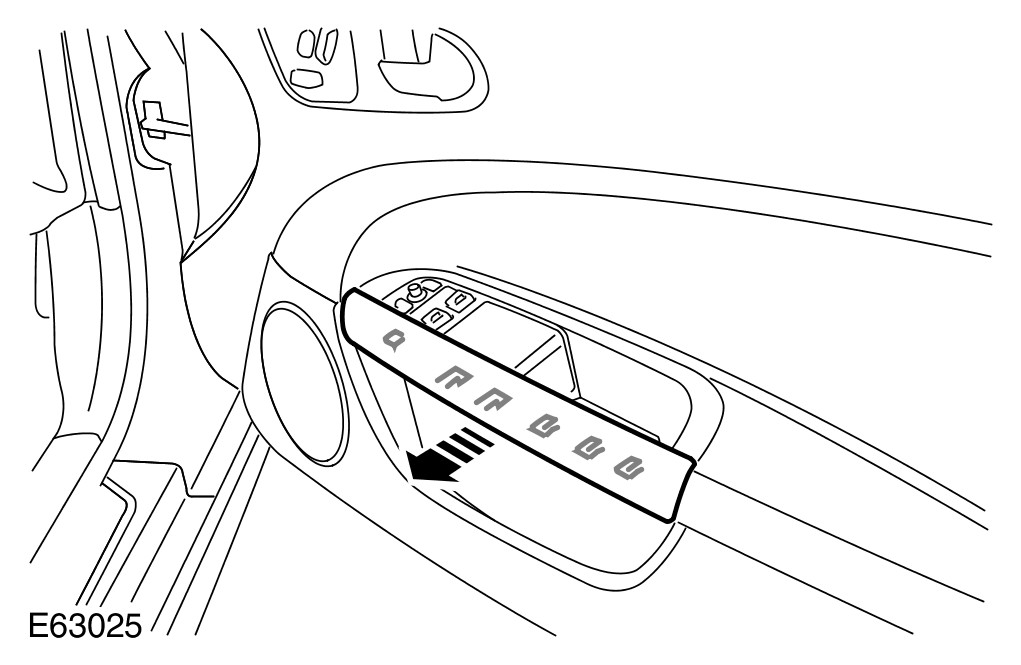

Remove the grab handle cover.
-
Release from the 6 clips.
2

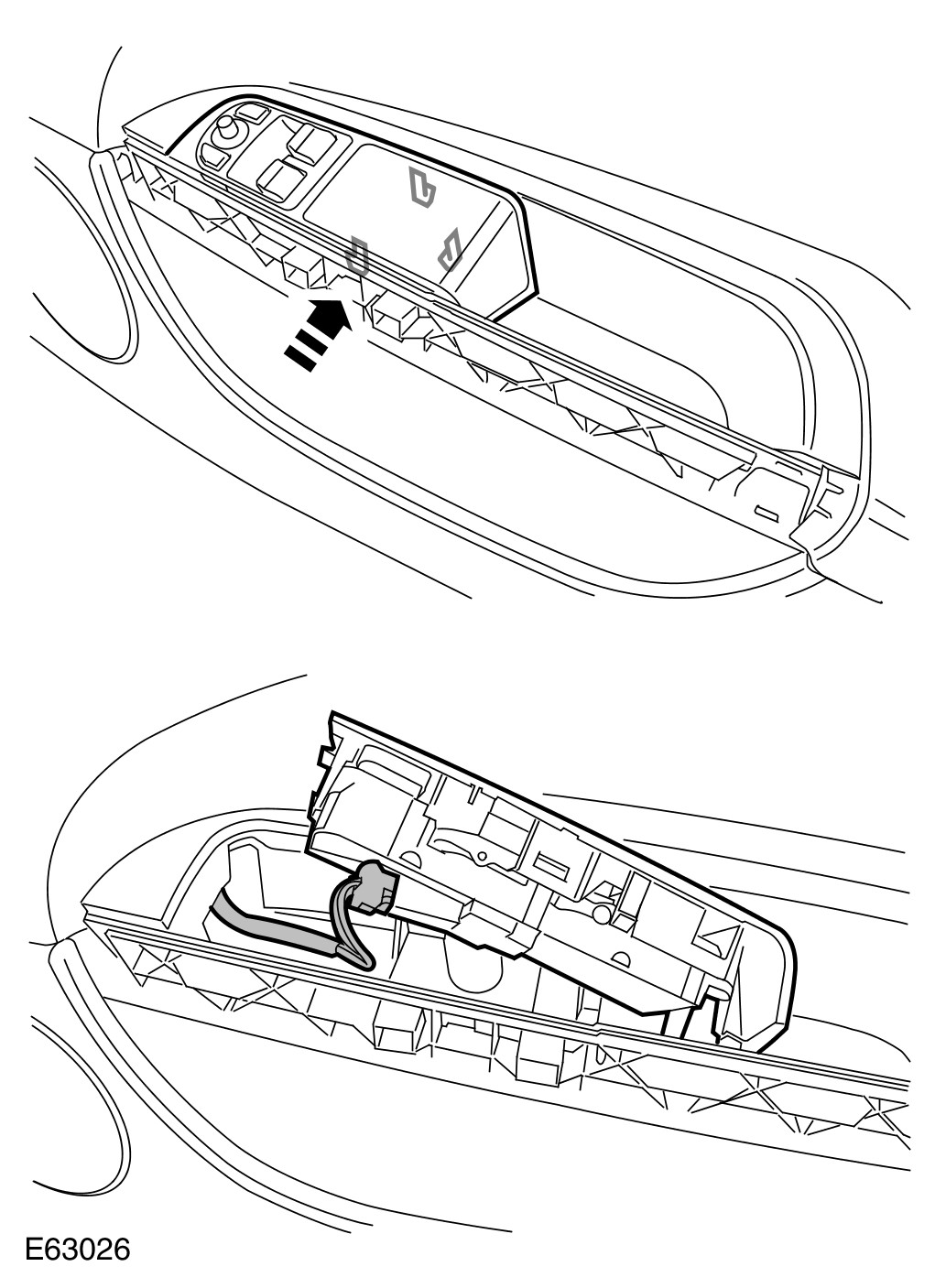

Remove the window control switch.
-
Release from the 3 clips.
-
Disconnect the electrical connector.
Installation 1
Install the window control switch.
-
Connect the electrical connector.
-
Secure in the clips.
2
Install the grab handle cover.
-
Secure in the clips.
