Rain Sensor: Service and Repair






Rain Sensor

Removal
1 Remove the interior mirror. For additional information, refer to Auto-Dimming Interior Mirror Auto-Dimming Interior Mirror




2
NOTE:
Note the fitted position.

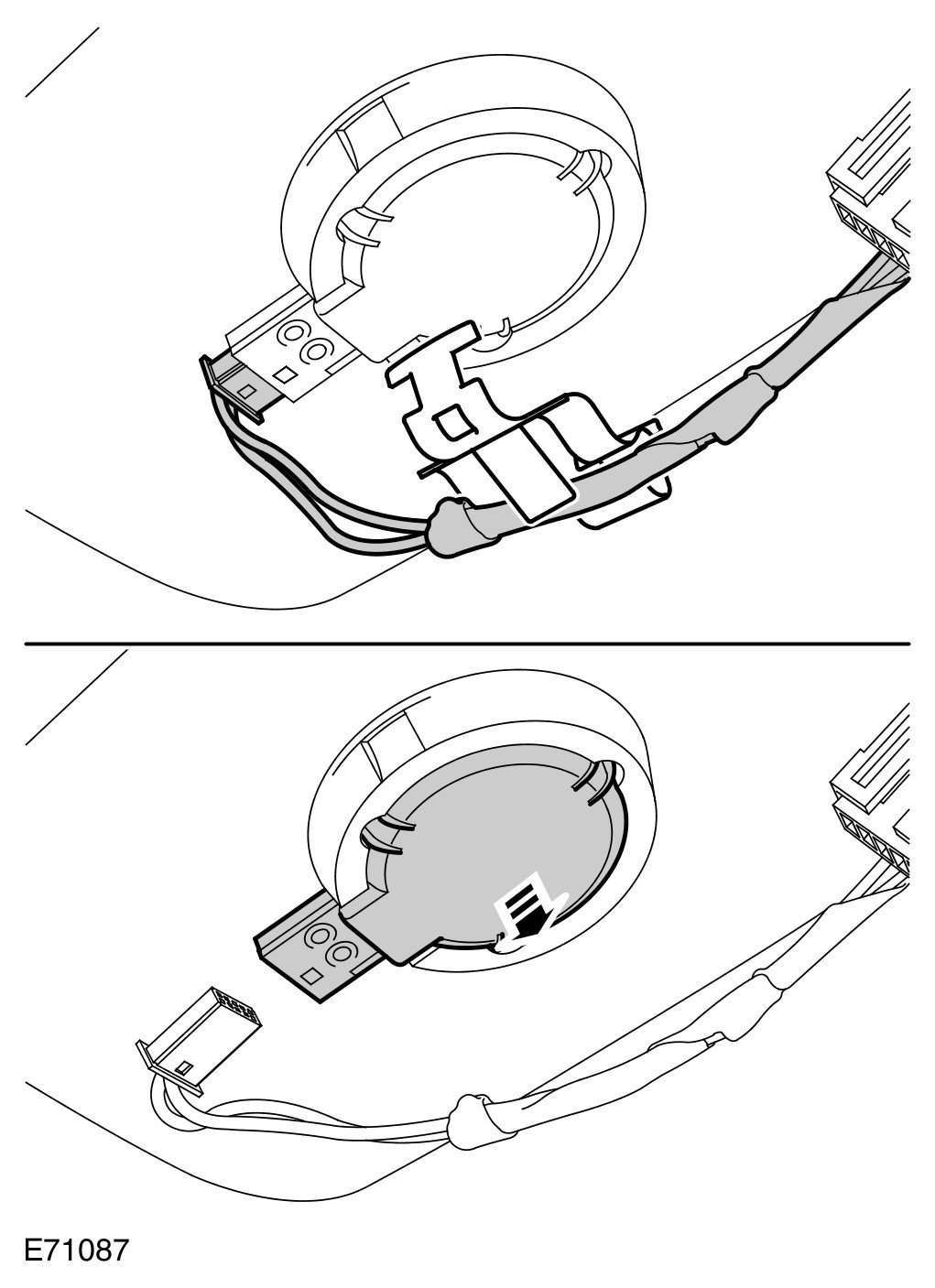

Remove the rain sensor.
- Remove the clip.
- Disconnect the electrical connector.

Installation
1
NOTE:
Align to the position noted on removal.
Install the rain sensor.
- Install the clip.
- Connect and secure the electrical connector.
2 Install the interior mirror. For additional information, refer to Auto-Dimming Interior Mirror Auto-Dimming Interior Mirror
