Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor

Removal

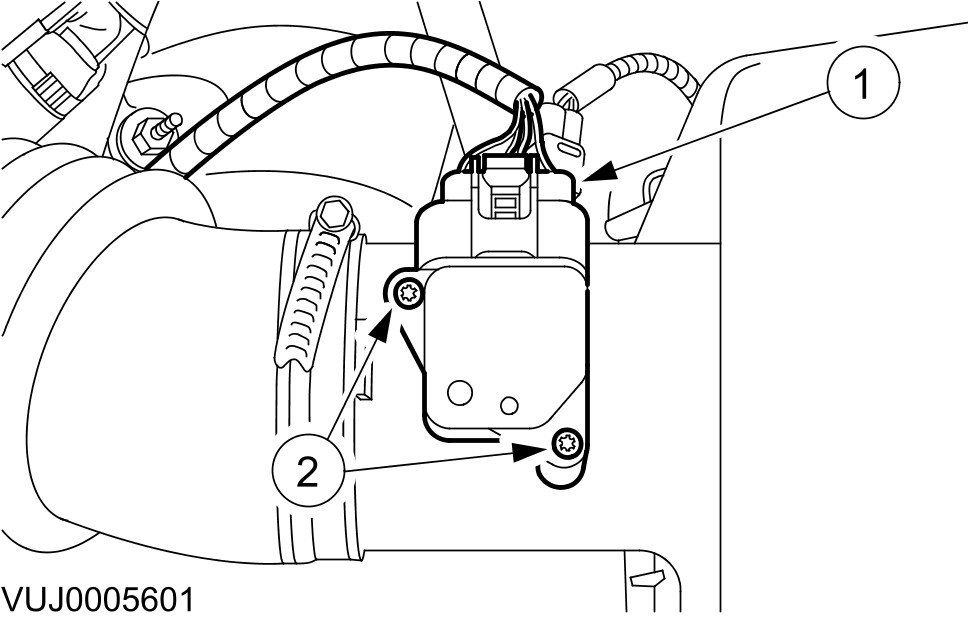

1 Remove the mass air flow (MAF) sensor.
- Remove and discard the O-ring seal.

Installation

1 To install, reverse the removal procedure.
- Tighten to 3 Nm.
2
NOTE:
For NAS vehicles only.
If required, carry out a short drive cycle.For additional information, refer to Powertrain Control Module (PCM) Short Drive Cycle Self-Test Powertrain Control Module (PCM) Short Drive Cycle Self-Test
