Ignition Coil: Service and Repair

Ignition Coil-On-Plug

Removal
1 Remove the engine cover. For additional information, refer to Engine Cover - 4.2L, Vehicles Without: Supercharger Service and Repair

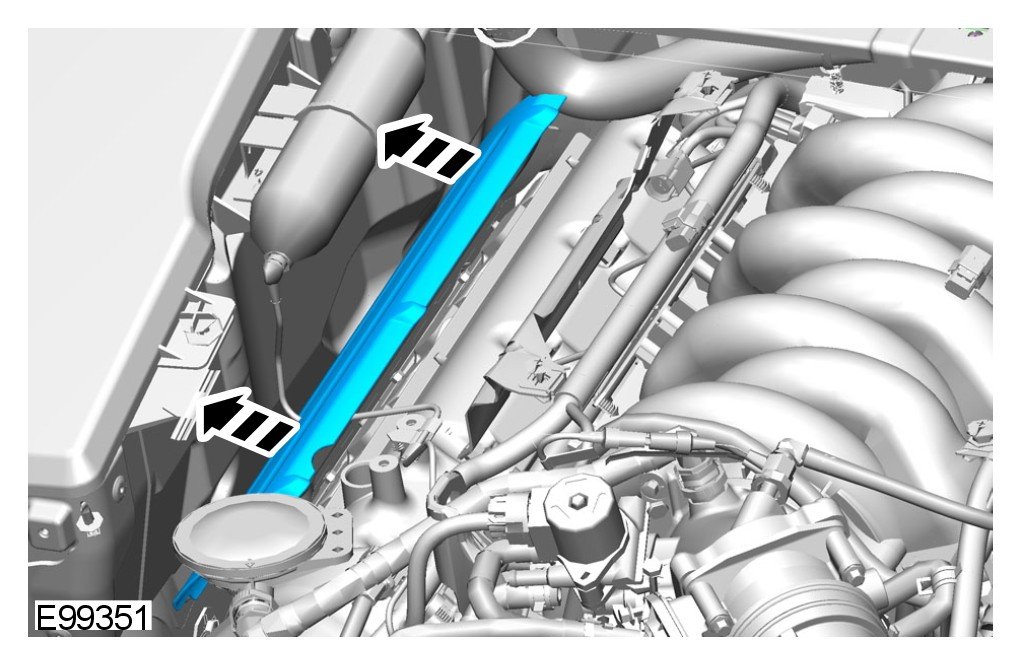

2 Remove the ignition coil-on-plug cover.
- Release from the 2 clips.

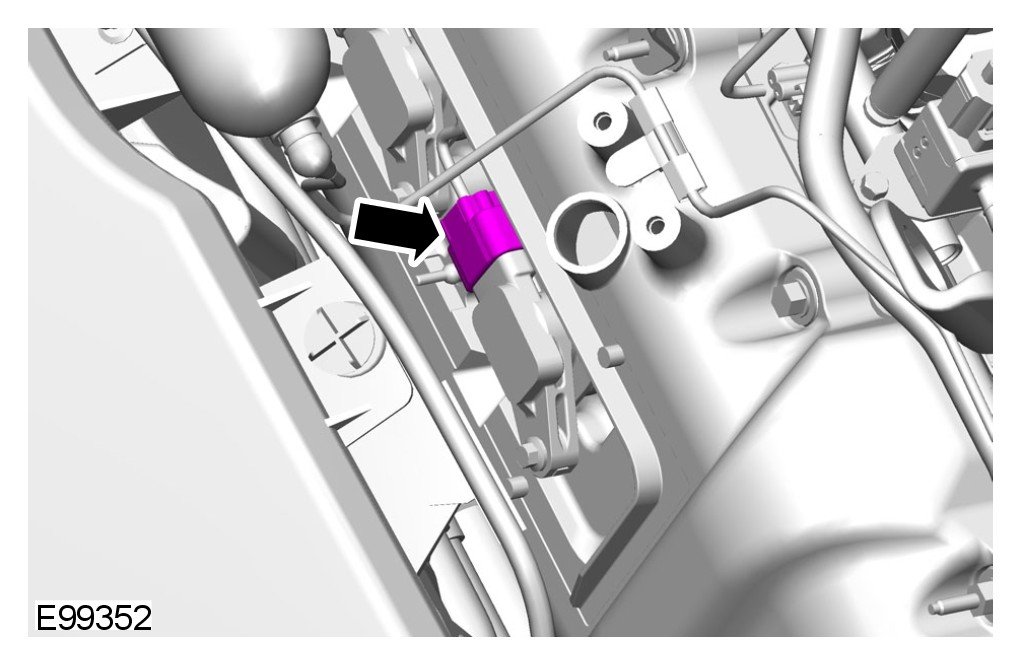

3 Disconnect the ignition coil-on-plug electrical connector.

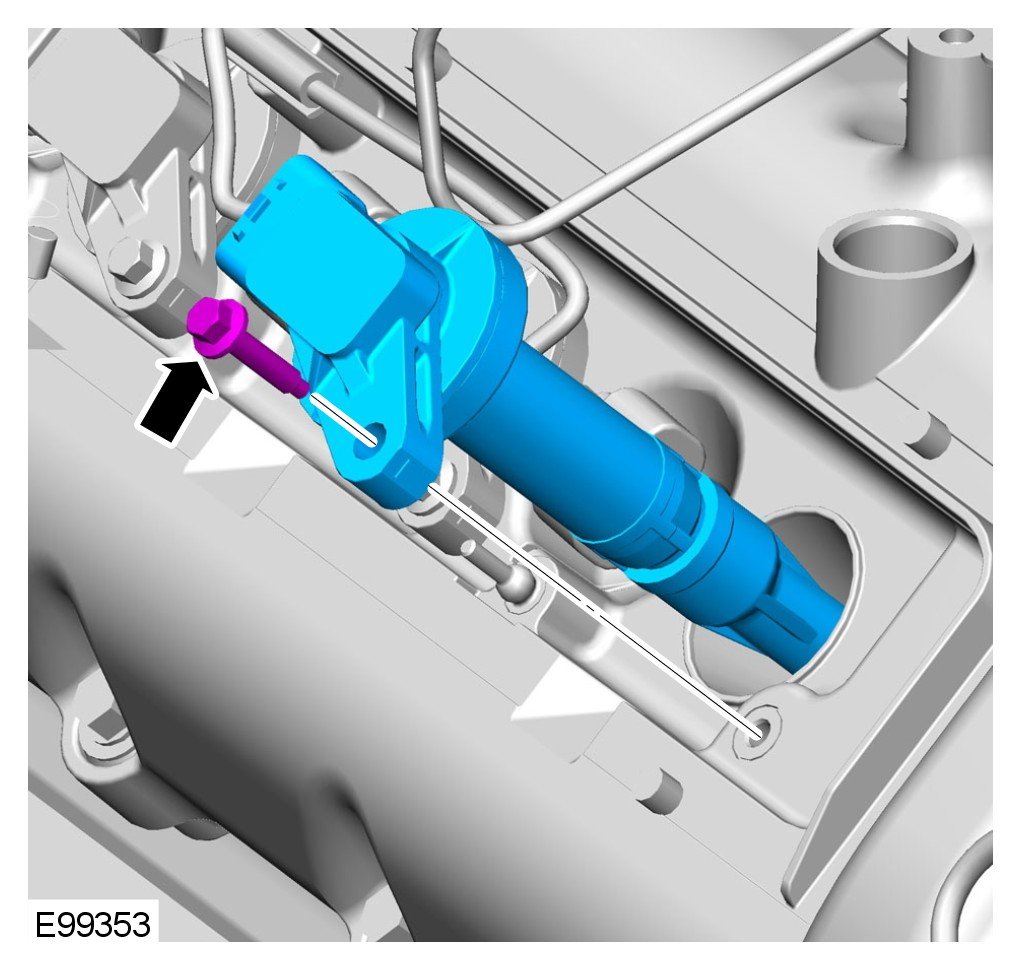

4 Remove the ignition coil-on-plug.
- Remove the bolt.

Installation
1 To install, reverse the removal procedure.
