Rear Subframe Mount: Service and Repair






Rear Subframe Rear Bushing

Special Service Tools






Forcing bolt

204-469





Receiver-bush

204-475





Replacer-bush

204-474





Remover bush

204-473





Remover support-bush

204-472

Removal

Vehicles with 3.0L diesel engine
1 For additional information, refer to Rear Subframe - 3.0L Diesel

Vehicles with 5.0L
2 For additional information, refer to Rear Subframe - 5.0L Service and Repair

All vehicles

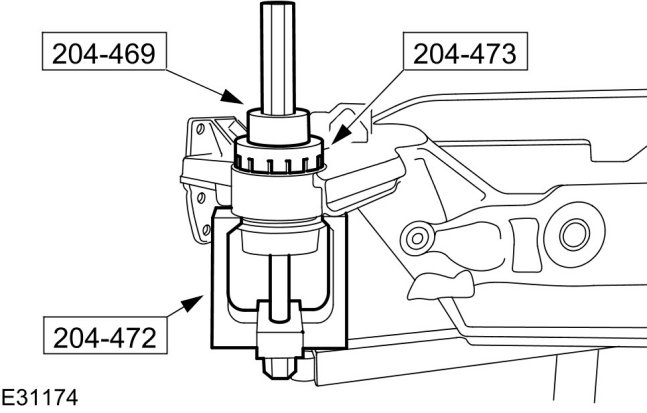

3
NOTE:
Note the orientation of the bushing before removal.


Installation

All vehicles

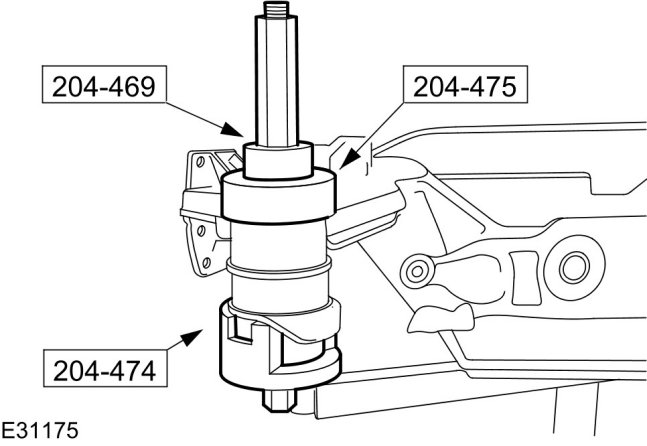

1
NOTE:
Make sure the bushing is correctly orientated.


Vehicles with 5.0L
2 For additional information, refer to Rear Subframe - 5.0L Service and Repair

Vehicles with 3.0L diesel engine
3 For additional information, refer to Rear Subframe - 3.0L Diesel
