Rear Subframe Mount: Service and Repair





Rear Subframe Rear Bushing

Special Service Tools






Forcing bolt

204-469





Reciever-bush

204-475





Replacer-bush

204-474





Remover bush

204-473





Remover support-bush

204-472

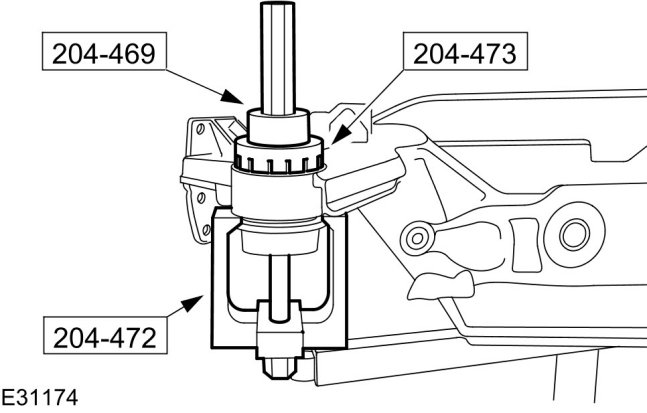

Removal


Vehicles with 5.0L

2. For additional information, refer to Rear Subframe - 5.0L

All vehicles





3.
NOTE:
Note the orientation of the bushing before removal.

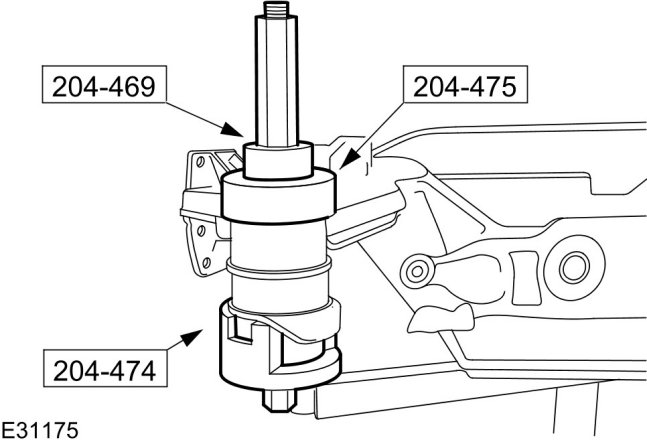

Installation

All vehicles





1.
NOTE:
Make sure the bushing is correctly orientated.



Vehicles with 5.0L

2. For additional information, refer to Rear Subframe - 5.0L
