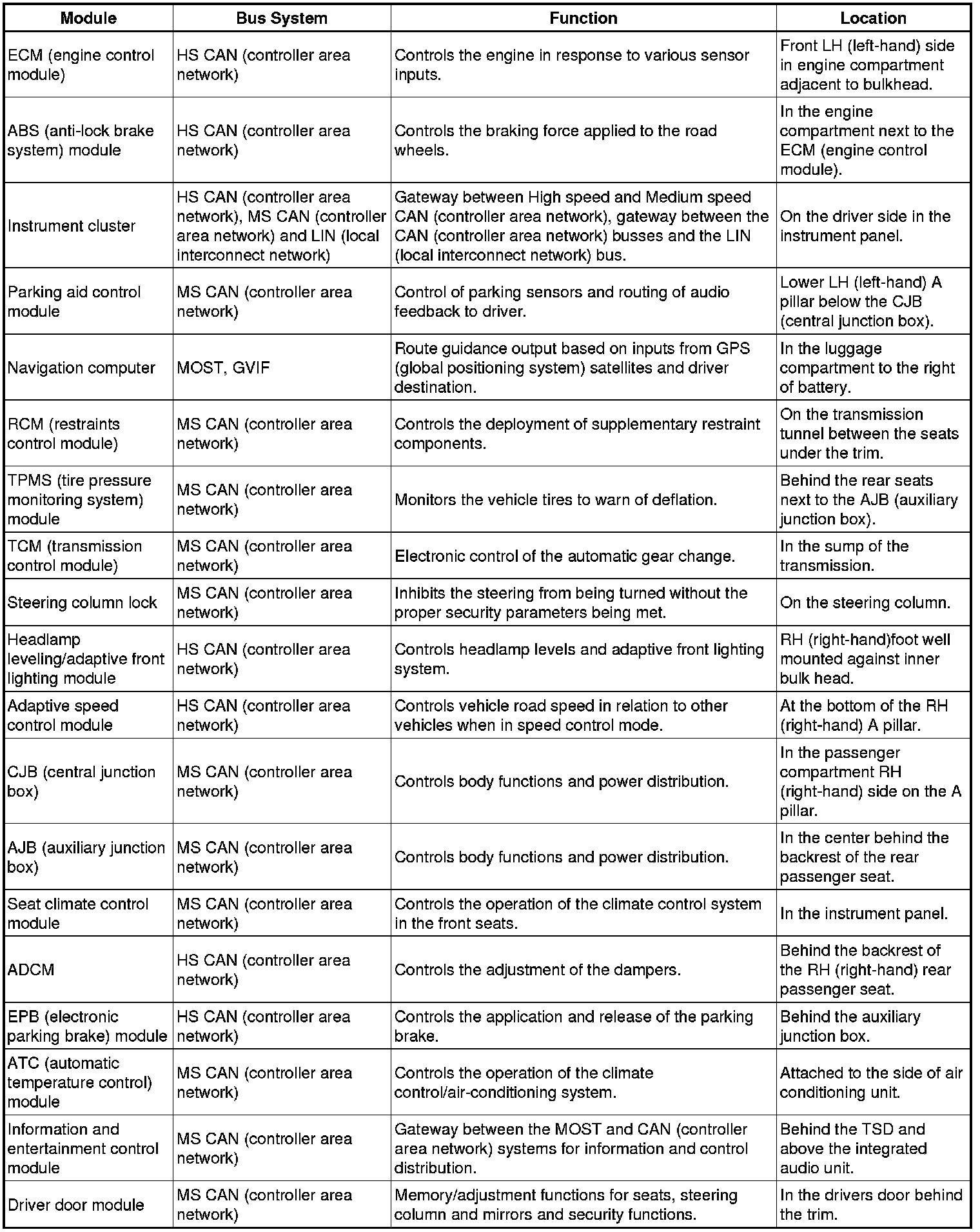

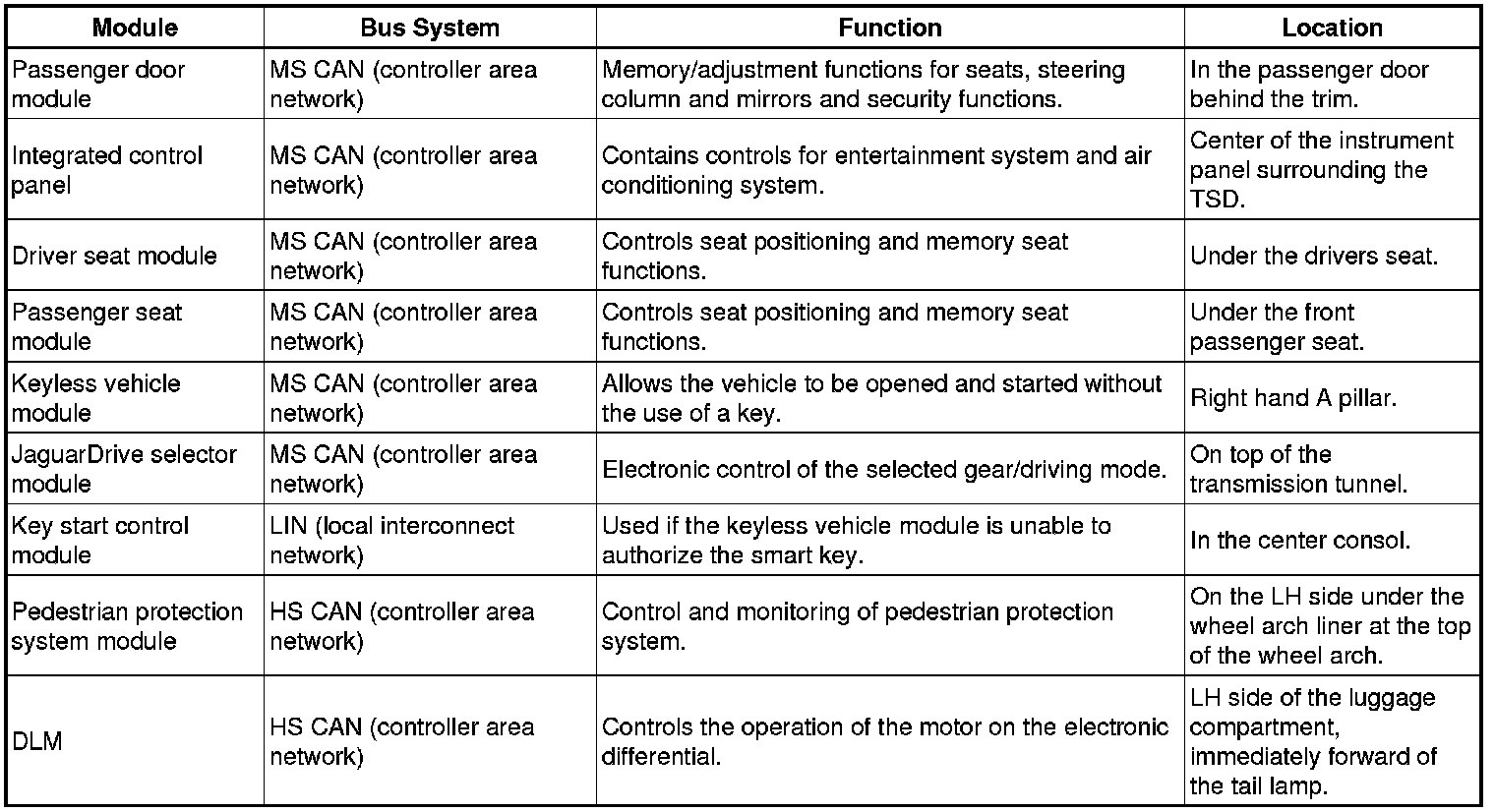

Module Controlled Functions

Module Controlled Functions

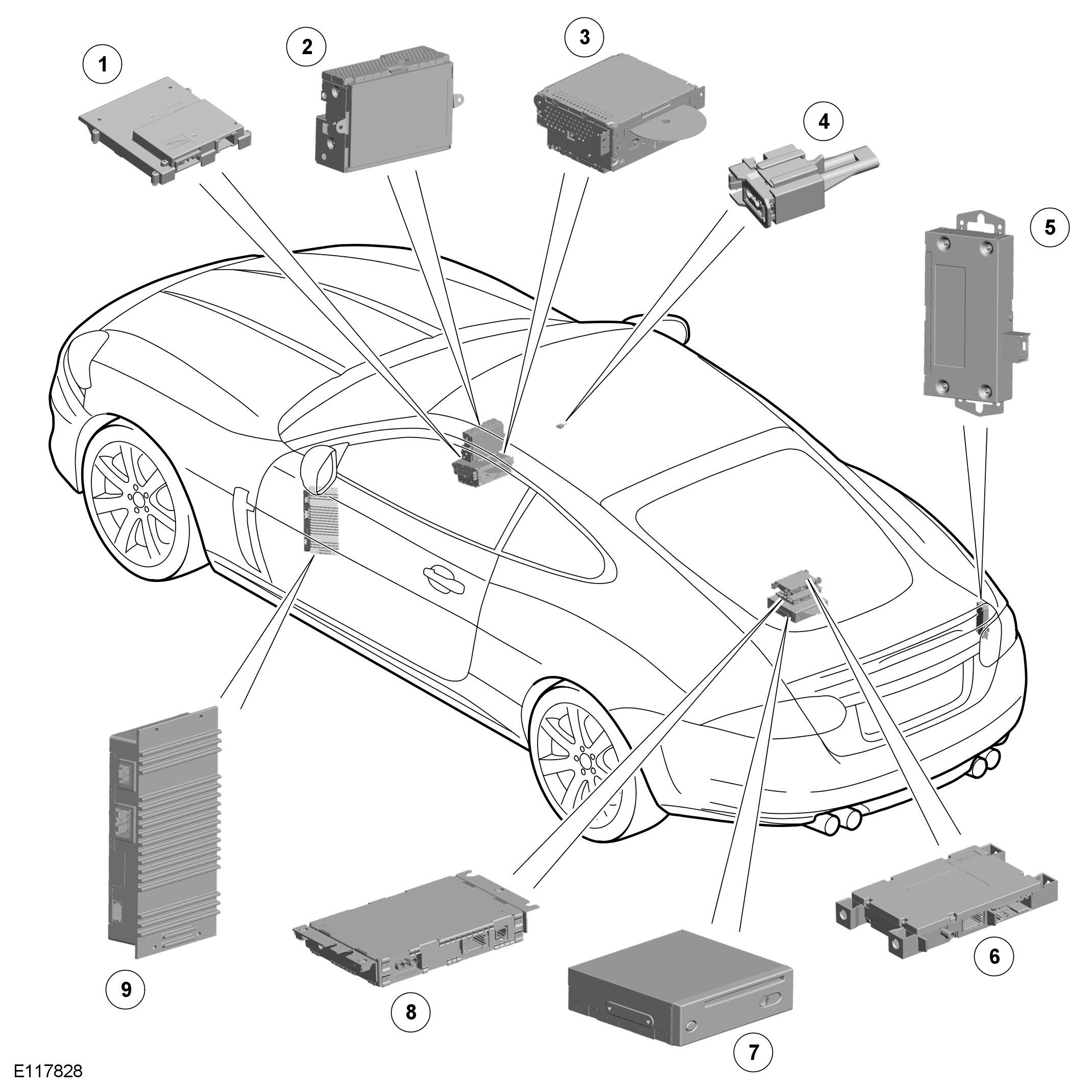

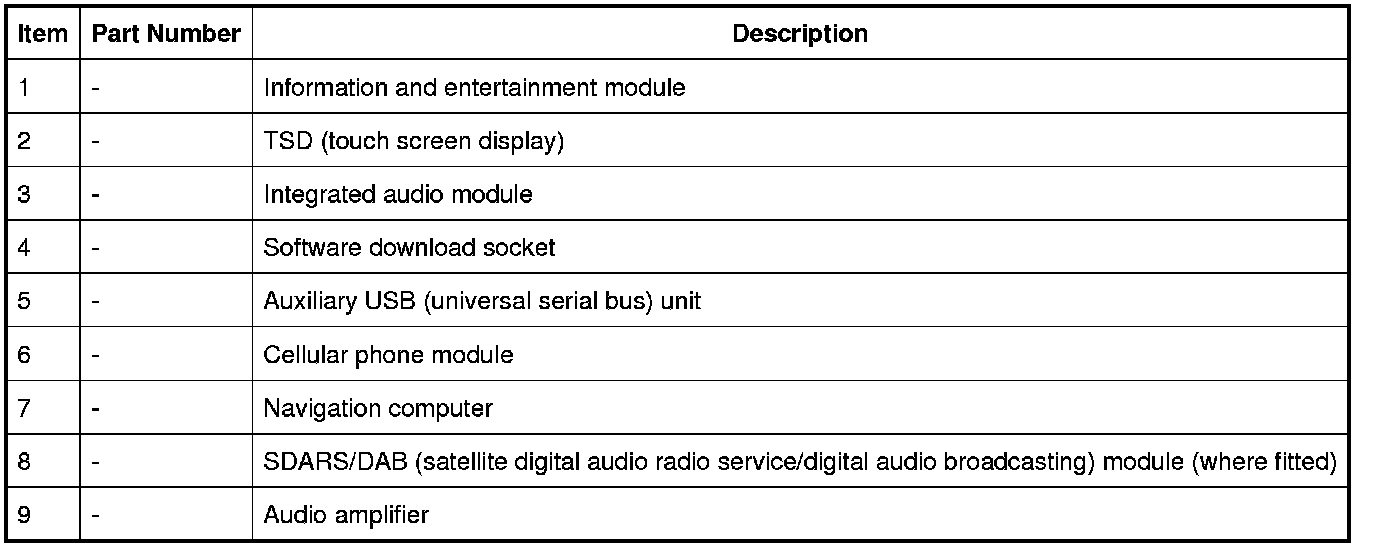

COMPONENT LOCATION - MOST BUS

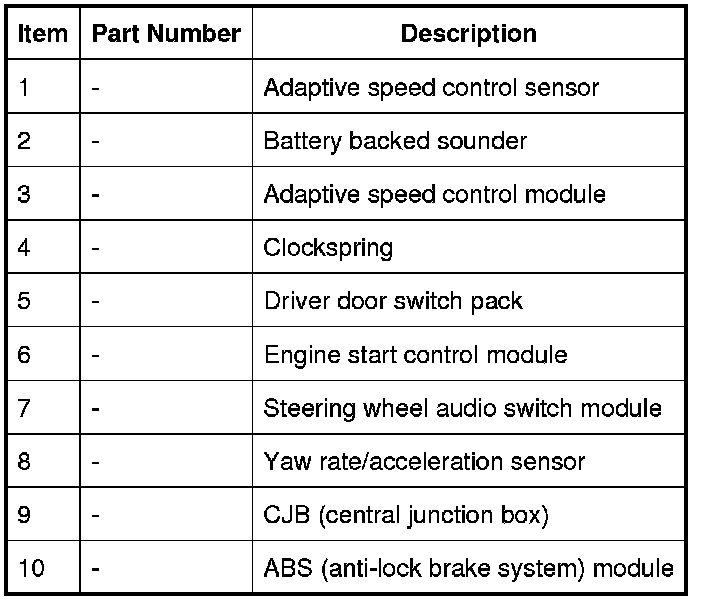

COMPONENT LOCATION - LIN AND PRIVATE CAN BUSES

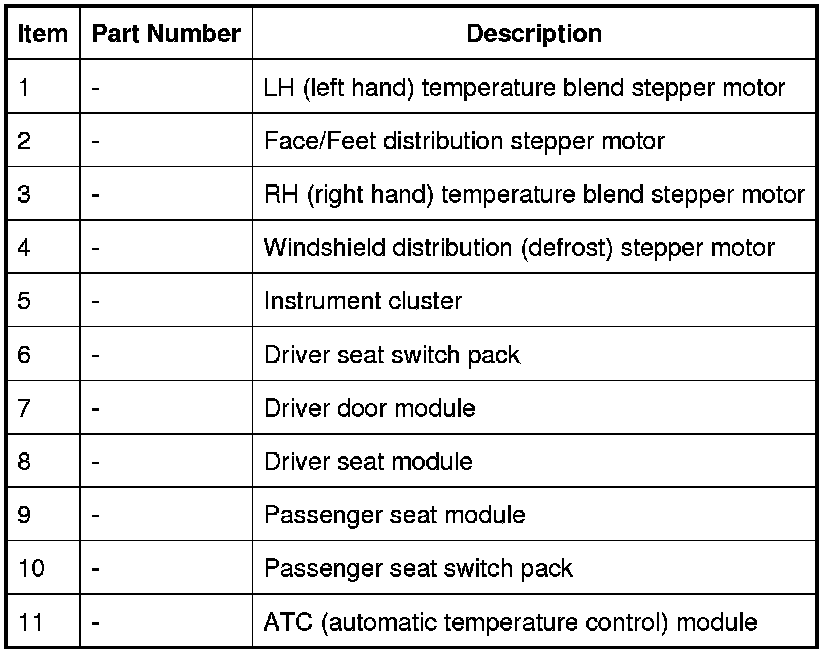

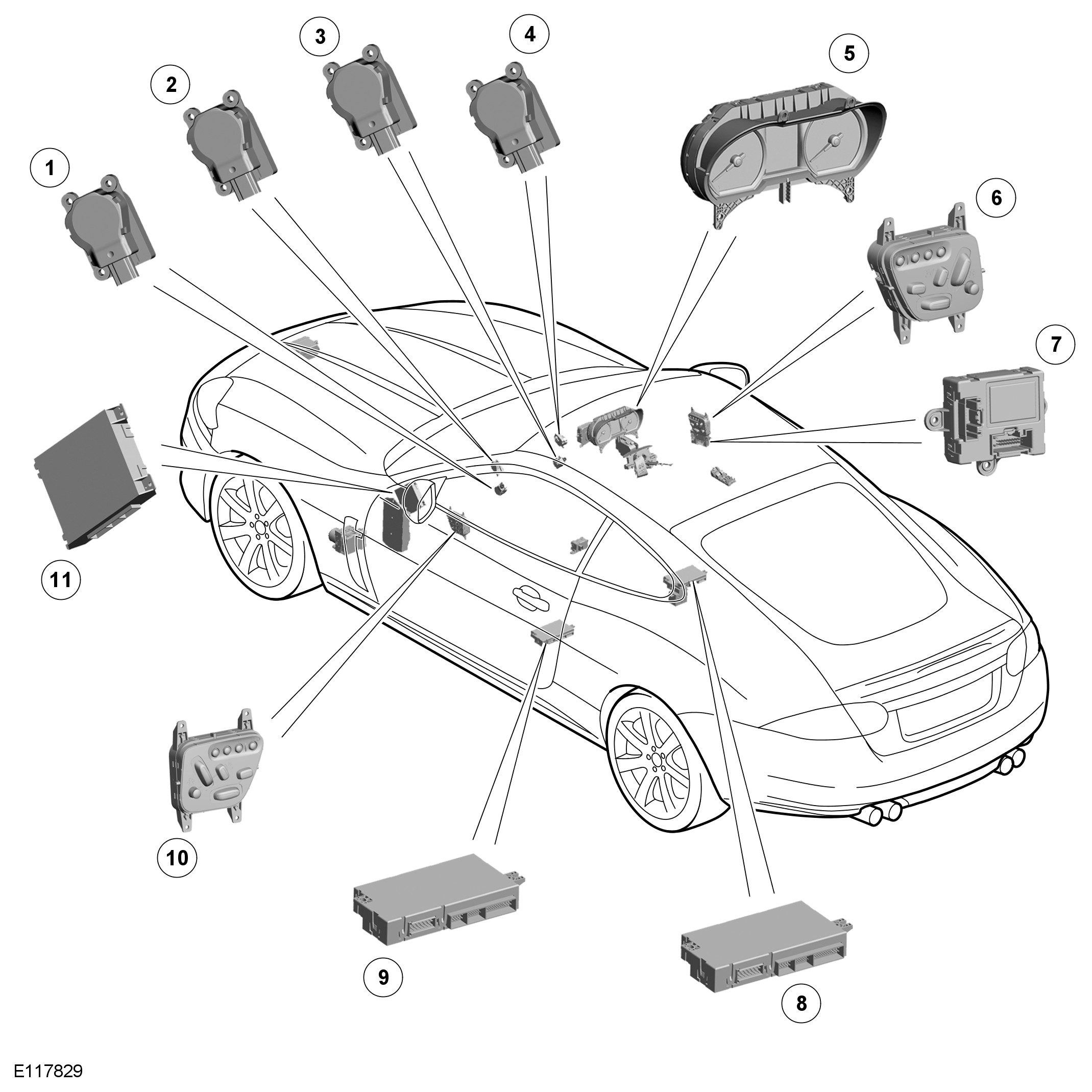

COMPONENT LOCATION - LIN BUS (CONTINUED)









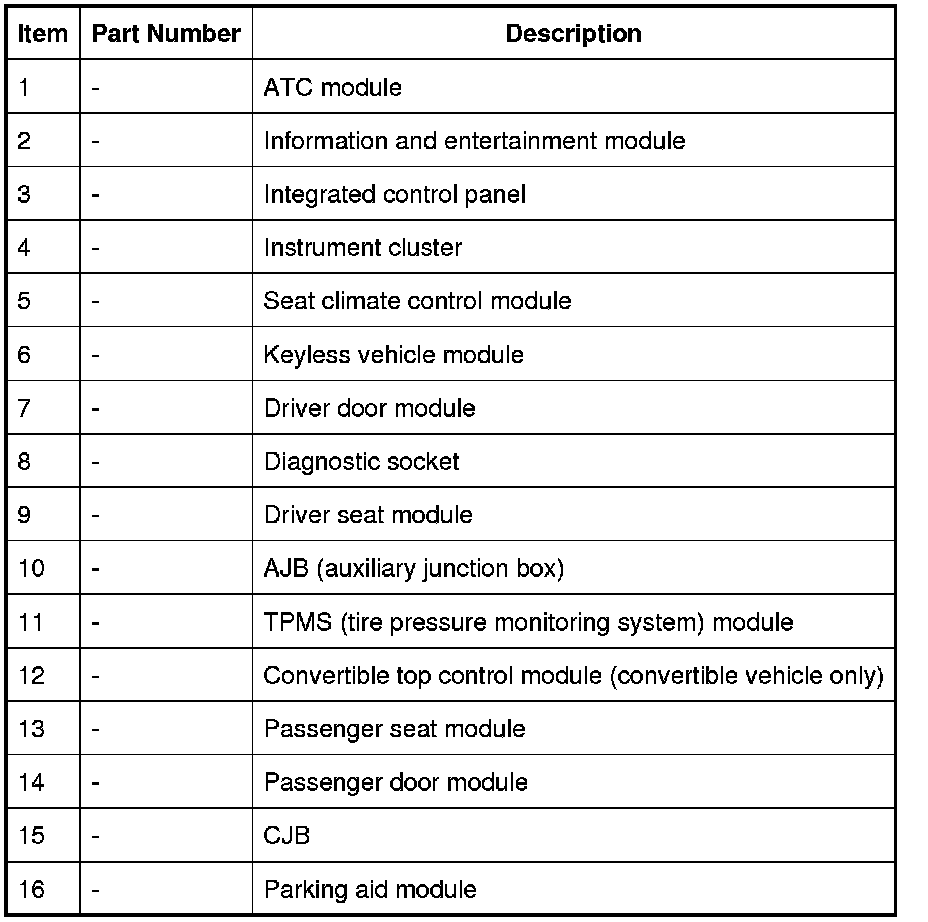

COMPONENT LOCATION - MEDIUM SPEED CAN BUS

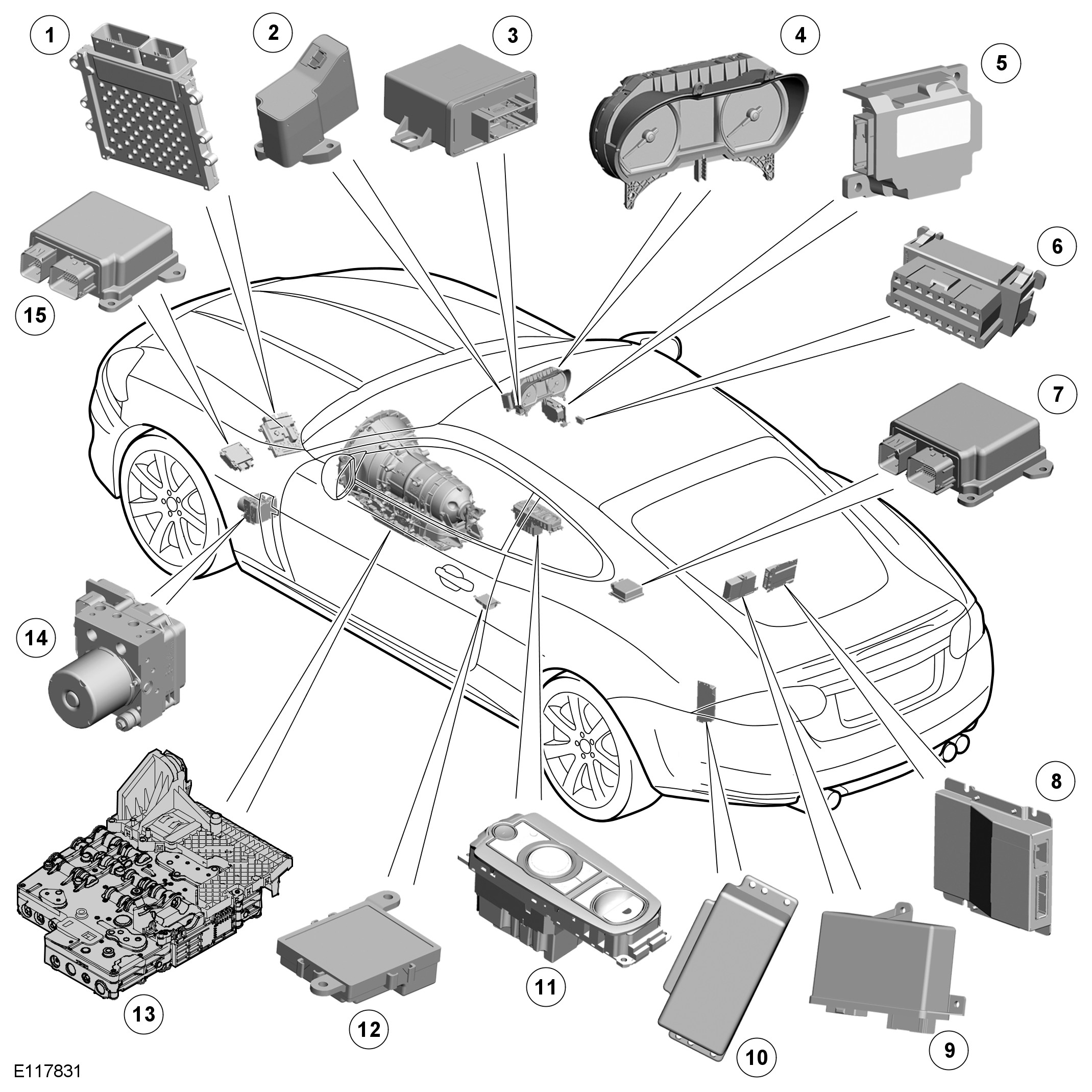

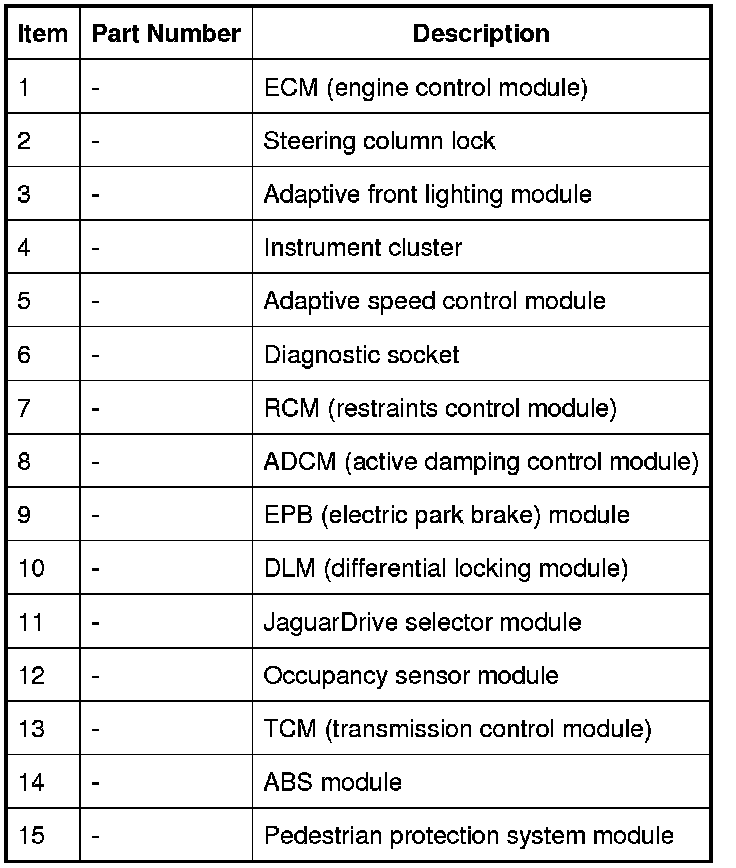

COMPONENT LOCATION - HIGH SPEED CAN BUS









INTRODUCTION
The vehicle electrical system consists of a number of control modules connected via two multiplexed CAN (controller area network) busses. The Instrument cluster acts as a gateway between the two CAN (controller area network) bus systems.
Lower speed control modules use a LIN (local interconnect network) bus. Control modules on the LIN (local interconnect network) bus are generally configured to be master/slave i.e. one module controls other module(s).
The vehicle entertainment system uses a fibre optic bus system, which uses the MOST (media oriented systems transport) protocol for transmission of data and audio to the relevant components of the audio system.
