Rear Subframe Mount: Service and Repair



Uni-Body, Subframe and Mounting System - Rear Subframe Rear Bushing V8 5.0L Petrol/V8 S/C 5.0L Petrol/TDV6 3.0L Diesel/TD4 2.2L Diesel

Removal and Installation

Special Tool(s)







Forcing bolt 204-469







Reciever-bush 204-475







Replacer-bush 204-474







Remover bush 204-473







Remover support-bush 204-472

Removal

Vehicles with 3.0L diesel engine







1. For additional information, refer to: Rear Subframe - 3.0L Diesel.

Vehicles with 5.0L

2. For additional information, refer to: Rear Subframe - 5.0L. Service and Repair

All vehicles

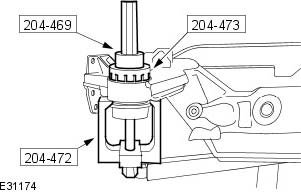

3. NOTE: Note the orientation of the bushing before removal.


Installation

All vehicles

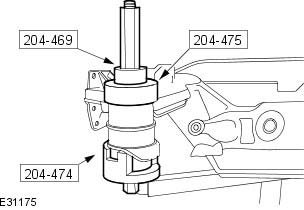

1. NOTE: Make sure the bushing is correctly orientated.







Vehicles with 5.0L

2. For additional information, refer to: Rear Subframe - 5.0L. Service and Repair

Vehicles with 3.0L diesel engine

3. For additional information, refer to: Rear Subframe - 3.0L Diesel.
