Rear Subframe Mount: Service and Repair



Uni-Body, Subframe and Mounting System - Rear Subframe Rear Bushing V8 5.0L Petrol/V8 S/C 5.0L Petrol/TDV6 3.0L Diesel

Removal and Installation







Forcing bolt 204-469







Receiver-bush 204-475







Replacer-bush 204-474







Remover bush 204-473







Remover support-bush 204-472


Removal

1. For additional information, refer to: Rear Subframe - 3.0L Diesel Service and Repair / Rear Subframe - 5.0L. Service and Repair

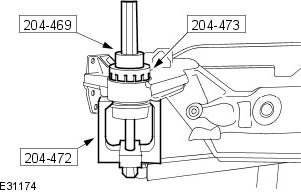

2.

Installation

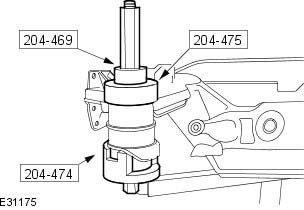

1. NOTE: Make sure the bushing is correctly orientated.

2. For additional information, refer to: Rear Subframe - 3.0L Diesel Service and Repair / Rear Subframe - 5.0L. Service and Repair
