Connecting Rod: Service and Repair

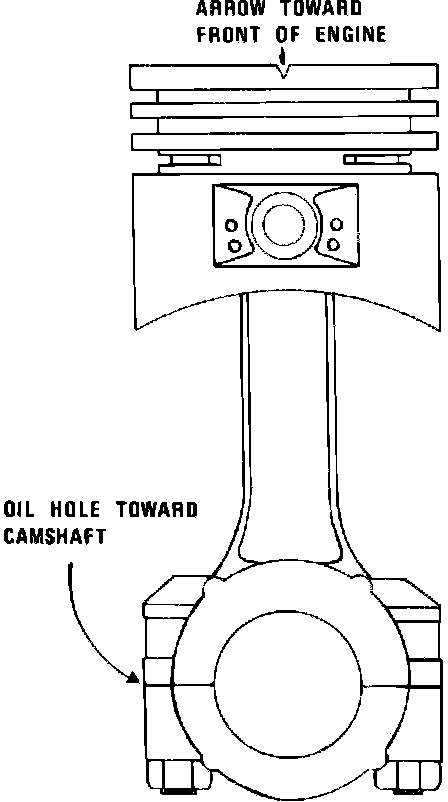

Fig. 13 Piston and rod assembly:






Pistons are marked with a depression notch on the top perimeter, Fig. 13. When installed in the engine this notch must face toward the front of engine. Always assemble rods and caps with the cylinder numbers or oil squirt holes facing the camshaft side of engine.
