Dual Air Injection System

Dual Air Injection System:

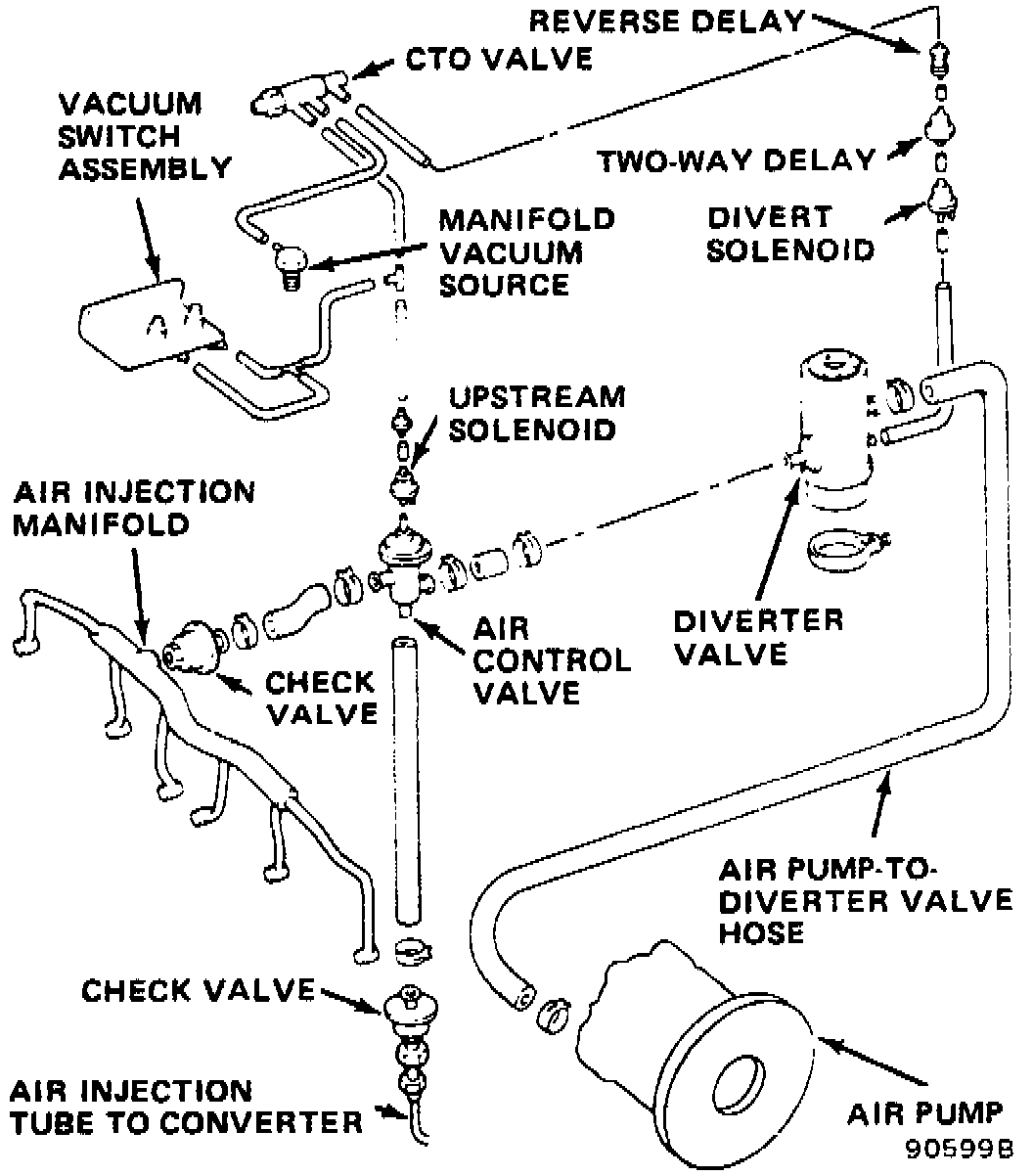

Dual Air Injection System 1982:

Some models equipped with six cylinder engines use a dual air injection system. In addition to the components found in the single air injection system, the dual injection system incorporates the following: 1981, air switch valve, coolant temperature override (CTO) valve and downstream air injection tube: 1982, divert and upstream solenoids, air control valve, coolant temperature switch, reverse and two-way delay valves and downstream air injection tube.
