Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1983
>>
Cherokee L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
Multiple Junction Connector

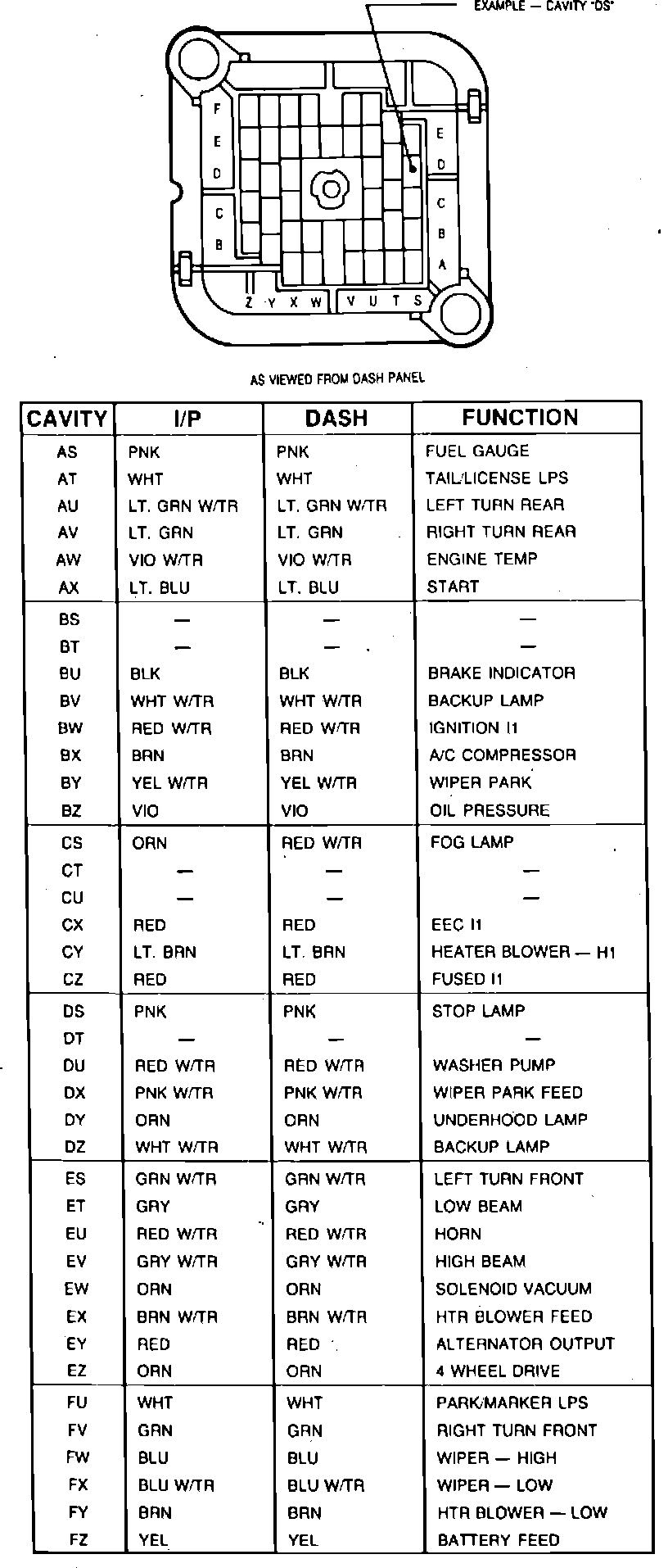

Fig. 3 Bulkhead Connector. 1983-84:
