Windows
Windows

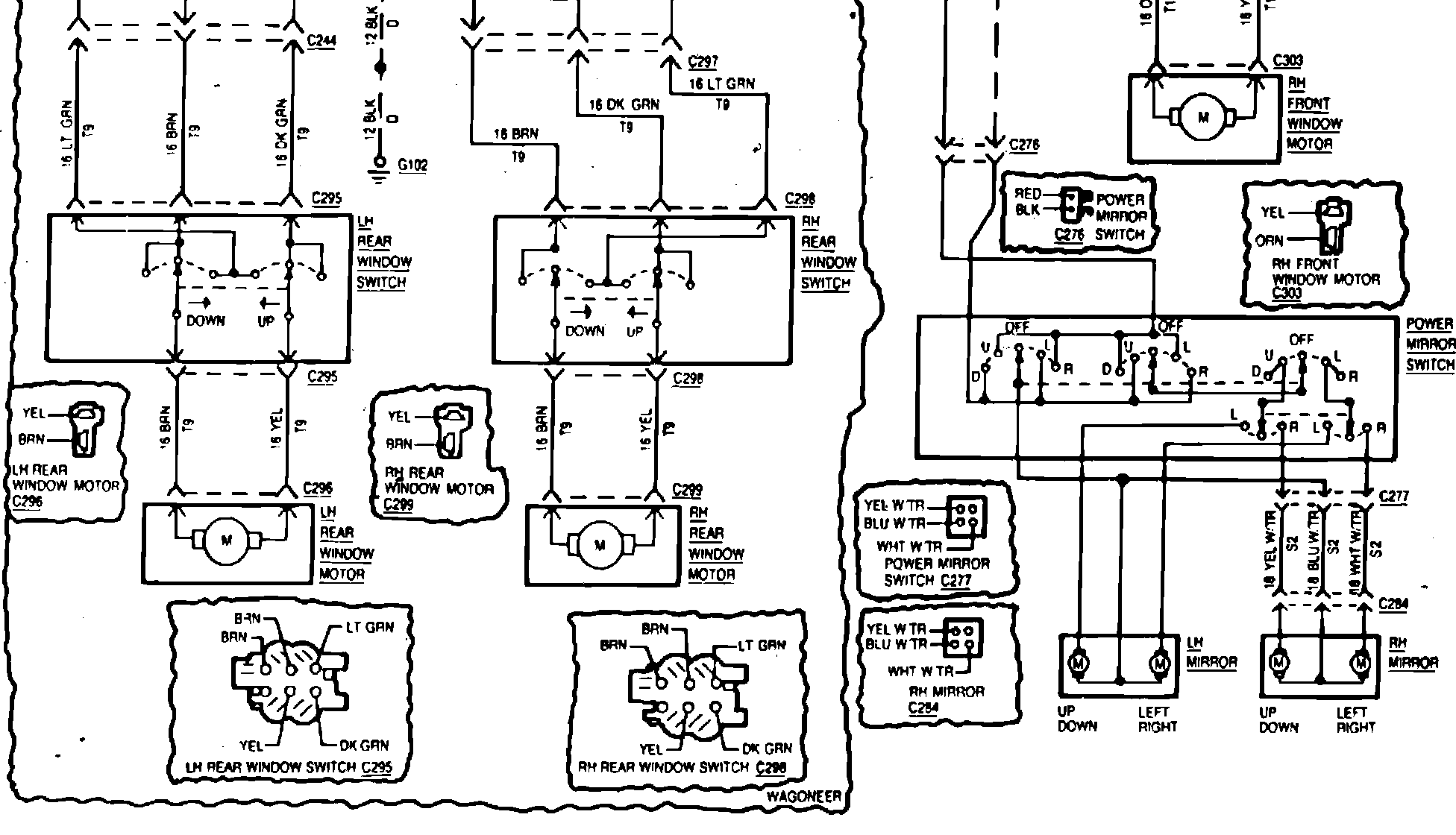

Fig. 9 Power Windows & Mirrors Wiring Circuit (Part 1 Of 2):

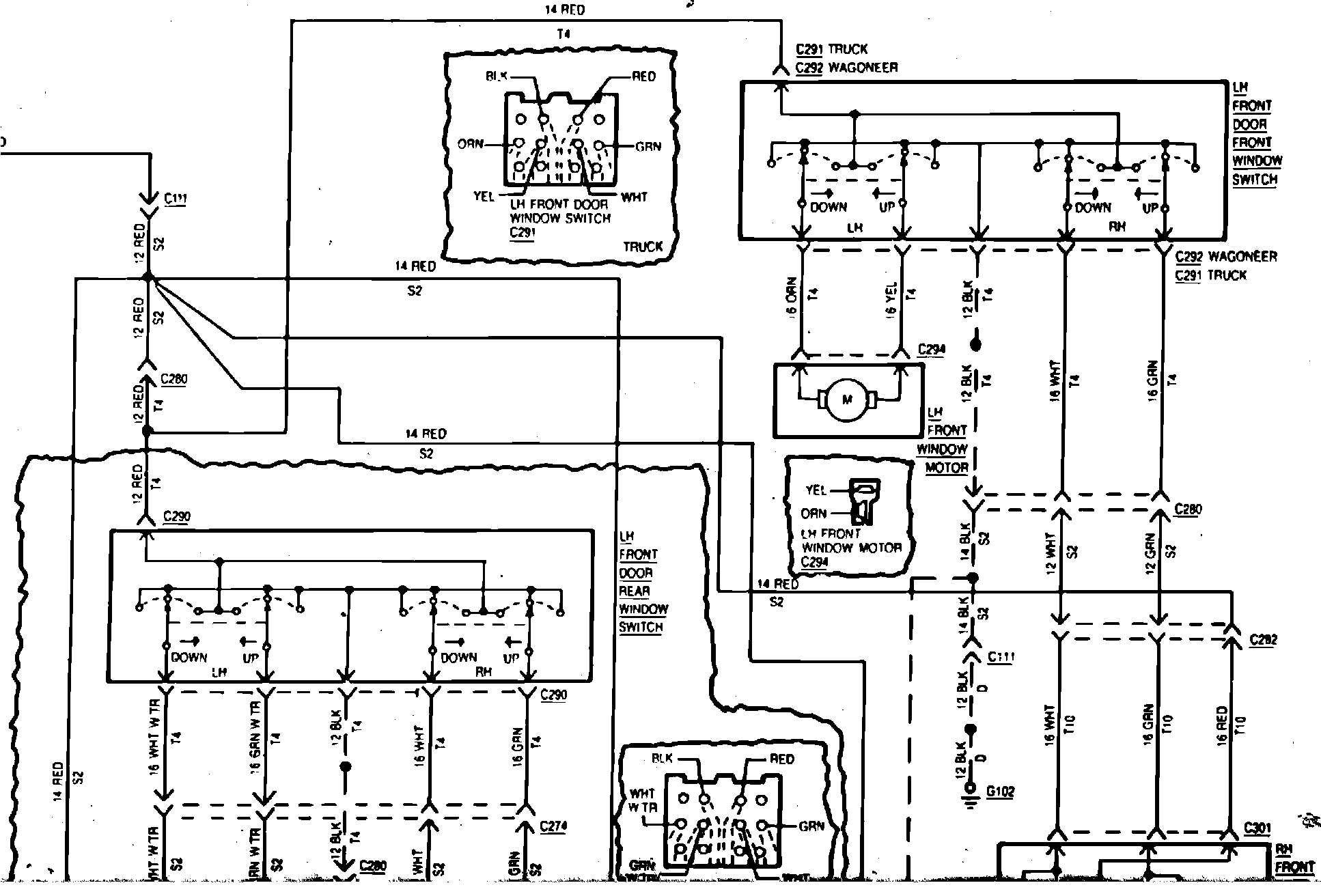

Fig. 9 Power Windows & Mirrors Wiring Circuit (Part 2 Of 2):
