Clearance and Design Specifications

specifications

Front and rear specifications

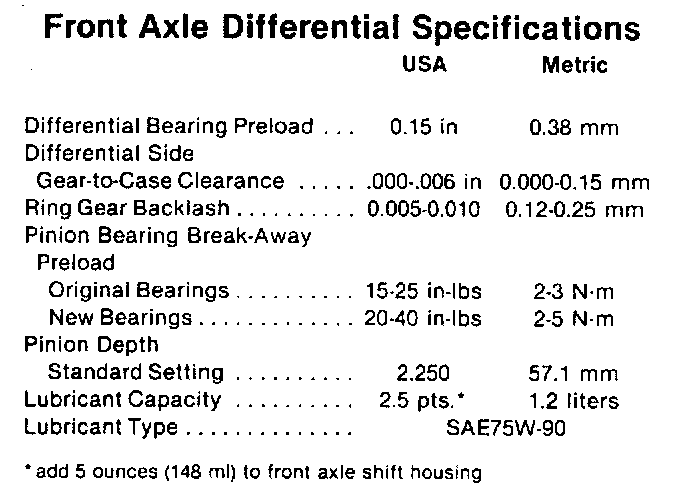

Front AXLE SPECIFICATIONS

General Specifications:





REAR AXLE SPECIFICATIONS

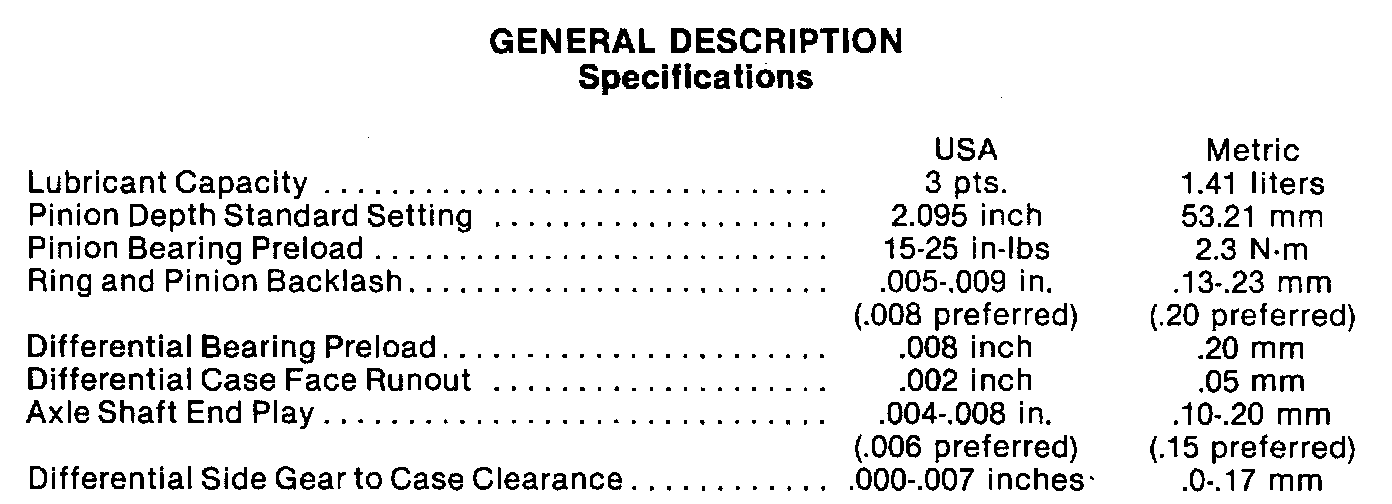

General Specifications:

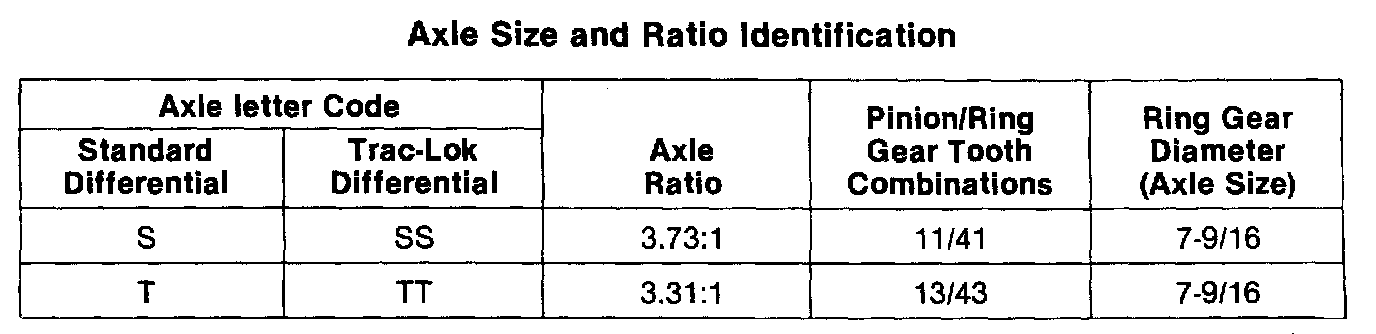

Rear Axle Size And Gear Ratio Identification:

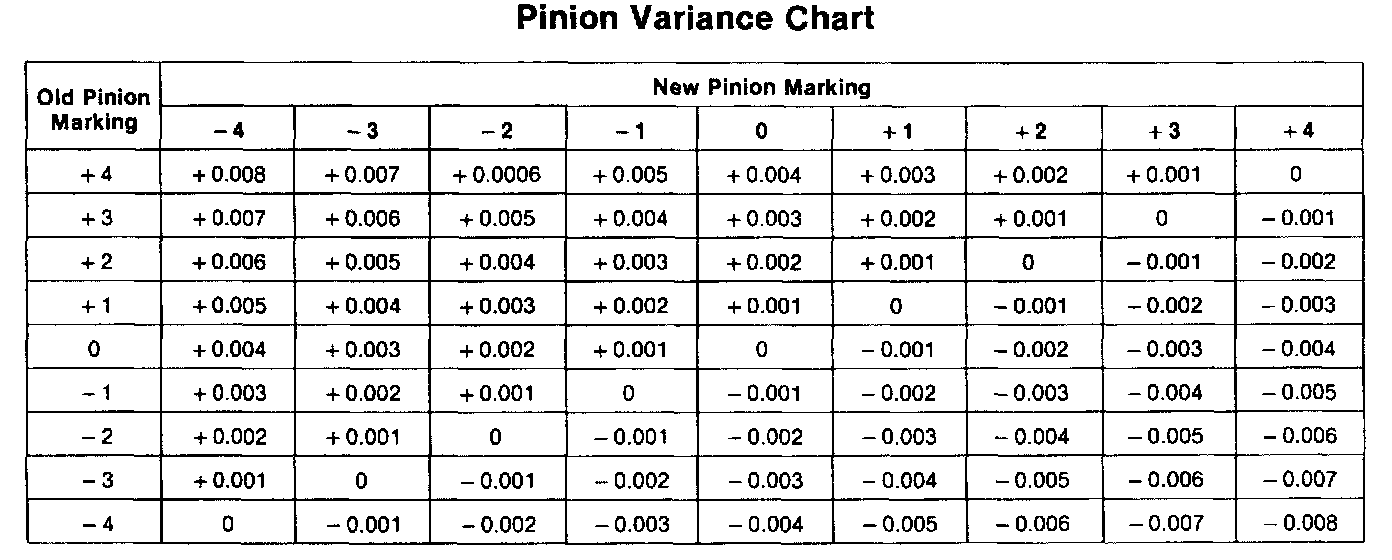

Pinion Variance Chart:
