Connecting Rod: Service and Repair

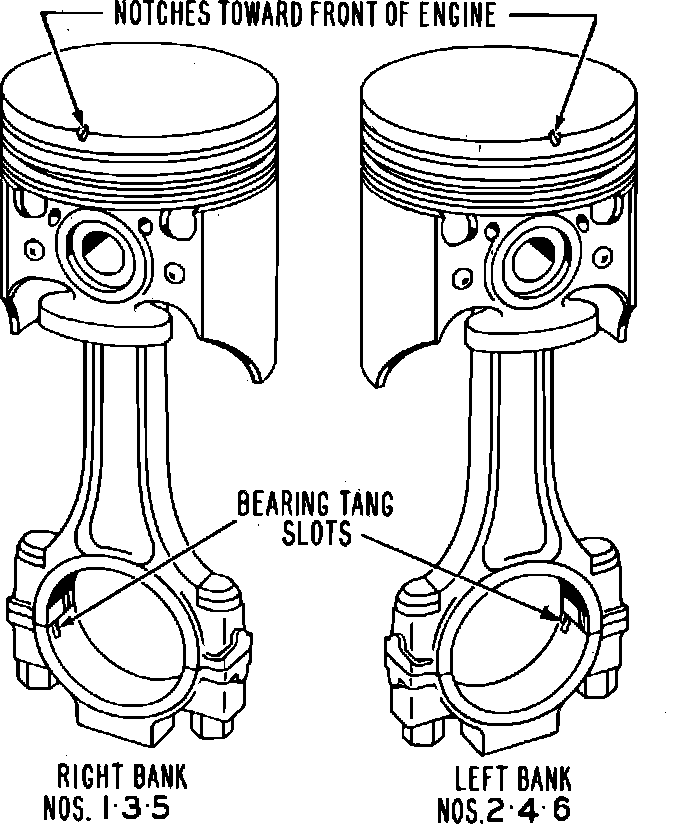

Fig. 19 Piston & rod assembly. V6-173:
V6-173 Assemble
piston to
connecting rod with notch on top of piston facing toward front of engine and
connecting rod bearing tang opposite
camshaft, as shown in
Fig. 19. Check side clearance between connecting rod and
crankshaft journal. Side clearance should be
0.006 - 0.017 inch.
