Service Manual Corrections
85amcjeep02NOVEMBER 1985 000 858
CHEROKEE/WAGONEER
9E
ELECTRICAL Attention: Workshop, Parts Department
SERVICE MANUAL CORRECTIONS
The MR 244 pages identified below need correction.
Please make the changes or alterations as described.
PROCEDURE
Page C-1 SPECIAL TOOLS
Write in the listing: Headlight Adapter, Special Tool J-25300-204, just below the Headlight Aimer tool listing in the Special Tool chart.
The Headlight Adapter is a recommended tool. Mark the appropriate column at the right.
Page C-84 STARTING SYSTEM-BOSCH
Voltage Drop
Draw a line through Fig. 100668A and write in the following information:
Battery cable voltage drop must not exceed 0.5V MAX. This is measured with the engine cranking and the ignition control module (ICM) disconnected.

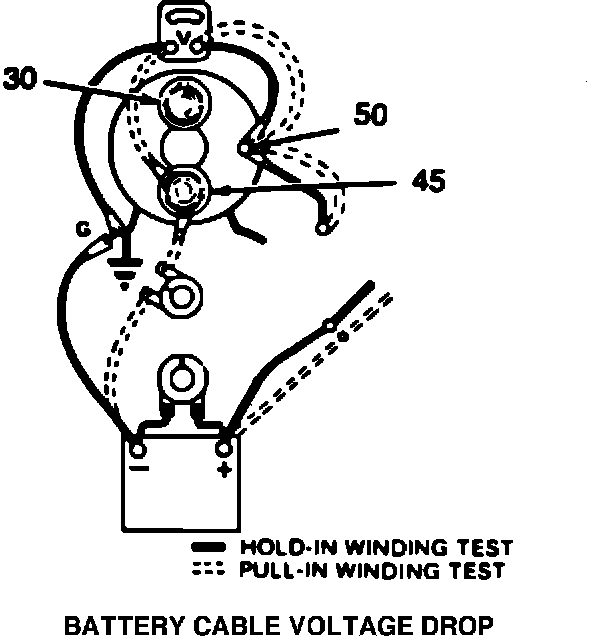

BATTERY CABLE VOLTAGE DROP:
Page C-84 STARTING SYSTEM-BOSCH
Place Fig. 84949A, provided with this I.S. Note, over Fig. 84949.

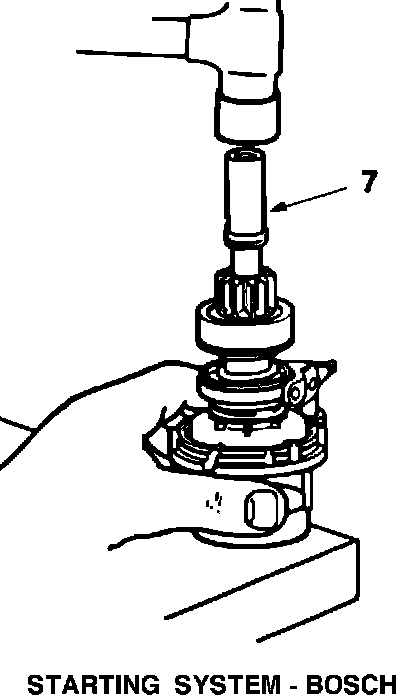

STARTING SYSTEM - BOSCH:
Page C-89 STARTING SYSTEM - BOSCH
Place Fig. 100676A, provided with this I.S. Note, over Fig. 100676.

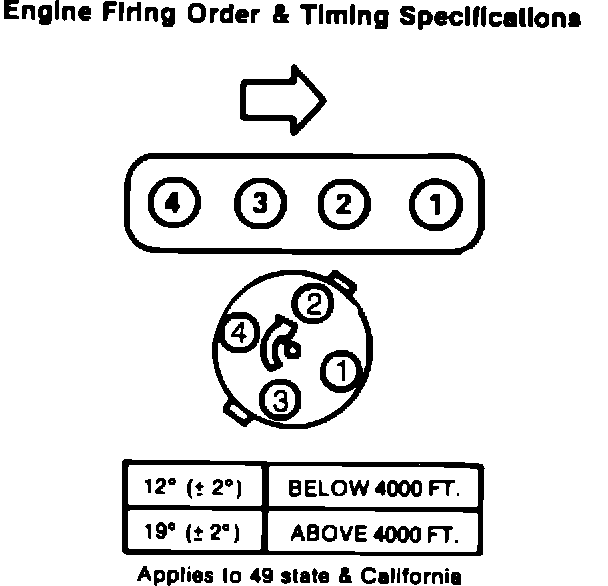

Engine Firing Order & Timing Specifications:
Page C-96 IGNITION SYSTEM - 1984/1985 FOUR-CYL. ENGINE
Firing Order in Fig. 84950A is incorrect. Place Fig. 84950B, provided in this I.S. Note, over Fig. 84950A.
Page C-110 IGNITION SYSTEM - 1986 FOUR-CYL. ENGINE
Electrode Gap information in the Spark Plug Specifications chart is incorrect. Cross out the old information and write in:
0.90 mm (0.035-in).
ENGINE FIRING ORDER:
Page C-111 IGNITION SYSTEM - 1986 FOUR-CYL. ENGINE
Fig. 84950A is incorrect.
Engine Firing Order should be:
1 - 3 - 4 - 2.
Place Fig. 84950D, provided with this I.S. Note, over Fig. 84950A.
Page C-112 IGNITION SYSTEM - 1986 FOUR-CYL. ENGINE
Cross out the word Output in Listing B of Fig. 86715A (Connector 2) and insert the word Input.
Page C-124 IGNITION SYSTEM - SIX-CYLINDER ENGINE

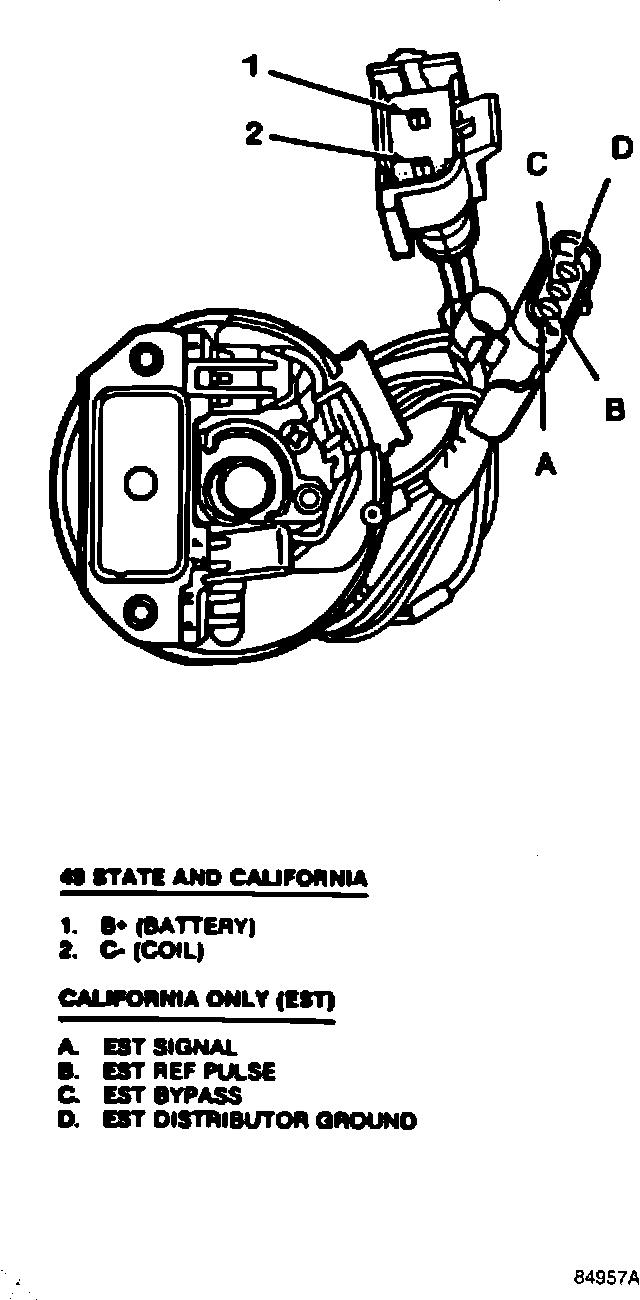

Fig. 84957 shows the wrong 49 State and California electronic control module (ECM). Place Fig. 84957A, provided with this I.S. Note, over Fig. 84957.
Column Wiring Harness Connector:
Page C-161 LIGHTING SYSTEMS

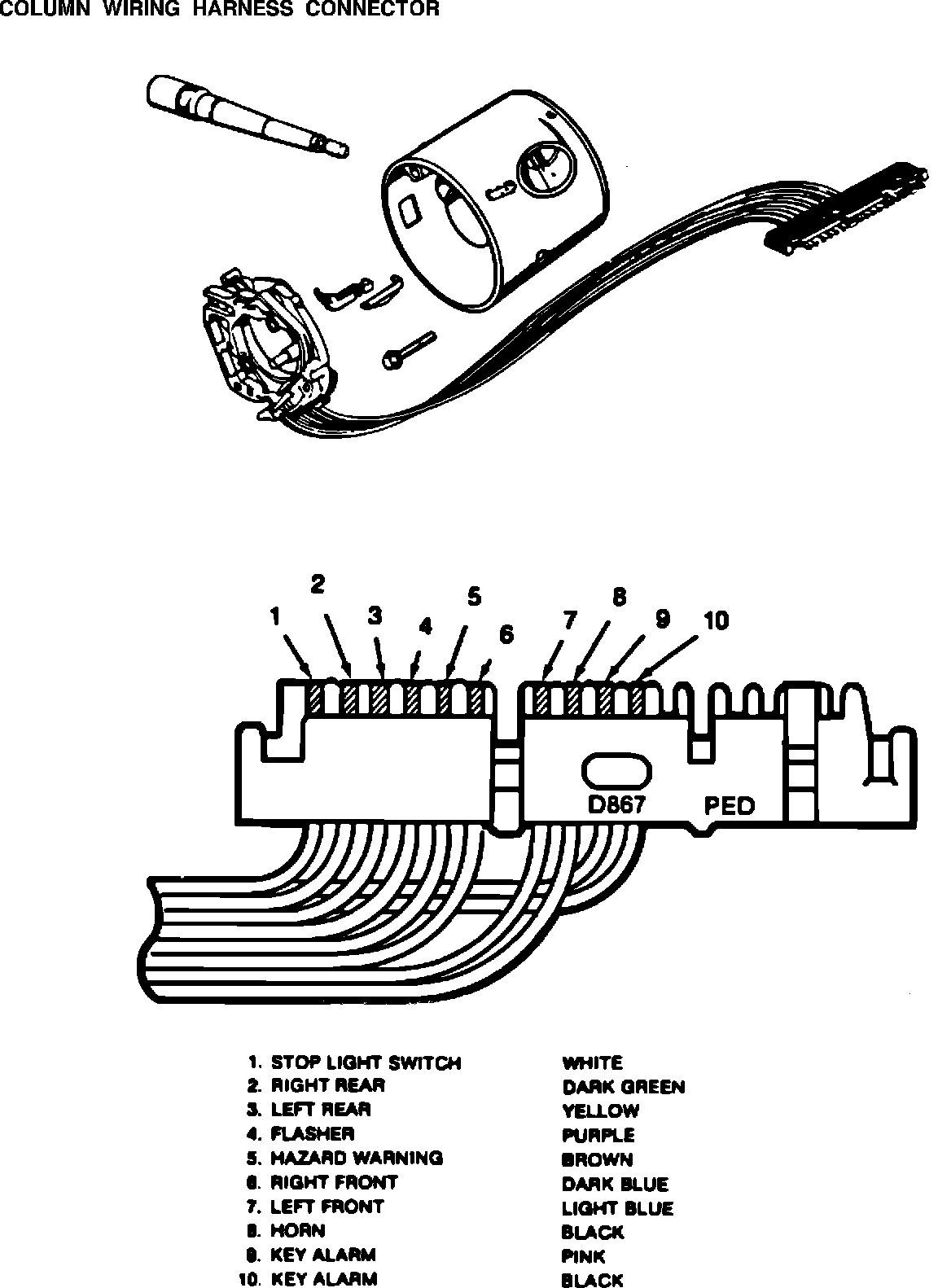

Figure 84995 shows the wrong exploded view of the steering column wiring harness connector. Place Fig. 84995A, provided with this I.S. Note, over Fig. 84995 (see next page for art).
Page C-166 IGNITION SWITCH
Fig. 85000 should have the heading: With Tilt Column.
Locate art in MR and write that heading above it.
KEYLESS ENTRY SYSTEM:
Page C-185 KEYLESS ENTRY SYSTEM

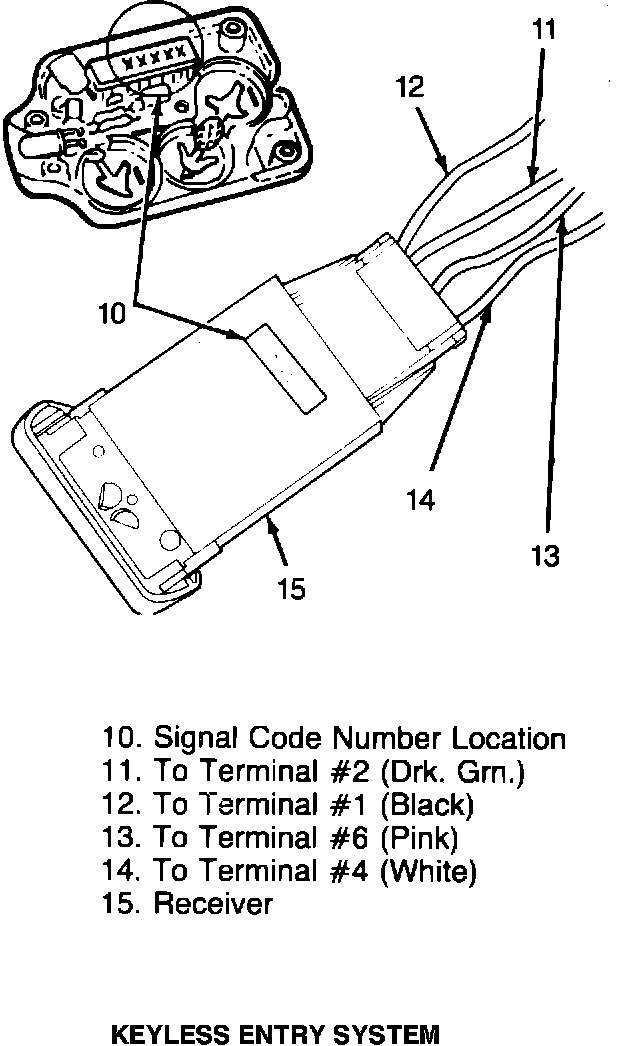

Fig. 100712 has several changes. Place Fig. 100712A, provided with this I.S. Note, over Fig. 100712.

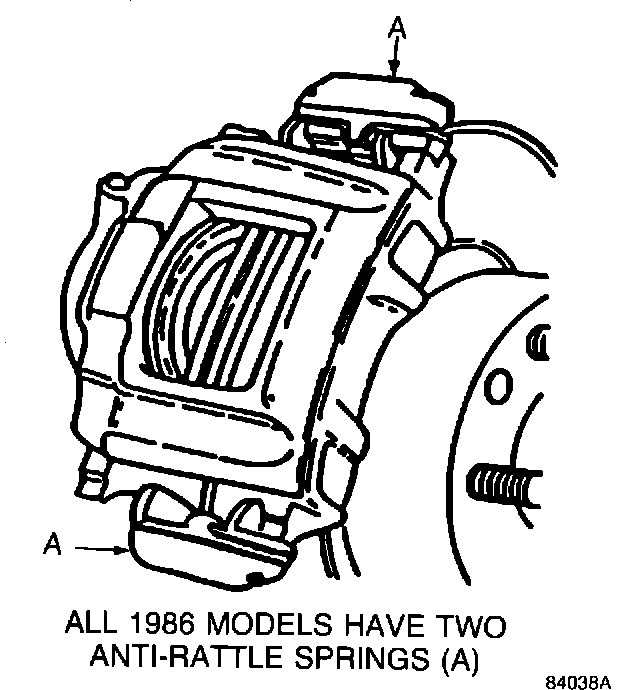

ALL 1986 MODELS HAVE TWO ANTI-RATTLE SPRINGS (A):
Page K-22 BRAKE SYSTEM
Fig. 84038A was omitted from the copy on this page. Place it on the space in the right hand column after the line which reads:
"Correct the fluid lever if necessary."
FILING INSTRUCTIONS
Peel off the back of the enclosed art and place over the incorrect ones.
Record information on appropriate pages and file in MR 244 manual.
