M/T - Upshift Indicator Light

85amcjeep03

MARCH 1985 000 671
1985 CHEROKEE/WAGONEER 70 SERIES
41E
GEARBOXES Attention: Workshop, Parts Department


UPSHIFT INDICATOR LIGHT

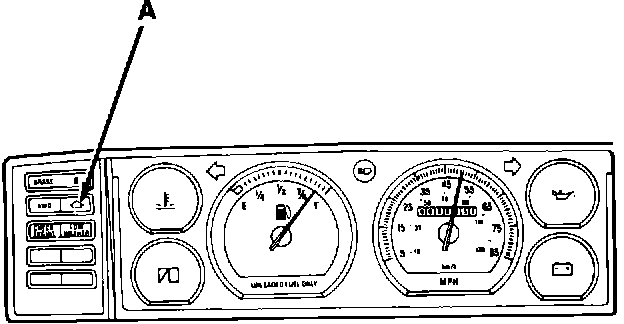

Fig. 1 Upshift Indicator Light Location:

1985 Cherokee/Wagoneer 70 Series models with 4-cylinder engine and AX4 or AX5 manual transmission are equipped with an upshift indicator light. The light (A) is in the left side of the instrument cluster near the coolant warning light (Fig. 1).


The purpose of the upshift indicator light is to help the driver achieve maximum fuel economy. The light signals the driver when to shift to the next higher gear for best economy.

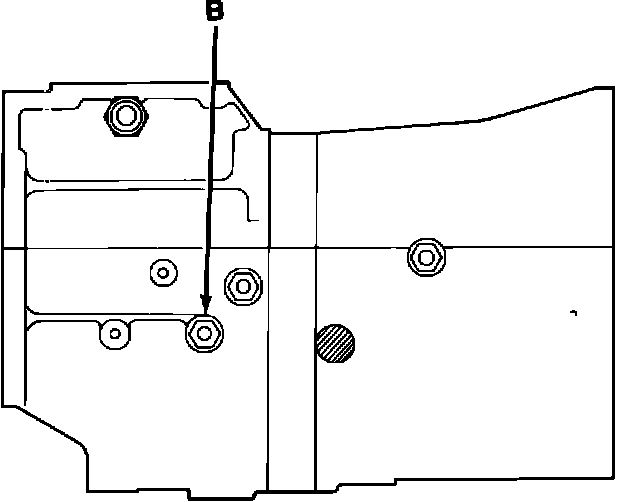

Fig. 2 Upshift Switch Location:

UPSHIFT INDICATOR LIGHT DIAGNOSIS


Upshift indicator light operation, circuitry and diagnosis are detailed in the 1984 and 1985 Cherokee/Wagoneer Electrical Troubleshooting Manuals. If, on some vehicles, the indicator light remains on in top gear, check the upshift switch (B) in the transmission (Fig. 2) as follows:
1. Inspect the upshift switch for a washer.


a. If the switch does have a washer on it, proceed to step 2.


b. If the switch does not have a washer on it, proceed to step 4.
2. Remove the upshift switch from the transmission case. Discard the washer and reinstall the switch in the case.


3. Reconnect the switch wires and check and adjust transmission lubricant level.


4. Verify upshift switch operation with an ohmmeter. The switch should only be open in top gear.
SRT INFORMATION


OPERATION DESCRIPTION NUMBER TIME TIC


CO. SWITCH, UPSHIFT - R & R
(Inc. remove washer and verify switch


operation) 0803 0.3 8-661


Filing Instructions


^ Record this I.S. Note on page E-4.


^ File it in the M.R. 244 binder.
