Starter Relay: Locations

tg�:

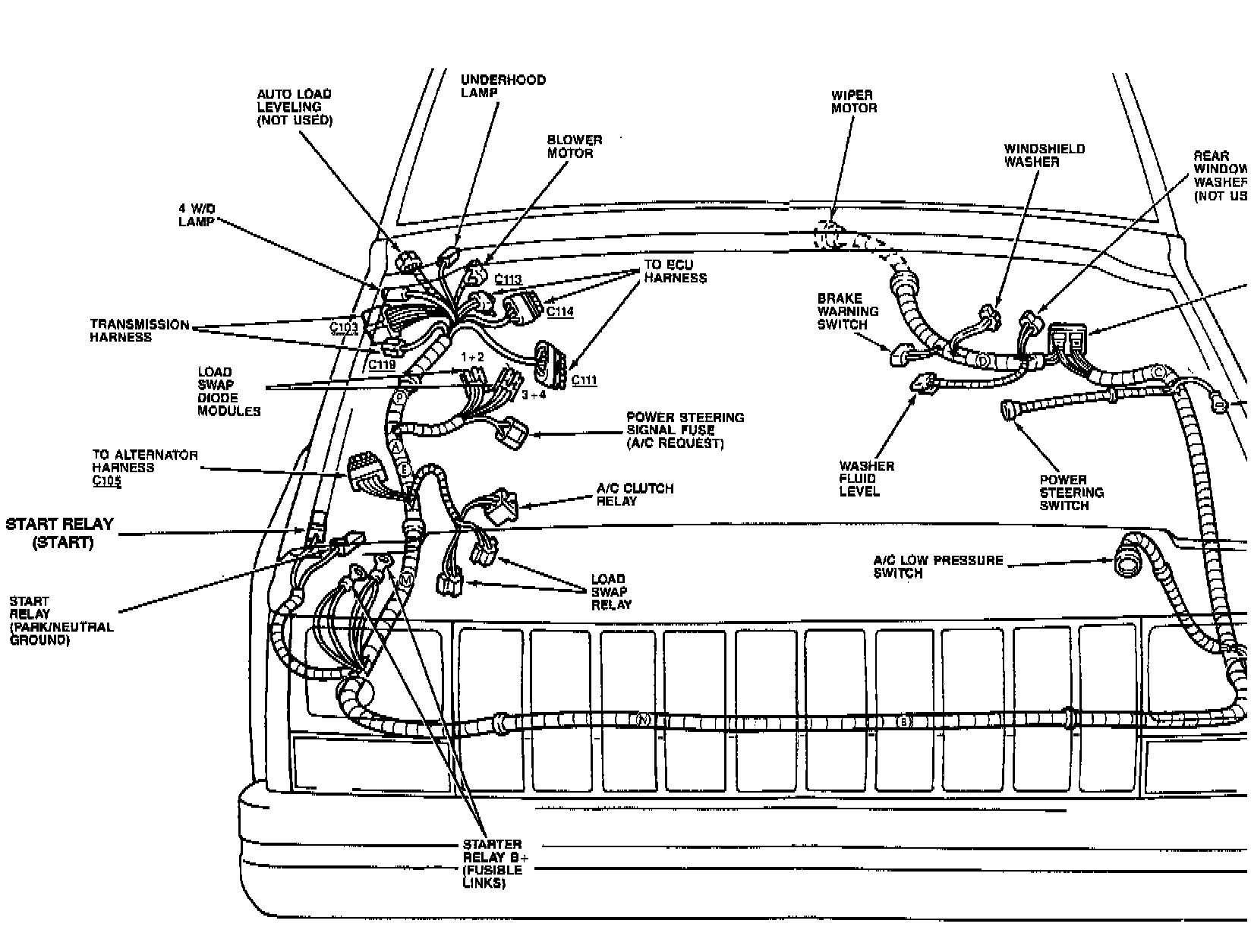

The starter relay is located in the right front corner of the engine
compartment.
