Refrigerant Temperature Sensor: Testing and Inspection

Thermistor Probe Test

1. Disconnect the wiring harness from the control module.

A/C Module Schematic:

2. Measure the resistance between terminals 1 and 2 of the wiring harness.
3. Compare this measurement with the Thermistor Temperature/Resistance Chart.

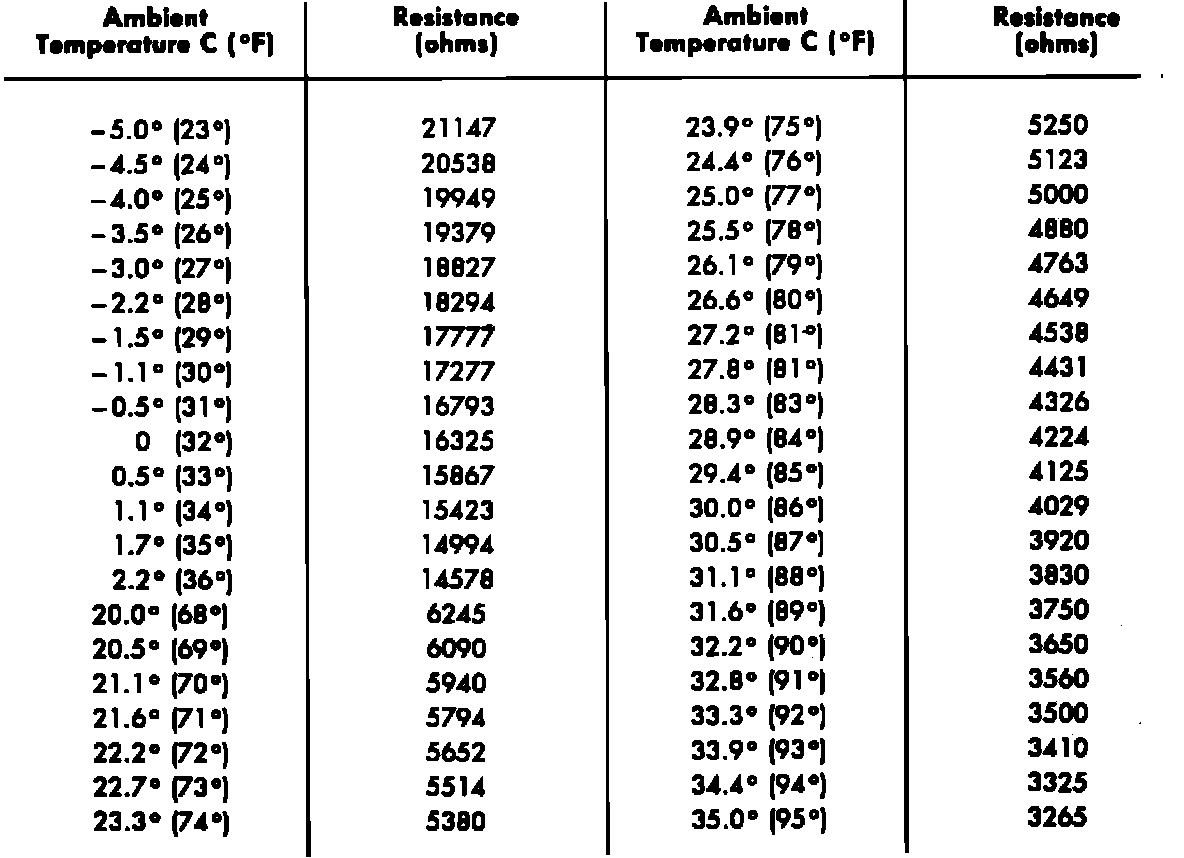

Thermistor Temperature/Resistance Chart:

- If the measured resistance is incorrect according to the chart, replace the thermistor probe.
