4.2L Using Special Magnetic Probe

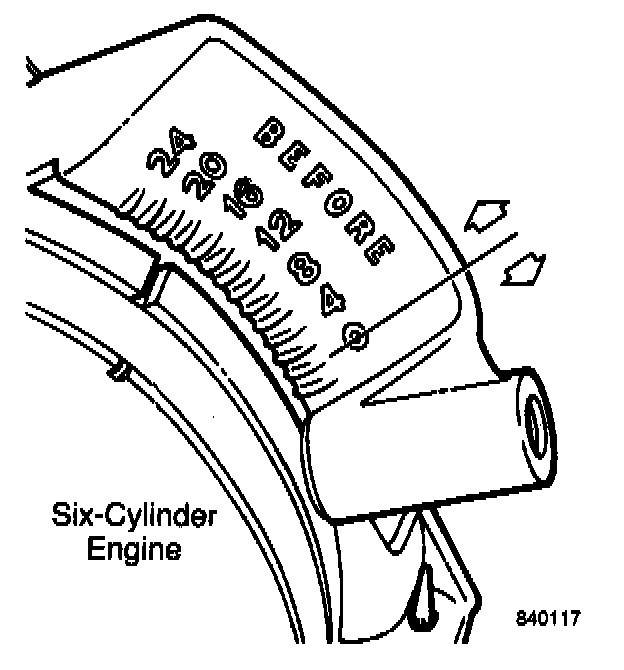

A magnetic timing probe socket is provided integral with the timing degree scale for use with a special magnetic timing probe.
This special probe detects the milled notch on the vibration damper.

- The probe is inserted through the probe socket until it contacts the vibration damper.
- Ignition timing can then be obtained from a meter or computer printout, depending on the type of equipment being used.
- The probe socket is located at 9.5 degrees ATDC, and the equipment is calibrated to compensate for this location.

Note: Do not use the timing probe socket as a reference to check the ignition timing when using a conventional timing light.
