Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1988
>>
Wrangler L4-150 2.5L VIN H TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>

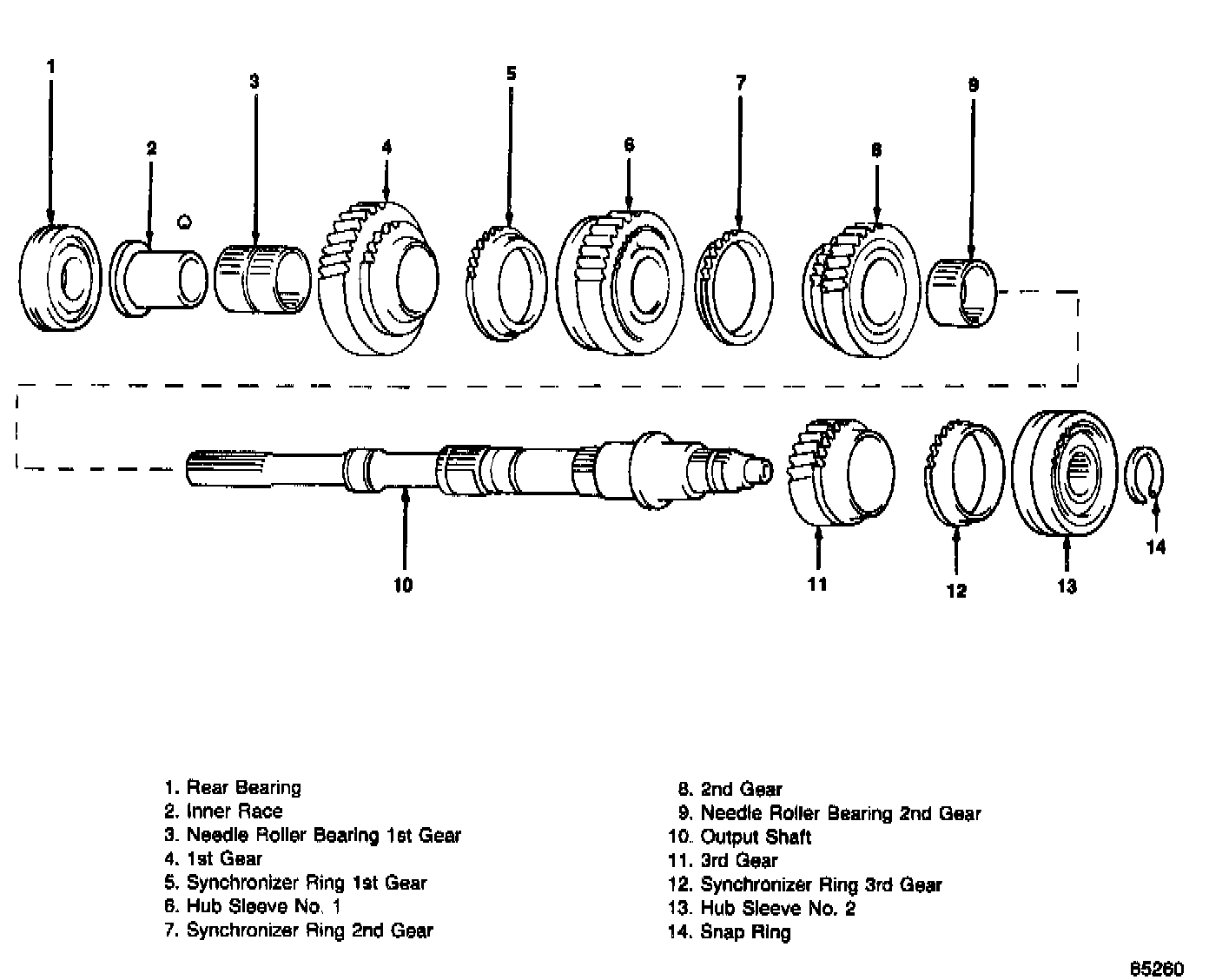

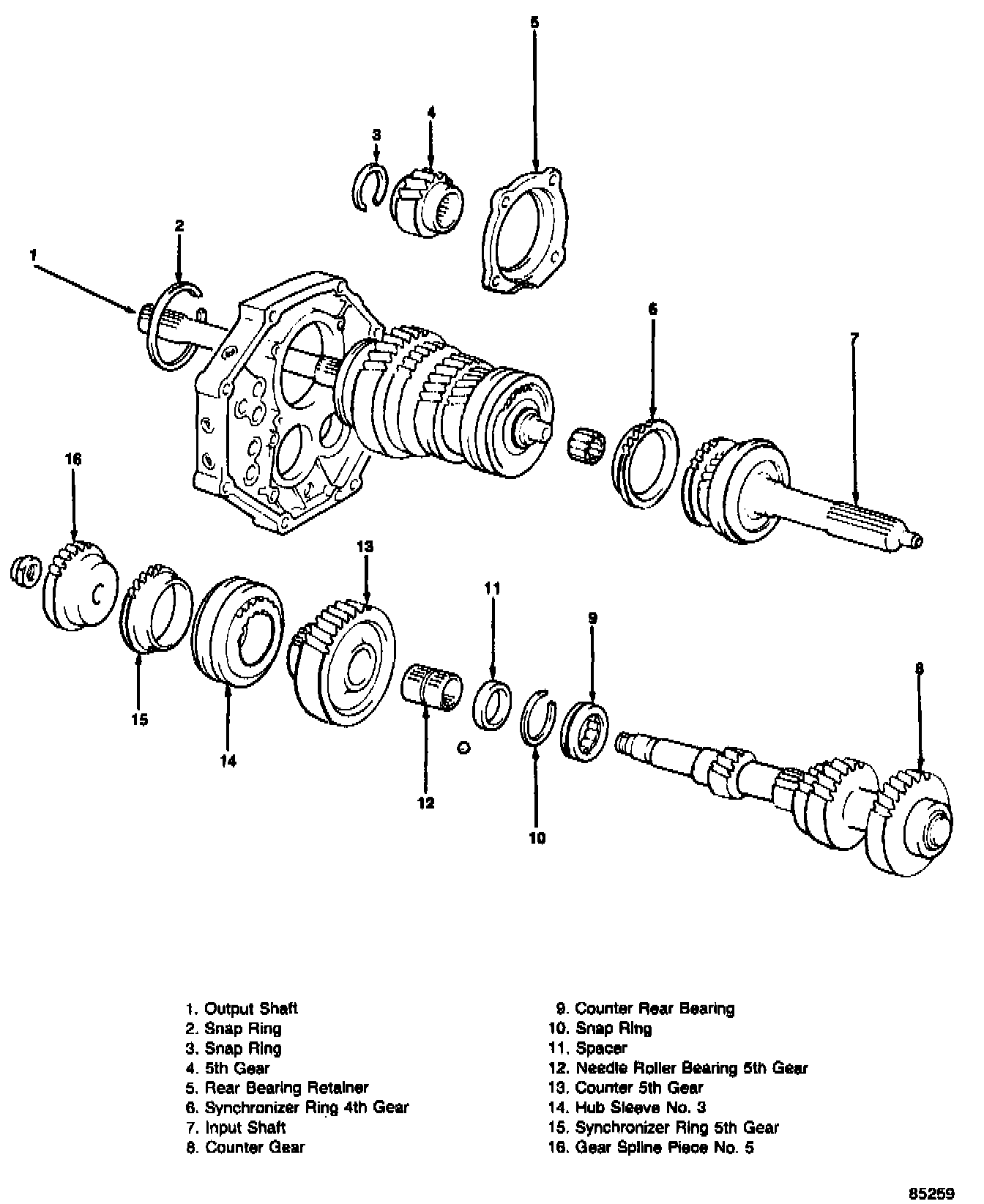

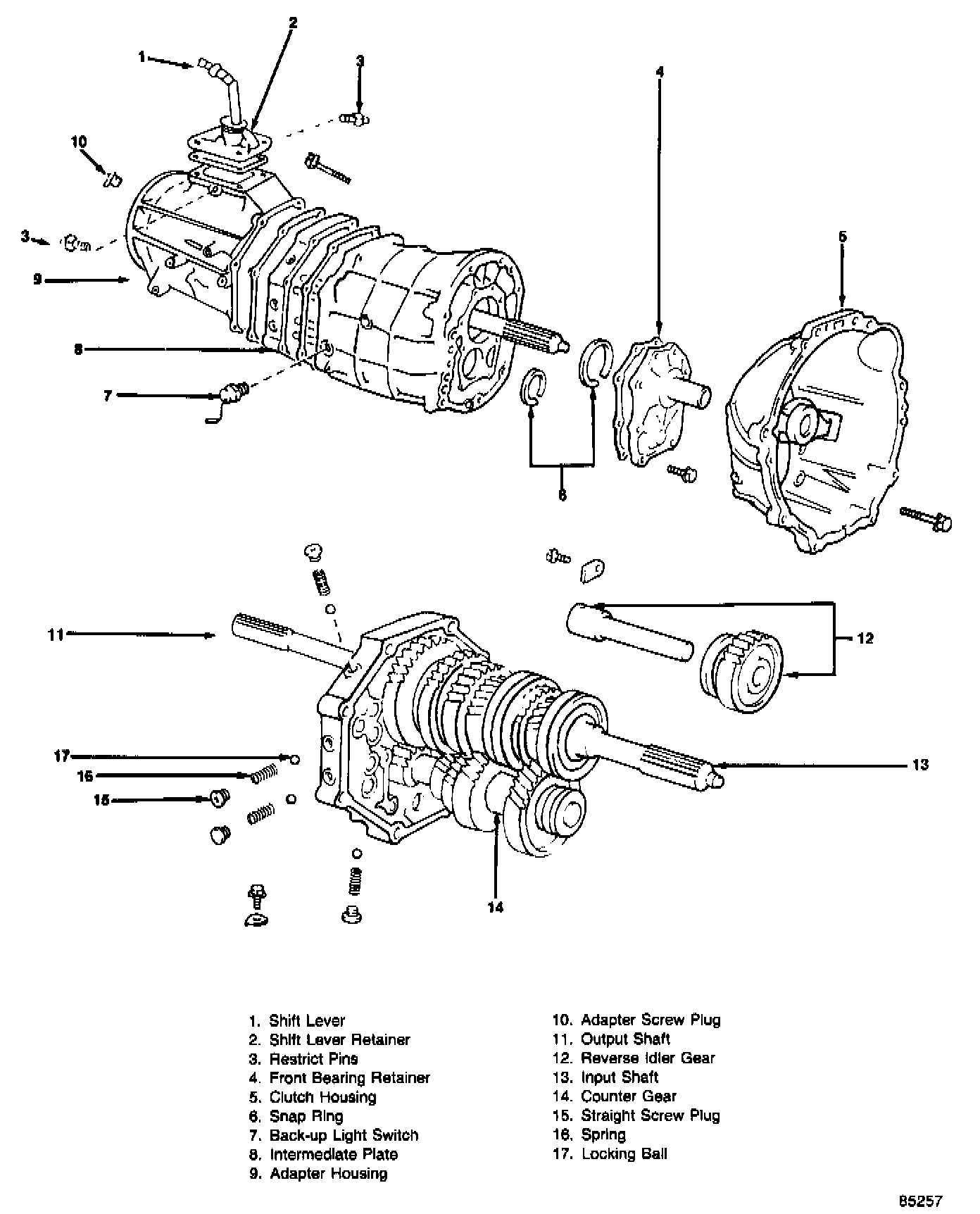

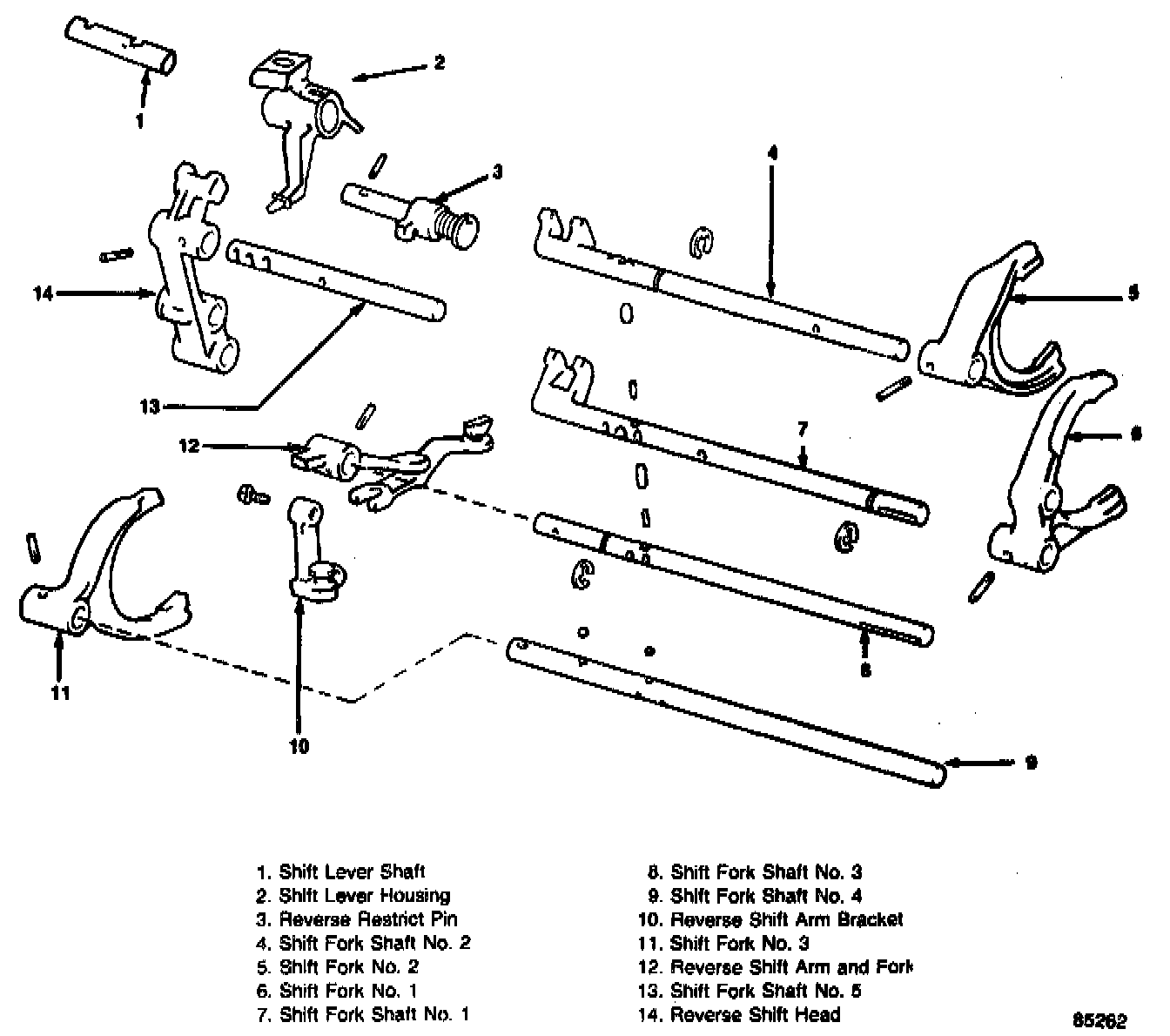

AX5 Transmission - Exploded Views
AX5 Transmission - Exploded Views
