Maintenance Timer Fuse Installation

Figure 1:

EMISSIONS MAINTENANCE TIMER FUSE INSTALLATION INSTRUCTIONS


1. Find the fuse panel located beneath the instrument panel to the left of the steering column as shown in Figure 1.

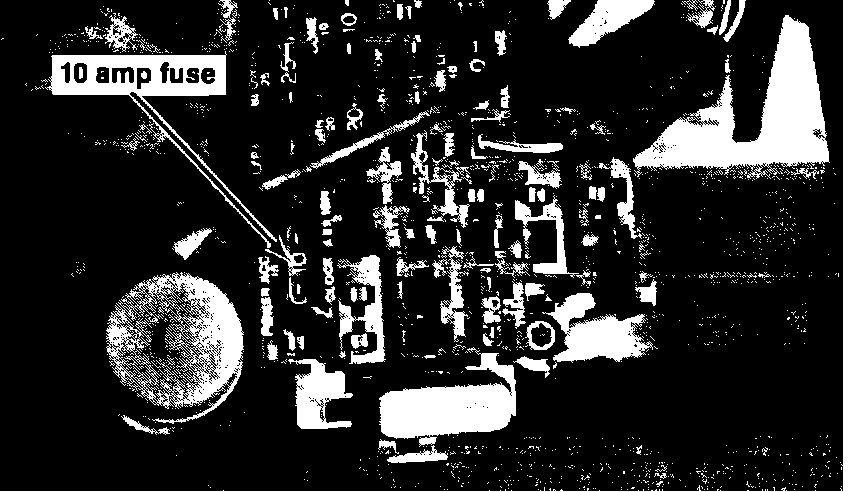

Figure 2:

2. Locate the 10 amp fuse cavity next to the turn signal flasher. The cavity is located between the words PWR ACC and CLOCK. The word CLOCK will likely be blocked out (Figure 2).
3. If the cavity contains a red 10 amp fuse, no further action is required.

4. If the cavity is empty, install the provided 10 amp blade-type fuse.
