Service Procedure

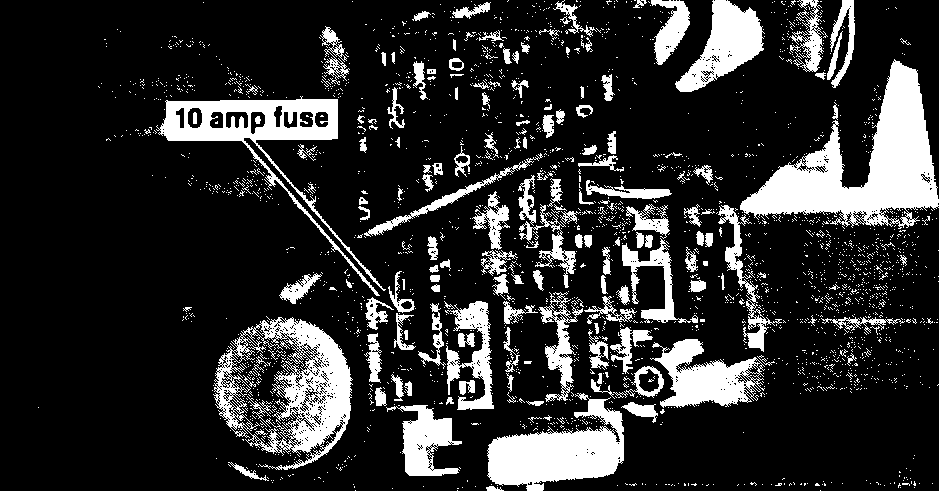

Figure 1:

1. Find the fuse panel located beneath the instrument panel to the left of the steering column.

2. Locate the 10 amp fuse cavity next to the turn signal flasher. The cavity is located between the words PWR ACC and CLOCK. The word CLOCK will likely be blocked out (Figure 1).
3. If the cavity contains a red 10 amp fuse,no furtheraction is required.

4. If the cavity is empty, install a 10 amp blade-type fuse.
