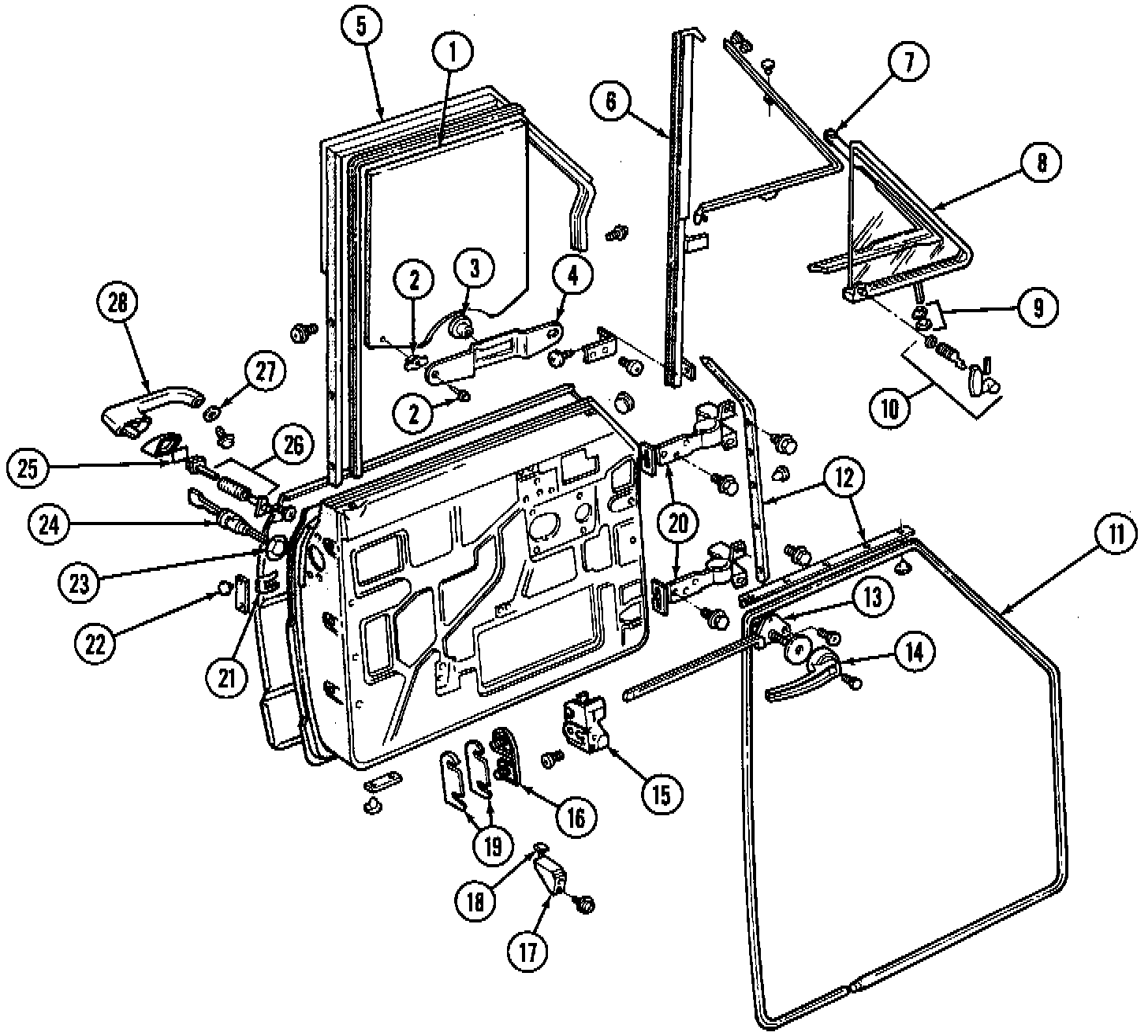

Front Door

Front Door Components:

1 Door Glass
2 Glass Retaining Screw and Nut
3 Track Retainer
4 Lift Bracket
5 Frame
6 Division Channel and Bracket
7 Weatherstrip
8 Vent Glass and Frame
9 Pivot Assembly
10 Vent Handle Assembly
11 Weatherstrip
12 Shields
13 Remote Control
14 Handle
15 Latch
16 Striker
17 Stop Bracket
18 Bumper
19 Shims
20 Hinge
21 Lock Cylinder Retainer
22 Pin
23 Gasket
24 Lock Cylinder
25 Gaskets
26 Push Button Mechanism
27 Handle Gasket
28 Door Handle
