Tailgate: Service and Repair

TAILGATE LOCK CYLINDER REMOVAL
1. Open the tailgate.

Tailgate Latch Mechanism:





2. Remove the latch cover.

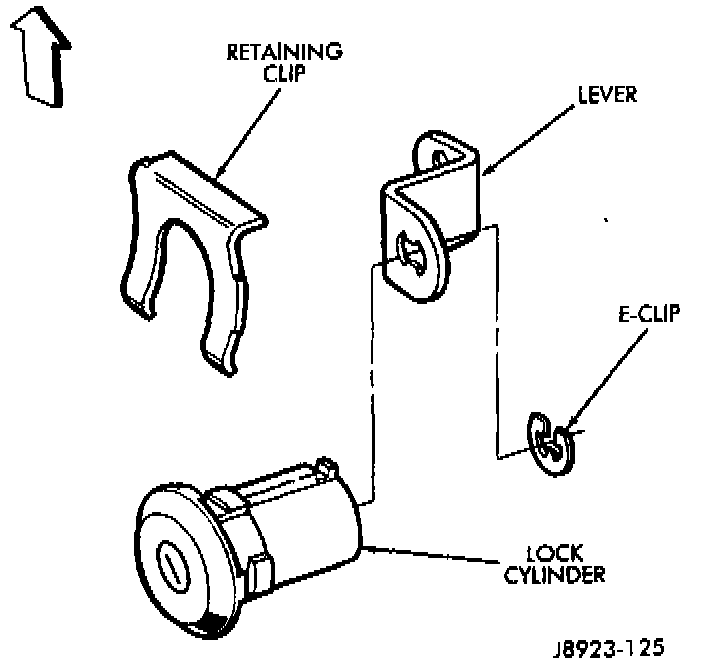

Lock Cylinder Removal/Installation:





3. Remove the cylinder retaining clip.
4. Disengage the lock cylinder.
5. Remove the E-clip and disengage the cylinder from the lever.

TAILGATE LOCK CYLINDER INSTALLATION
1. Inspect the retaining clips. Replace the clips if distorted or damaged.
2. Connect the cylinder and lever and install the cylinder in the latch and tailgate.
3. Install the cylinder retaining clip.
