Alarm Module: Service and Repair

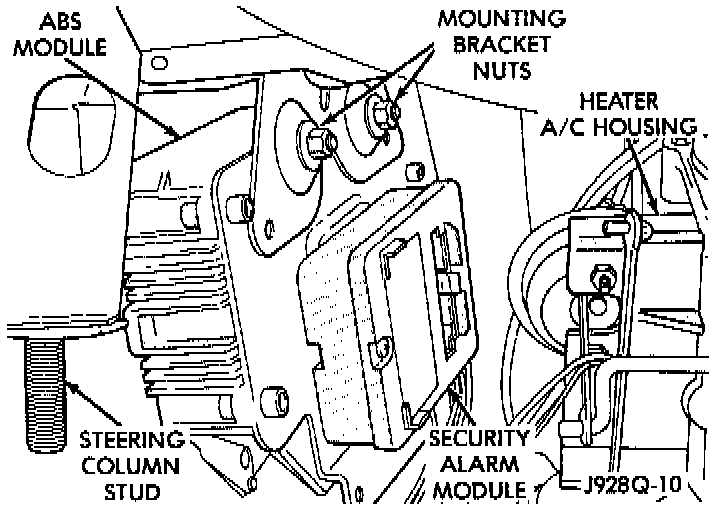

Security System Module Location:

1. Remove two nuts holding the bracket that mounts the ABS module (if equipped) and SAM module. The bracket is on the drivers side of the Heater-A/C Housing.

ABS Module:

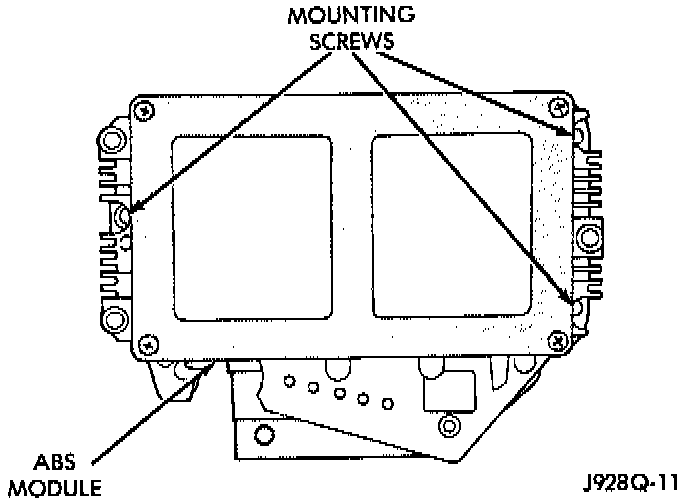

2. Remove 3 recessed alien head screws holding the ABS module to the bracket (if equipped).

SAM Module:

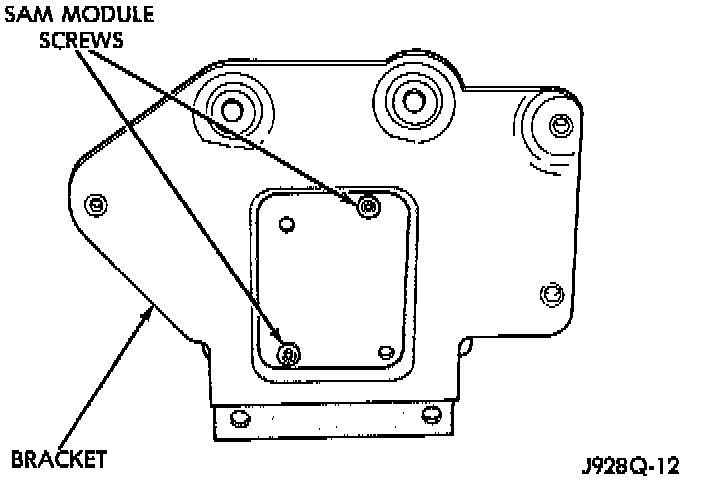

3. Remove 2 torx head screws holding the SAM module to the bracket.
4. Disconnect the electrical connector from the SAM module.
5. For installation, reverse the removal procedures.
