W/O Overhead Console
(1)

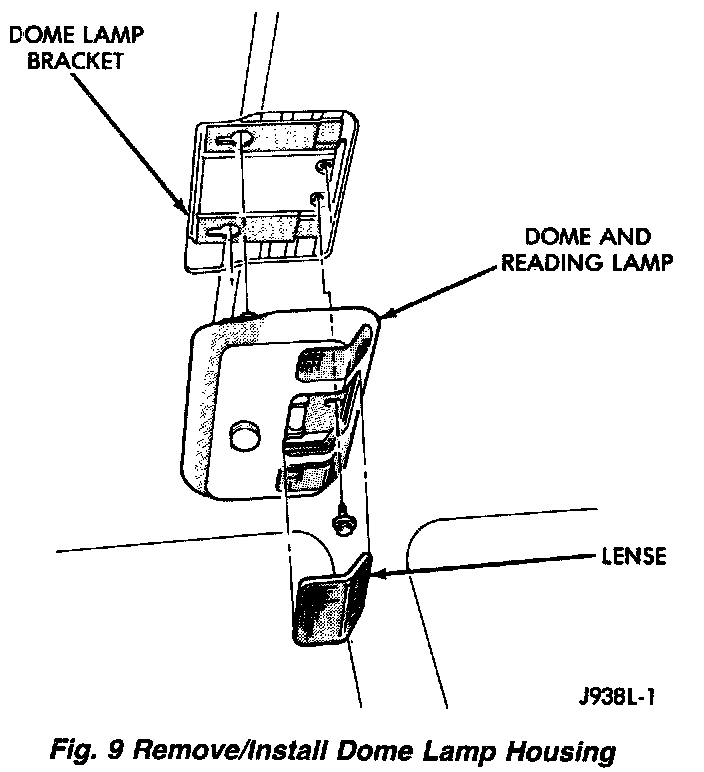

Remove 1 screw attaching the dome lamp housing to the roof.
(2)
Push the housing toward the front of the vehicle to disengage retainers.
(3)
Unplug the harness connectors.
(4)
Release the circuit board connector from its mounting location.
(5)
Remove circuit board from housing.
(6)
Reverse the removal procedures to install the receiver.
