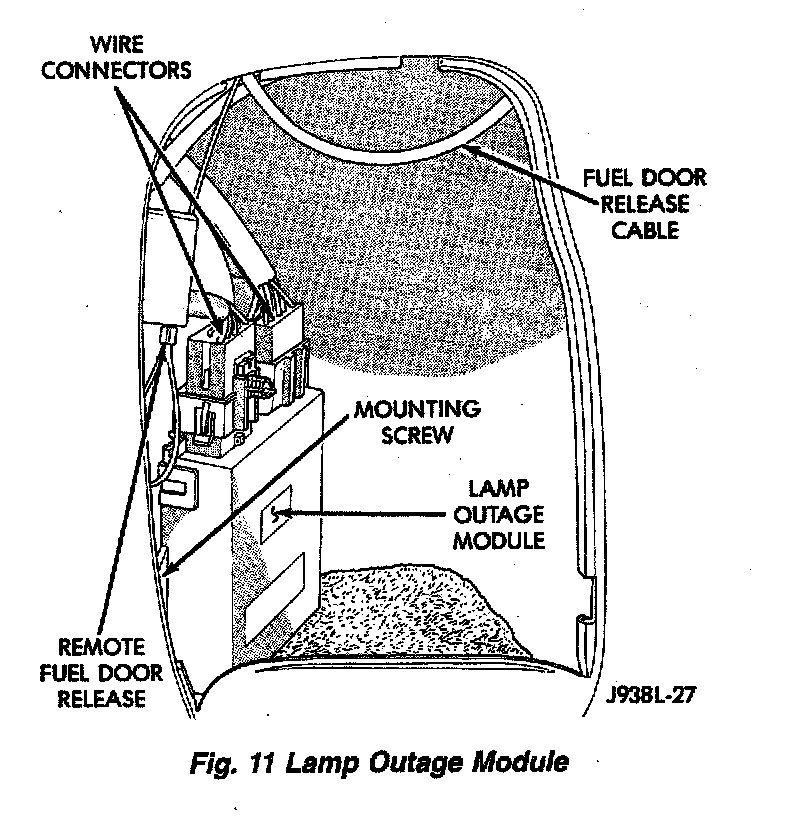

Lamp Out Module: Service and Repair
REMOVAL 1.
Remove battery negative cable.
2.
Remove spare tire from carrier.
3.
Remove access door.
4.
Remove, wiring connectors at top of module.
5.
Remove 1 screw holding module to inner quarter panel.
6.
Remove
lamp outage module.
For installation, reverse the removal procedure.
