Campaign - ABS Brake Controller
No. 598November, 1993
To: All Jeep(R) & Eagle Dealers
Subject:
Customer Satisfaction Notification # 598 -- ABS Brake Controller
Models:
1993 and 1994 Model Year Jeep Wrangler (YJ) Vehicles Equipped With Anti-lock Brakes (ABS) Built Through August 17, 1993
Repeated voltage spikes (generated by turning the ignition switch off when the A/C and/or heater blower switch is in the low position), gradually cause the ABS controller to short circuit and blow the ABS lamp relay fuse. This results in illumination of the yellow ABS lamp and disabling the ABS system.
To correct this condition, a jumper harness containing a diode must be installed in the blower motor wiring harness.
Details of this service action are explained in the following sections.
Service Procedure Videotape
No videotape of the service procedure for this notification will be provided.
Dealer Notification & Vehicle List
Involved dealers: Each dealer to whom involved vehicles were invoiced (or the current dealer at the same street address) will receive a copy of this dealer notification letter and a list of the involved vehicles by first class mail.
The Vehicle List is arranged in Vehicle Identification Number (VIN) sequence. Owners known to Chrysler are also listed. The lists are for dealer reference in arranging for service of involved vehicles.
All other dealers: Each Jeep & Eagle dealer who does not receive a Vehicle List will receive a copy of this dealer notification letter by first class mail.
DIAL System Function 70
All involved vehicles will be entered to DIAL System Function 70 at the time of notification implementation for dealer inquiry by VIN as needed.
Parts
Important:
A quantity of parts will be distributed initially and billed to all involved dealers. This quantity will cover a portion of the total vehicles involved. Additional parts may be ordered as needed to support customer demand.
Each involved dealer, to whom vehicles in the notification were invoiced (or the current dealer at the same street address), will receive enough Jumper Harness Packages, PN C3905980, to service 25% of those vehicles.
Each parts package contains the following components:
Quantity Description
1 Jumper Harness
1 Instruction Sheet
Owner Notification and Service Scheduling
All involved vehicle owners known to Chrysler are being notified of the service requirement by first class mail. They are requested to schedule appointments for the service with their dealers at the earliest possible date. A copy of the owner notification letter is included.
Enclosed with each owner notification is an Owner Notification Form. The involved vehicle and notification are identified on the form for owner or dealer reference as needed.
Service Procedure
A. Install Jumper Harness (Vehicles Equipped with Air Conditioning):

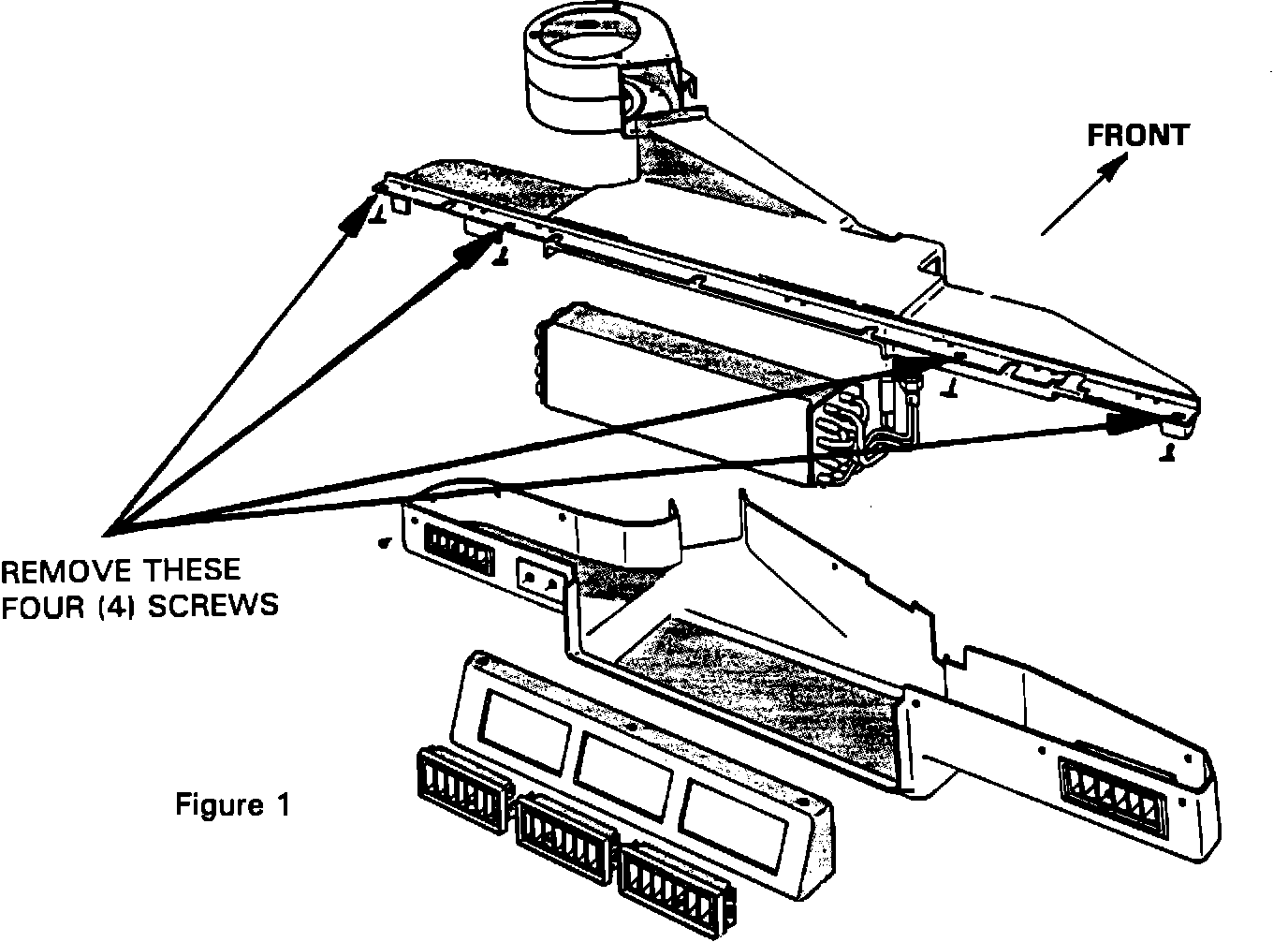

1. Remove the four screws that attach the A/C unit to the instrument panel (IP) (Figure 1).
2. Lower the A/C unit to gain access to the black A/C wiring connector located on the right side of the steering column.
3. Disconnect the black wiring connector (Figure 2) and install the supplied jumper harness between the two halves of the connector.
4. Raise the A/C unit into place and install the four screws that attach the A/C unit to the IP. Verify the operation of the A/C blower.
5. Start the engine and verify that the yellow ABS light goes out after the initial bulb check cycle. If the light does not go out, diagnose and repair following normal service procedures.
B. Install Jumper Harness (Vehicles Not Equipped With Air Conditioning):

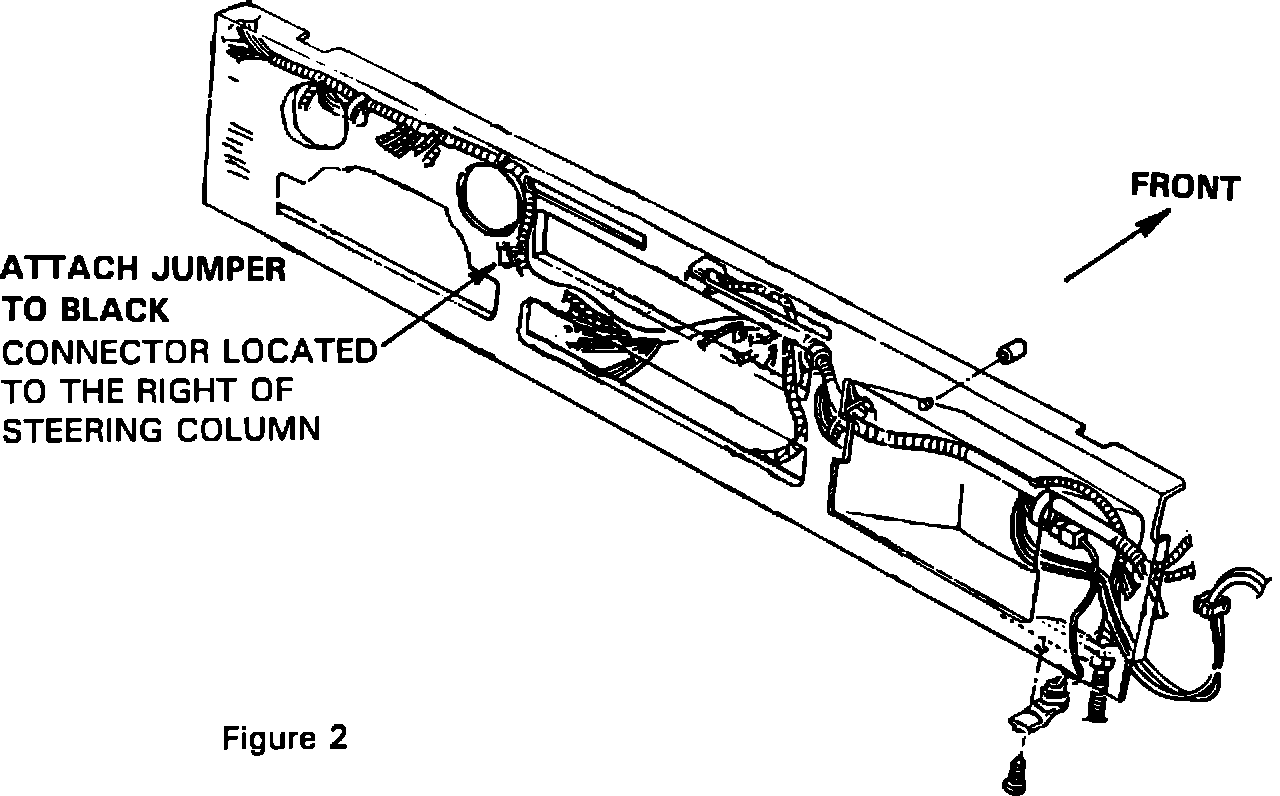

1. Locate the unused black A/C wiring connector taped to the harness under the IP located on the right side of the steering column (Figure 2).
2. Remove the protective cap from the end of the wiring connector and connect the supplied jumper harness. Install the protective cap on the other end of the jumper harness.
3. Tape the jumper harness to the IP harness.
4. Start the engine and verify that the yellow ABS light goes out after the initial bulb check cycle. If the light does not go out, diagnose and repair following normal service procedures.
Completion Reporting and Reimbursement
Claims for vehicles which have been serviced must be submitted on the DIAL System. Claims submitted will be used by Chrysler to record notification service completions and provide dealer payments.
Use one of the labor operation numbers and time allowances (see illustration).
Add the cost of the parts package plus applicable dealer allowance to your claim.
Note:
See Warranty Policy and Procedure Manual, Chapter 6, Subsection H for complete claim processing instructions.
Parts Return
Not applicable.
Vehicle Not Available
If a vehicle is not available for service for a known reason, let us know by filling out the pre-addressed Vehicle Disposition Form portion of the Owner Notification Form or describe the reason on a postcard and mail to:
Chrysler Corporation 429-10-04
P.O. Box 1919
Detroit, Michigan 48231-1919
Following the above procedures will expedite the processing of your claim.
If you have any questions or need assistance in completing this action, please contact your Zone Service Office.
CUSTOMER SATISFACTION NOTIFICATION -- ABS Brake Controller
Dear Jeep(R) Vehicle Owner:
Because the satisfaction of our customers is very important to Chrysler, we are requesting owners of certain 1993 and 1994 model Jeep(R) Wrangler vehicles equipped with anti-lock brakes to return them to their dealers for a special service. Your vehicle, identified on the enclosed form, is affected. The service and required parts as described in this letter will be provided free of charge.
The service is needed to prevent failure of an internal component in the Anti-lock Brake System (ABS) controller. This would cause a fuse to blow, resulting in lighting of the yellow ABS lamp on the instrument panel and disabling the ABS system. The normal braking system will continue to operate properly.
To correct the condition, your dealer will install a wiring jumper harness. The work will take about one-half hour to complete. However, additional time may be required depending on how dealer appointments are scheduled and processed. To arrange for this free service:
Contact your dealer as soon as possible to schedule a service appointment.
Take the enclosed Owner Notification Form with you at the time of your appointment and give it to your dealer. The form identifies the vehicle and the service that is required.
If you have any problem obtaining the needed service, please contact the Chrysler Zone Service Office in your area as shown in the listing on the reverse side of this letter. A Zone representative will arrange for prompt servicing of your vehicle.
We regret any inconvenience that this action may cause you. However, we believe that this special service will help to ensure your continuing satisfaction with your Jeep Wrangler.
Thank you for your attention to this important matter.
