Engine Controls - Speed Control/No Start Test Revisions

NUMBER: 26-03-98

GROUP: Miscellaneous

DATE: March, 1998

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

MODELS:
1996 2.5L/3.9L/4.0L/5.2L/5.9L/8.0L - AB/AN/BR/XJ/ZJ Powertrain Diagnostic Manual - Publication Number 81-699-96103

DESCRIPTION OF CHANGES

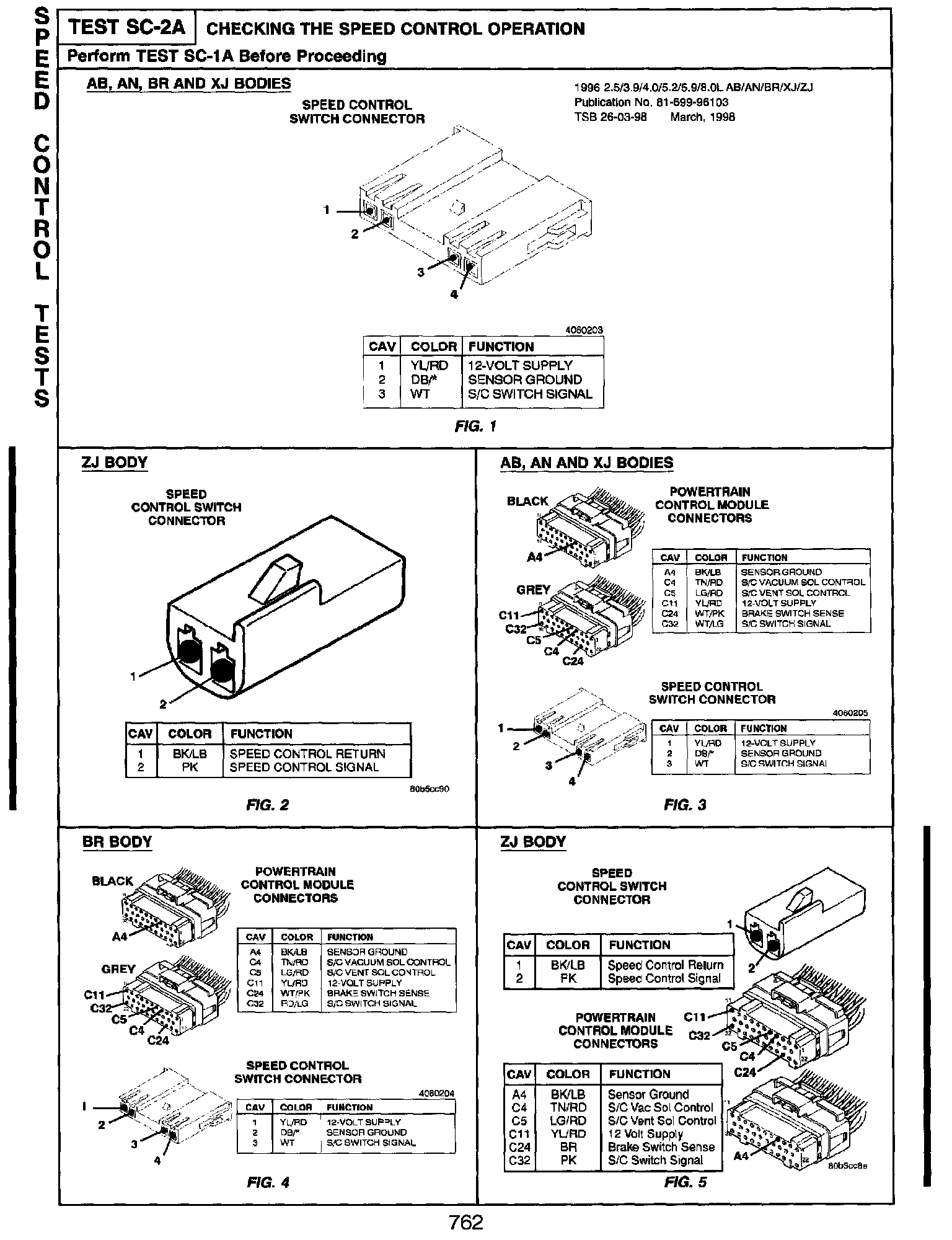

Revision to the Speed Control Test





762

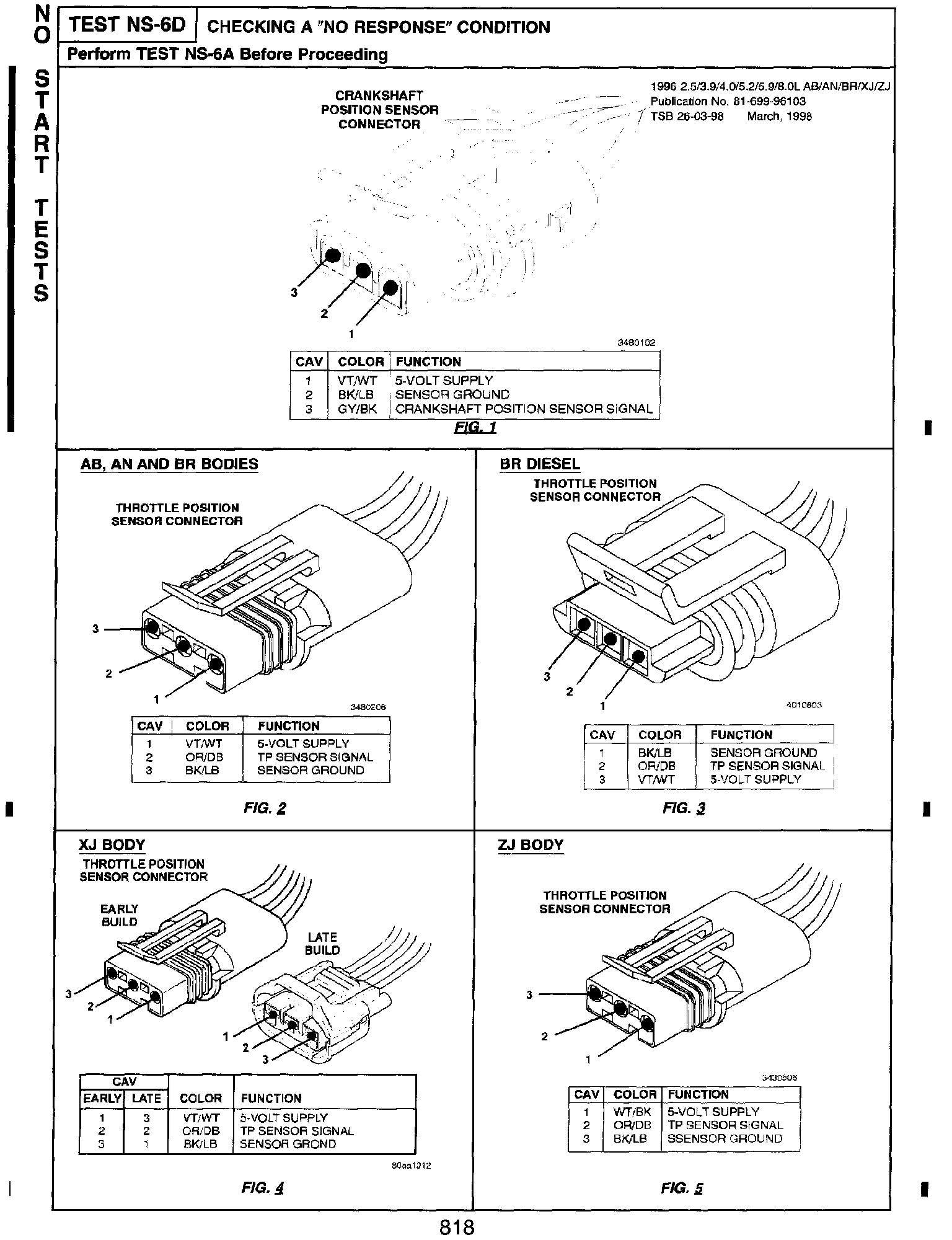

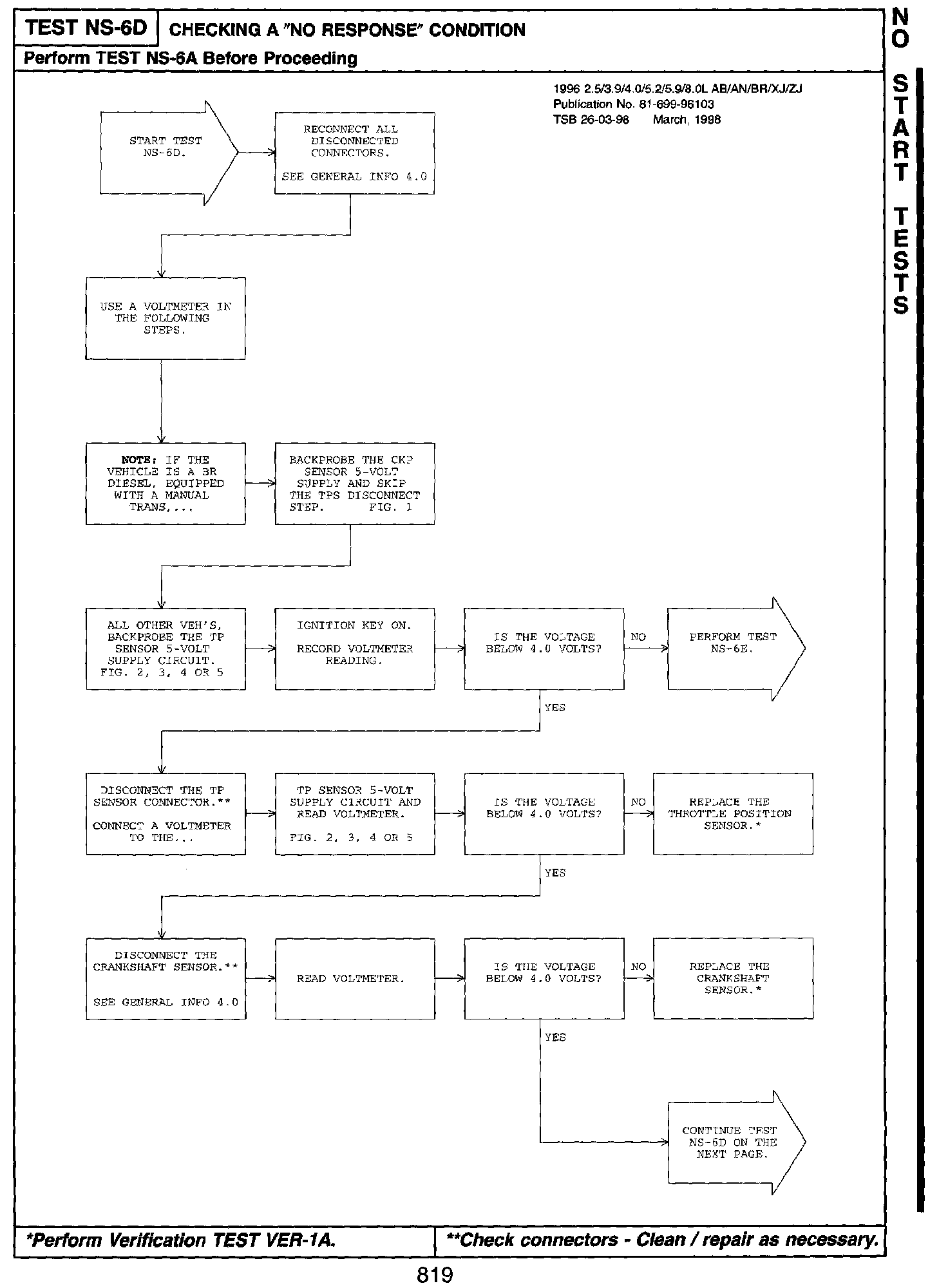

Revision to the No Start Test





818





819
