Automatic Transmission/Transaxle

Park/Neutral:



Drive-First Gear:



Drive-Second Gear:



Drive-Third Gear:



Drive-Third Gear (Converter Clutch Applied):



Part Throttle 3-2 Kickdown:



During Full Throttle 3-2 Downshift (Passing Gear):



Manual Second Gear (2):



Manual First Gear (1):

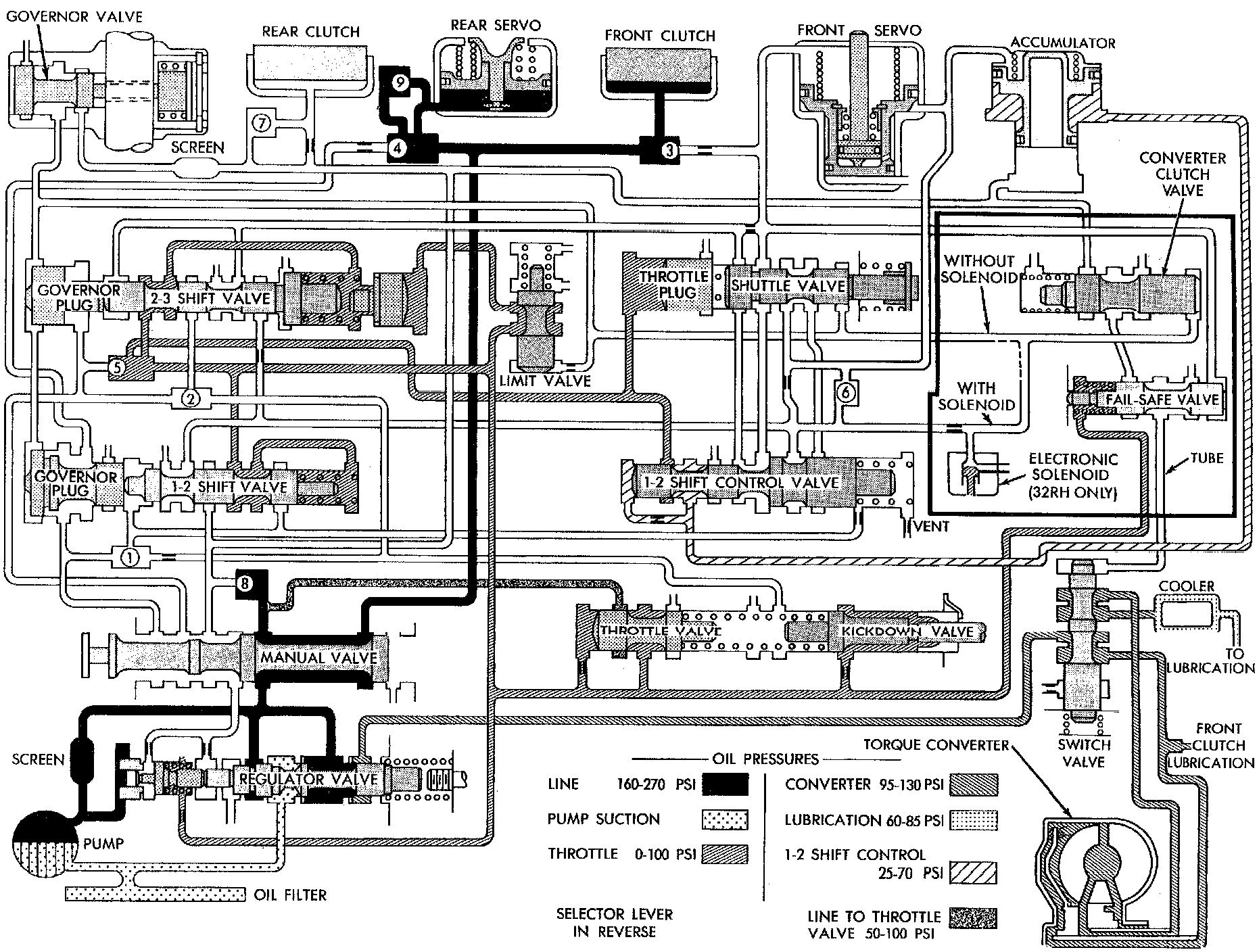

Reverse:

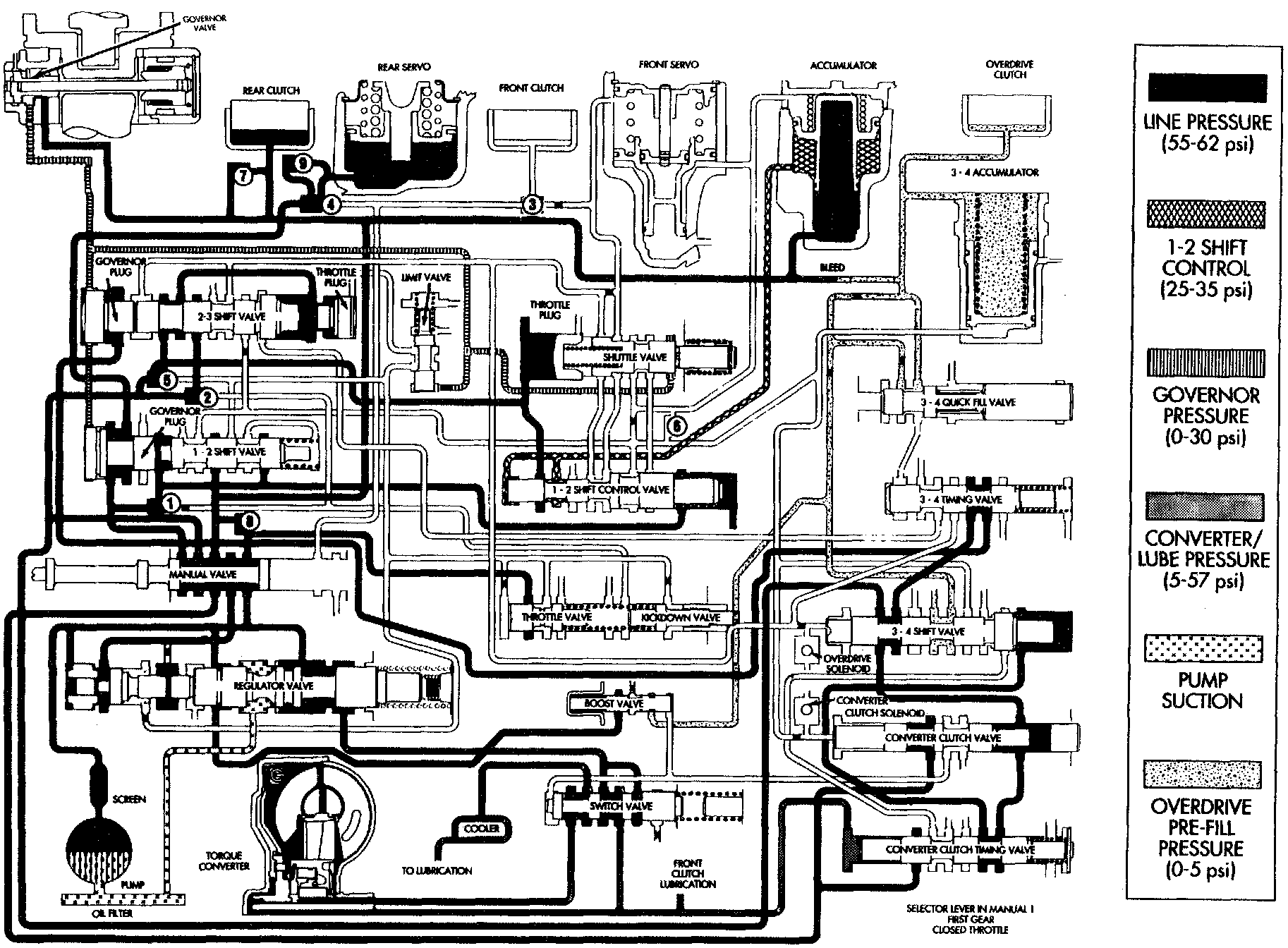

Manual First Gear (1):



Manual Second Gear (2):
