Blower Motor: Service and Repair

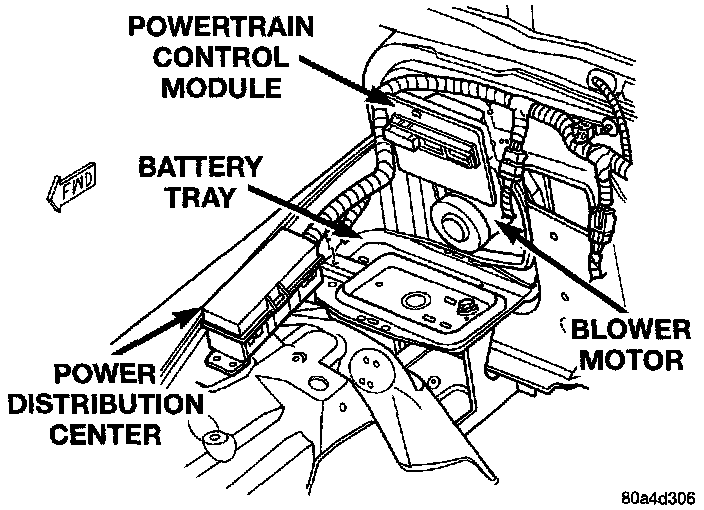

Fig 26 Blower Motor Replacement:






REMOVAL
1. Remove the battery from the battery tray.
2. Remove the three screws securing the Powertrain Control Module (PCM) to the mounting bracket on the engine compartment side of the dash panel. Move the PCM away from the blower motor opening in the dash panel.
3. Unplug the blower motor wiring connector.
4. Remove the three blower motor and wheel assembly mounting screws.
5. Remove the blower motor and wheel from the heater-A/C housing.
6. Remove the blower motor wheel retainer clip and remove the wheel from the blower motor shaft


INSTALLATION
1. Install the blower motor and wheel into the heater-A/C housing.
2. Install and tighten the three blower motor mounting screws.
3. Connect the blower motor wiring connector.
4. Install the PCM to the mounting bracket with three screws.
5. Install the battery in the battery tray.
