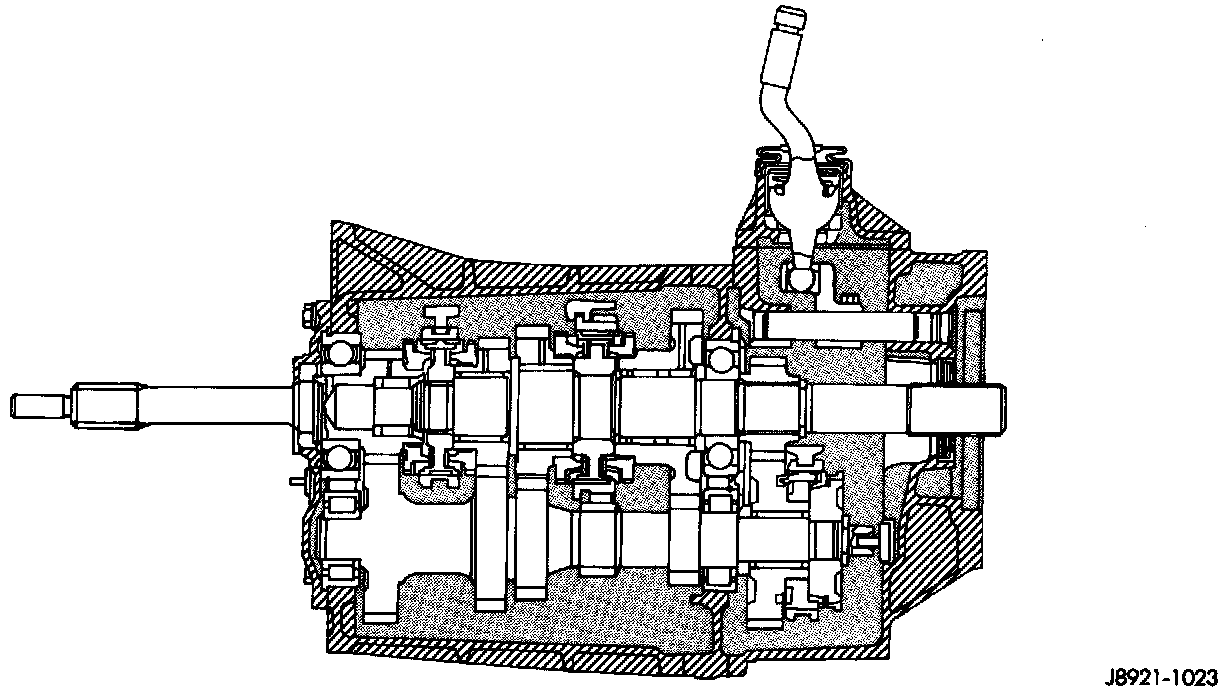

Fig. 1 AX-15 Manual Transmission:

GENERAL INFORMATION
The AX 15 is a 5-speed, synchromesh, manual transmission. Fifth gear is an overdrive range with a ratio of 0.79:1. The shift mechanism is integral and mounted in the shift tower portion of the adapter housing. An adapter housing is used to attach the transmission to the transfer case.

Fig. 2 Identification Code Number Location:

TRANSMISSION IDENTIFICATION
The AX-15 identification code numbers are on the bottom surface of the transmission gear case. The first number is year of manufacture. The second and third numbers indicate month of manufacture. The next series of numbers is the transmission serial number.

Fig. 3 Shift Pattern:

TRANSMISSION SHIFT PATTERN
The AX-15 shift pattern is shown. First and second and third and fourth gear ranges are in line for improved shifting. Fifth and reverse gear ranges are also in line at the extreme right of the pattern. The AX- 15 is equipped with a reverse lockout mechanism. The shift lever must be moved through the Neutral detent before making a shift to reverse.
