With Automatic Transmission

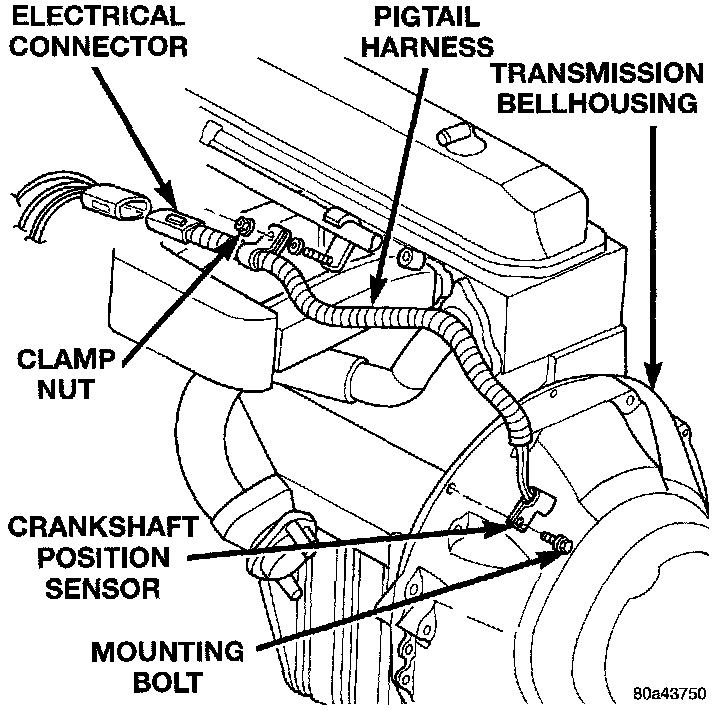

Fig. 38 Crankshaft Position Sensor Auto. Trans.:




CRANKSHAFT POSITION SENSOR

The crankshaft position sensor is mounted to the transmission bellhousing at the left/rear side of the engine block (Fig. 38).

On engines equipped with an automatic transmission, the sensor is attached with one bolt.

REMOVAL

1. Near the rear of the intake manifold, disconnect the pigtail harness (electrical connector) from the main electrical harness.

2. Remove the nut holding sensor harness wire clip to fuel rail mounting stud.

3. Depending upon application, remove either the sensor mounting bolt(s) or nuts.

4. Remove the sensor.

5. Remove clip from sensor wire harness.


INSTALLATION

1. Install the sensor flush against the opening in the transmission housing.

2. On engines equipped with an automatic transmission: Install and tighten the sensor mounting bolt to 7 Nm (60 in. lbs.) torque.

3. Connect the sensor pigtail harness electrical connector to main wiring harness.

4. Install clip on sensor wire harness.

5. Install clip over fuel rail mounting stud.

6. Install clip mounting nut.
