Ignition Switch Installation

IGNITION SWITCH INSTALLATION

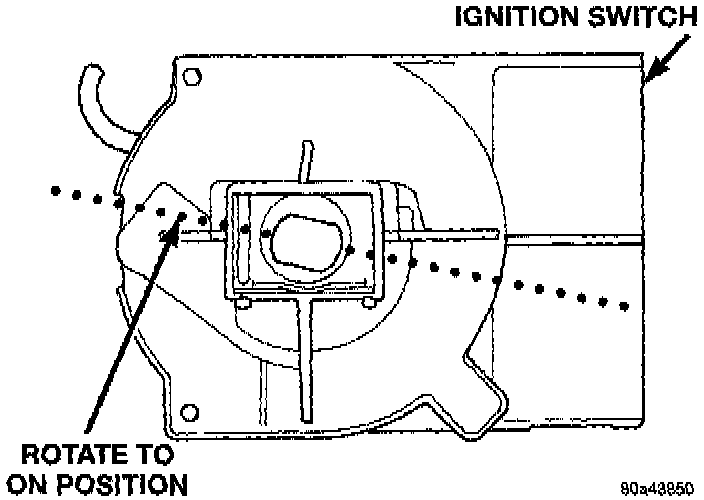

Fig. 55 Switch In ON Position:

1 Before installing ignition switch, rotate the slot in the switch to the ON position.

2 Position switch to column and install tamper proof screw. Tighten screw to 3 Nm (26 in. lbs.).

3 Connect two electrical connectors to rear of ignition switch. Make sure that locking tabs are fully seated into wiring connectors.

4 Install steering column lower cover.
