Windshield Washer Pump: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

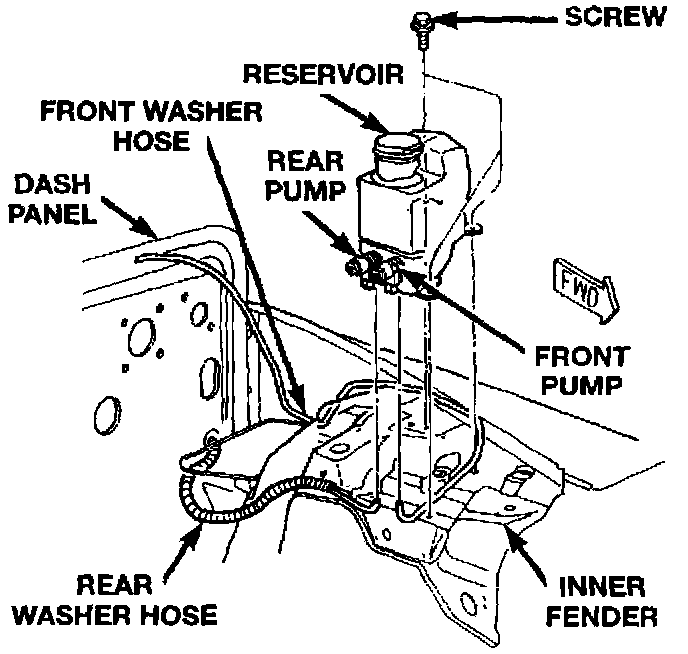

Washer Reservoir & Pumps Removal/Install:

2. Remove the three screws securing the washer reservoir to the inner fender.
3. Lift the reservoir far enough to unplug the washer pump wiring connectors.
4. Disconnect the hoses from the washer pumps, and drain the solvent from the reservoir into a clean container for reuse.
5. Remove the pumps from the reservoir. They are press-fit into the reservoir grommet seals.
6. Reverse the removal procedures to install.
