With Automatic Transmission

Crankshaft Position Sensor:

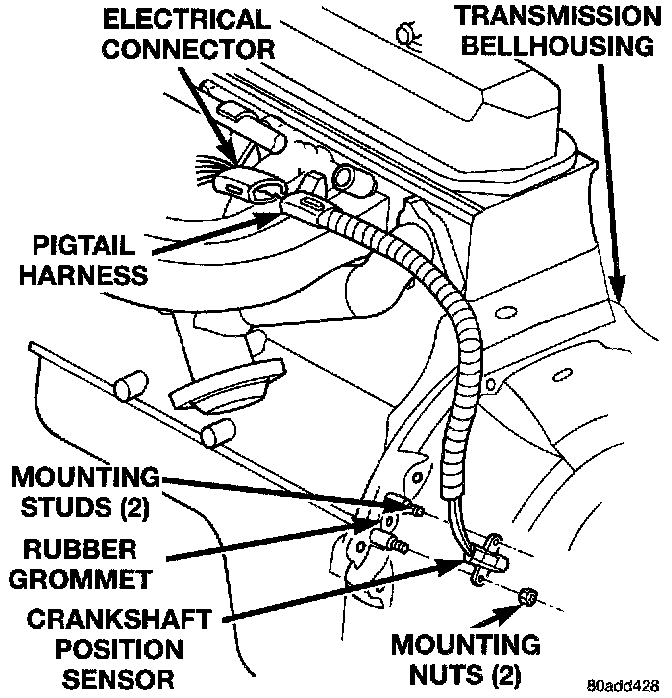

The crankshaft position sensor is mounted to the transmission bellhousing at the left/rear side of the engine block.

The sensor is attached with two nuts.

REMOVAL
1. Near rear of intake manifold, disconnect pigtail harness (electrical connector) from main electrical harness.
2. Depending upon application, remove either sensor mounting bolt(s) or nuts.
3. Remove sensor from engine.

INSTALLATION
1. Install and tighten two sensor mounting nuts to 19N.m(14 ft. lbs.) torque.
