Cruise Control Vacuum Reservoir: Service and Repair

REMOVAL

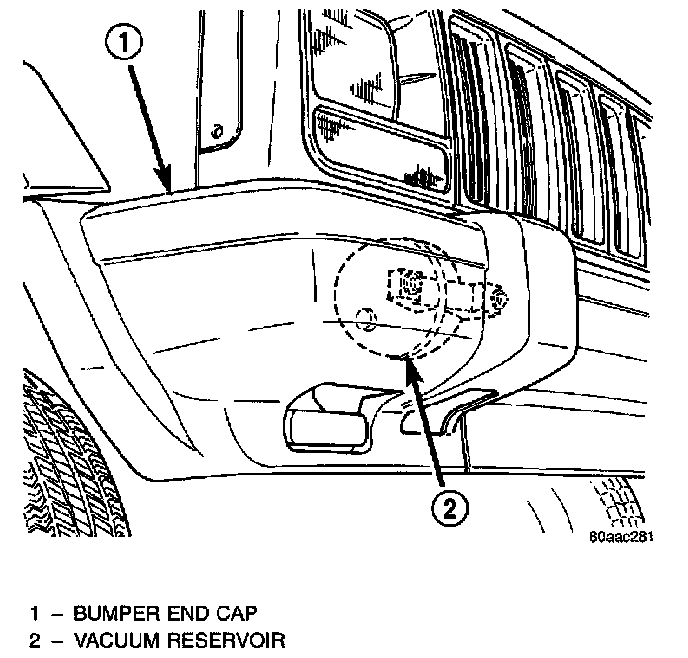

Vacuum Reservoir Location:

1. Remove front bumper end cap.

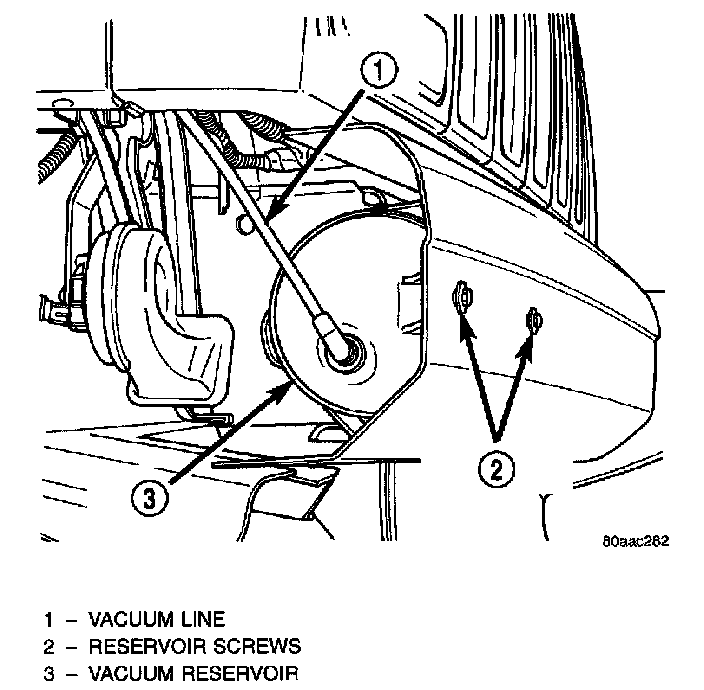

Vacuum Reservoir Remove/Installation:

2. Remove vacuum line at reservoir.
3. Remove 2 reservoir mounting screws.
4. Remove reservoir from bumper bar.

INSTALLATION
1. Position reservoir to bumper bar and install mounting screws. Tighten screws to 8 N.m (72 in. lbs.) torque.
2. Install vacuum line to reservoir
3. Install front bumper end cap.
