Fog/Driving Lamp: Service and Repair
REMOVAL 1.
Disconnect the
fog lamp wire harness connector.

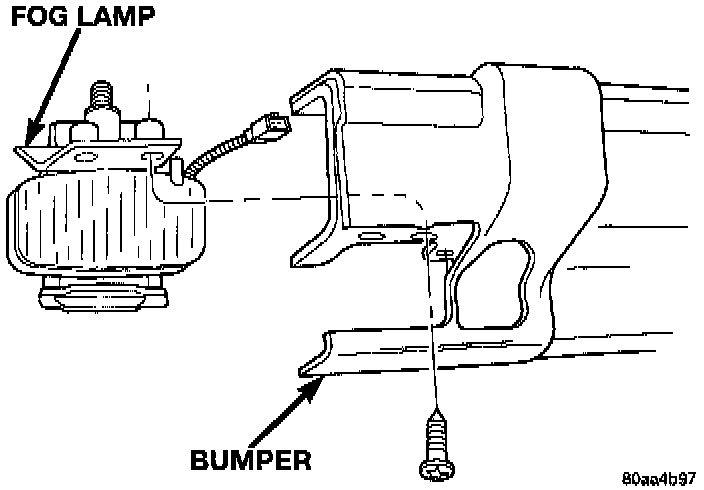

Fog Lamp:
2.
Remove the screws attaching the
fog lamp to the support.
3.
Separate the
fog lamp from the vehicle.
INSTALLATION 1.
Position the
fog lamp in the support bracket and install the screws.
2.
Connect the
fog lamp wire harness connector.
